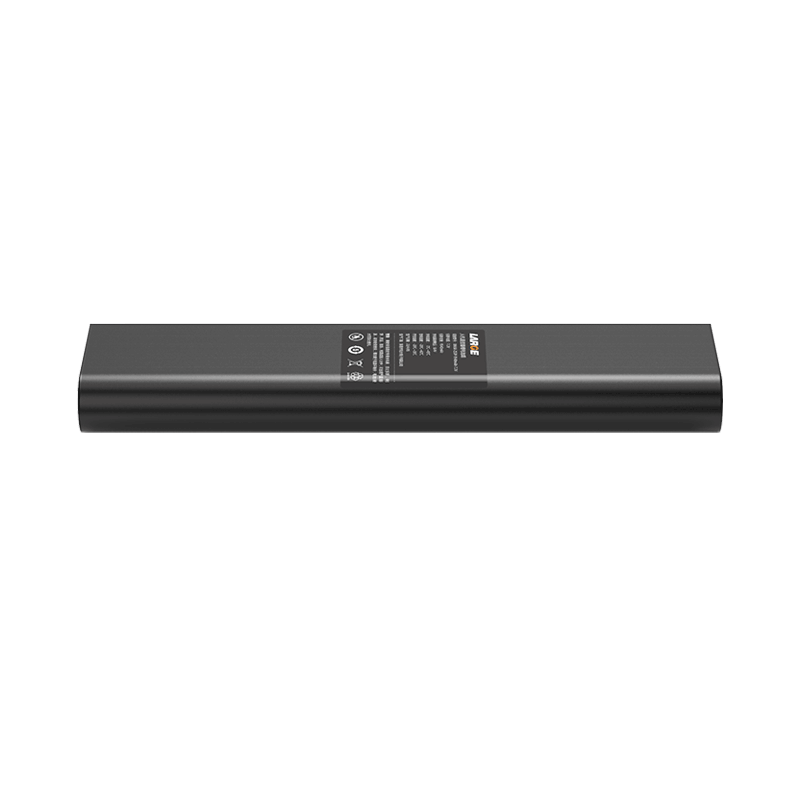

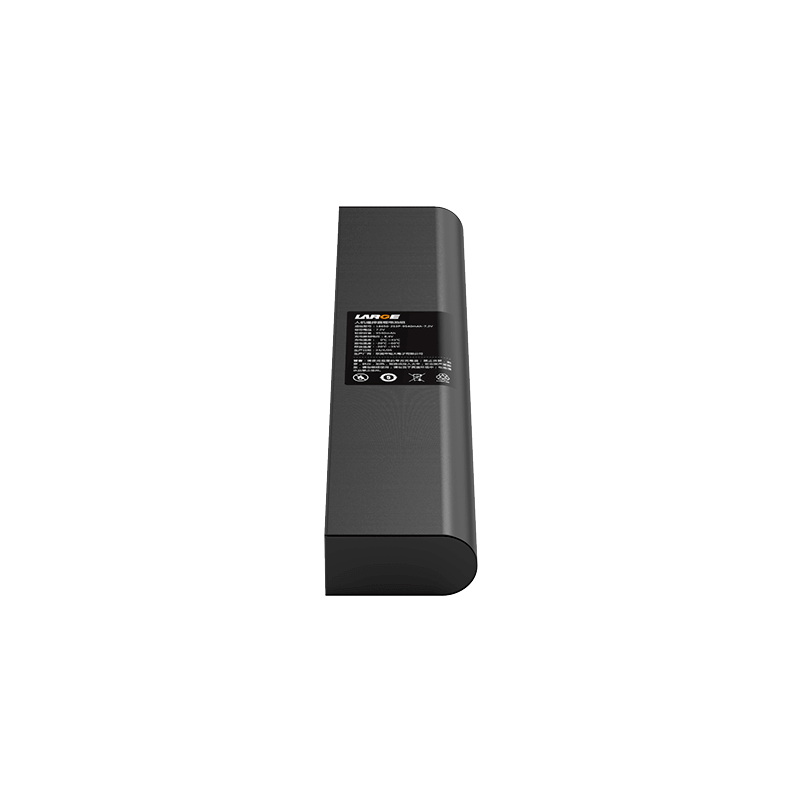

Custom Lithium ion Battery Pack
Product number: 06DQ067-01
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-3S2P-3700mAh-10.8V
Product size: 200*43*20mm (Max)
Nominal voltage: 10.8V
Nominal capacity: 6700mAh
Finished internal resistance: ≤200mΩ
Charging voltage: 12.6V
Charging current: ≤1.0A
Discharge current: ≤5.0A
Discharge cut-off voltage: 9.0V
Battery weight: 310g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Application: Medical stimulator, medical equipment
Product Features
1.Blue PVC heat shrink film package is simple and reliable,and easy to install;
2.The battery pack is protected by special battery cell epoxy board and connected by special nickel sheet, which has good shock and impact resistance.
3.Adopt JST plug output mode to increase conductive reliability;
4.TI-SMBus software management chip, SMBus communication accurate data transmission, accurate temperature control, to minimize security risks;
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
