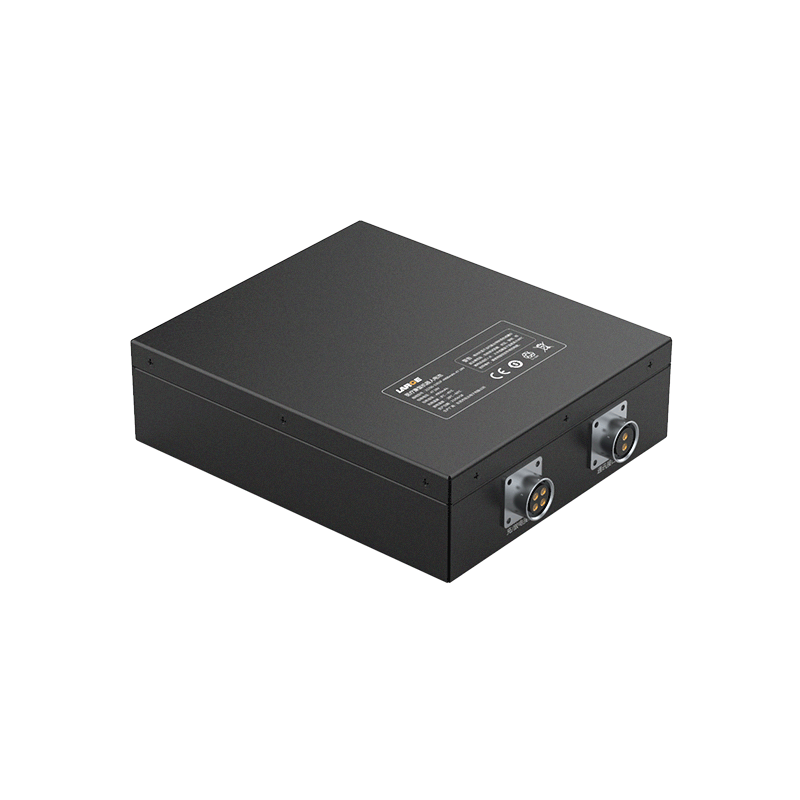

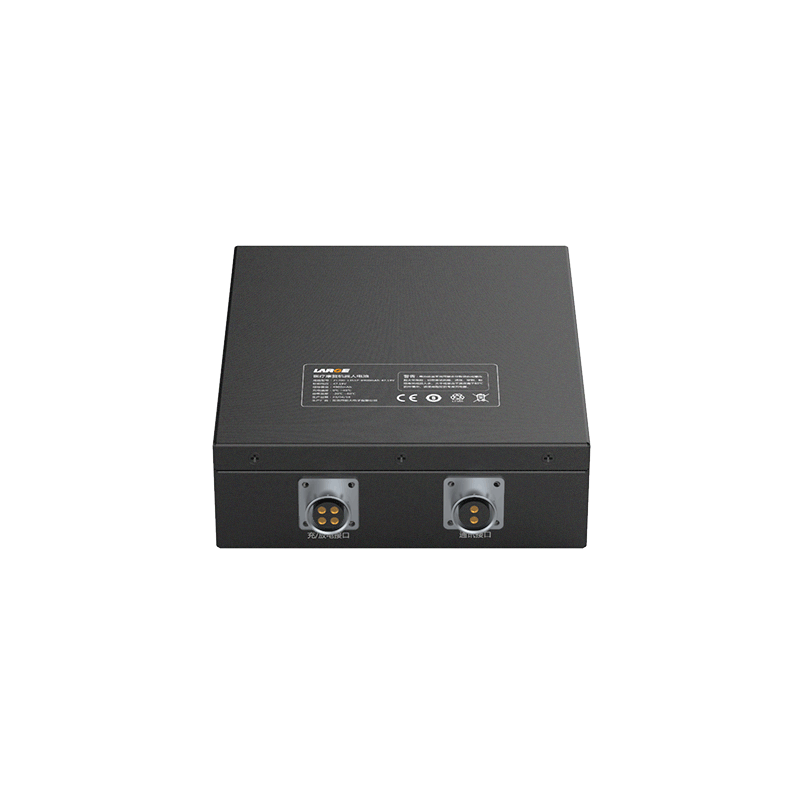

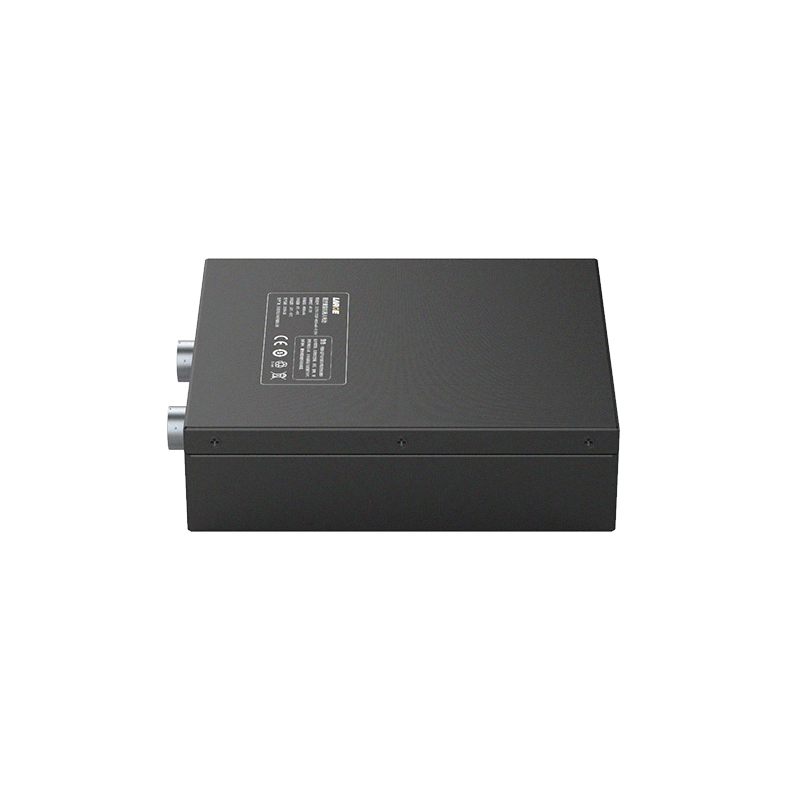

Product number: 01DQ0167-01
Battery model: 21700-4900mAh-3.63V
Battery specification: 21700-13S1P-4900mAh-47.19V
Product size: 210*180*60mm (Max)
Nominal voltage: 47.19V
Nominal capacity: 4900mAh
Finished internal resistance: ≤300mΩ
Charging voltage: 54.6V
Charging current: ≤2.3A
Discharge current: ≤4.7A
Discharge cut-off voltage: 35.1V
Battery weight: 1200g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: ABS+PC case aluminum alloy case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Application: Rehabilitation robot equipment, robot
Product Features
1.Aluminum alloy shell increases the reliability and firmness of the battery;
2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.
3.Aviation plug output: adopt aviation plug output mode to increase electrical reliability;
4.Battery protection management: Use special lithium battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions,to eliminate safety hazards;
5.Data communication management: 485 communication accurate data transmission, CAN bus, accurate temperature control, real-time battery status monitoring and control to minimize safety risks;
6.BMS communication uses optocoupler isolation, the product supports 485 bus for customer optional communication, support networking, communication baud rate of 9600bps;
7.The battery pack has nice safety, good discharge performance and long cycle life;
8.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
