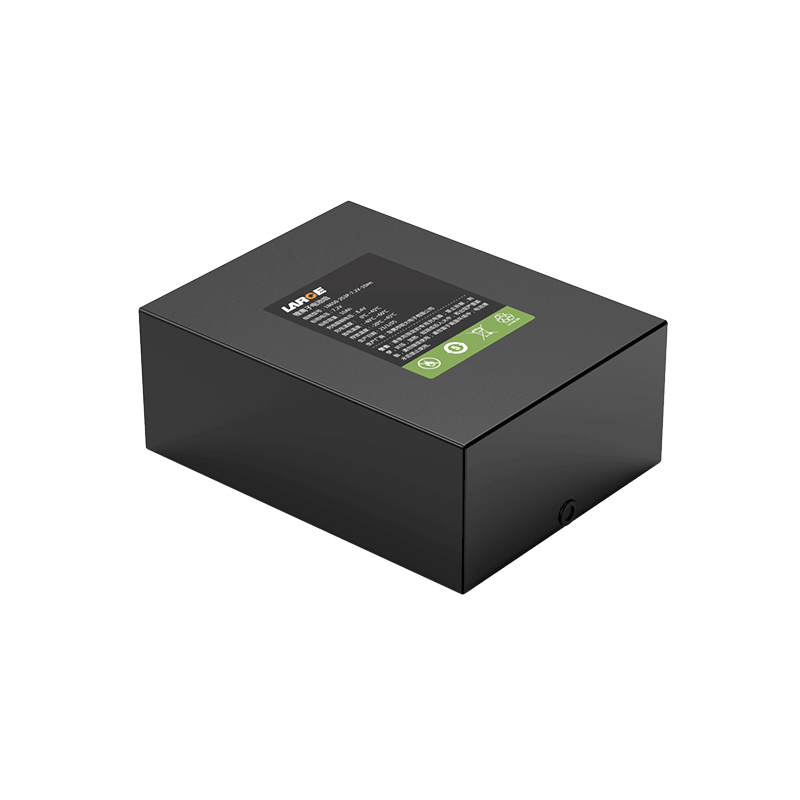

Low Temperature Charging and Discharge 26650 25.6V 16.5Ah Inspection Robot Lithium Iron Phosphate Battery

Customization | Free Battery Solution

Product Detail

Product number: 01DQ0164-01

Cell model: 26650-3300mAh-3.2V

Battery specifications: 26650-8S5P-16.5Ah-25.6V

Product size: 216*164*83mm (Max)

Nominal voltage: 25.6V

Nominal capacity: 16.5Ah

Internal resistance of finished product: ≤100mΩ

Charging voltage: 28.8V

Charging current: ≤7.0A

Discharge current: ≤16A

Discharge cut-off voltage: 16V

Battery weight: 4000g

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: Inspection robot, intelligent robot, AGV, robot

Product Features

1.Blue PVC heat shrink film package is simple and reliable, easy to install;

2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.

3.National standard wire output mode with Anderson connector inserting can increase conductive reliability;

4.Data communication management: Use 485 communication for accurate data transmission, accurate temperature control, real-time battery status monitoring and control to minimize safety risks;

5.BMS communication use optocoupler isolation. The product supports 485 bus for customer optional communication, support networking, and its communication baud rate is 9600bps

6.The battery pack is safe and has good low-temperature discharge performance. It can discharge at -40℃ and charge at -20℃. The low-temperature discharge capacity can reach more than 50% and the low-temperature charging capacity can reach more than 60%.

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
