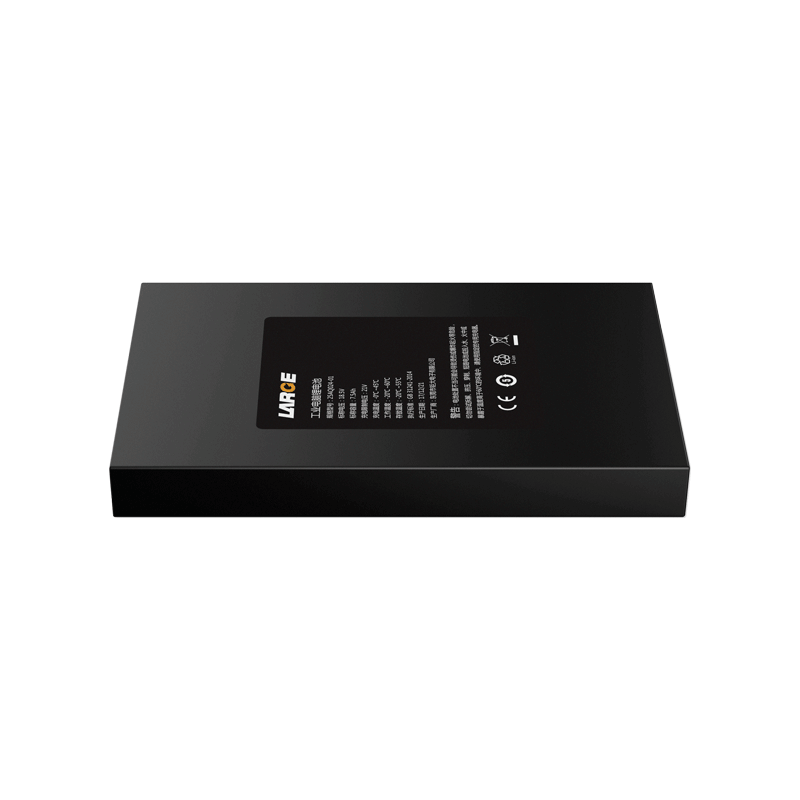

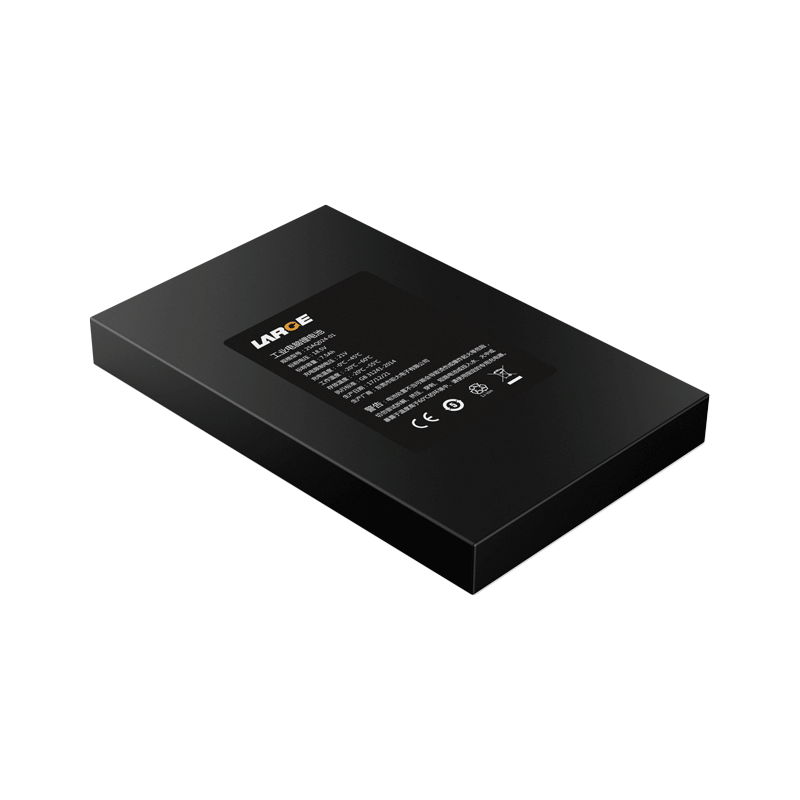

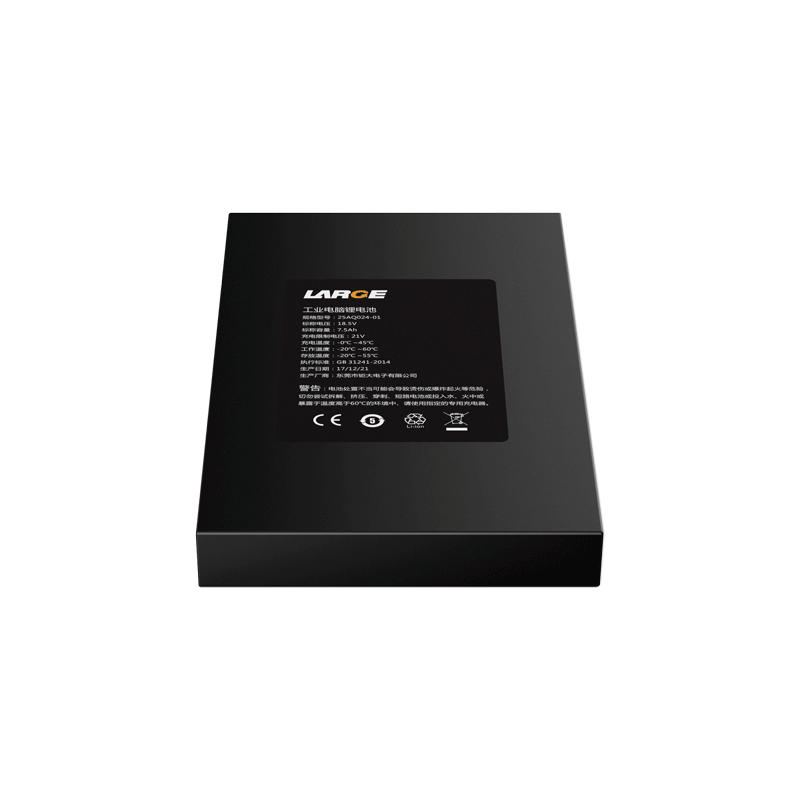

Product number: 25AQ024-01
Cell model:18650/3.7V/2.5Ah
Battery specification: 18650-5S3P/18.5V/7.5Ah
Nominal voltage:18.5V
Nominal capacity:7.5Ah
Charging voltage: 21V
Charging current: ≤2A
Discharging current: 2A
Instant discharging current: 3.0A
End-off voltage: 3.0V
Internal resistance: ≤200mΩ
Battery weight: 900g
Product dimension: 212*133*23mm(Max)
Charging temperature:0~45℃
Discharging temperature: -20~60 ℃
Storage temperature: -20~35 ℃
Battery case: blue PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
Application field: industrial computer, testing equipment
