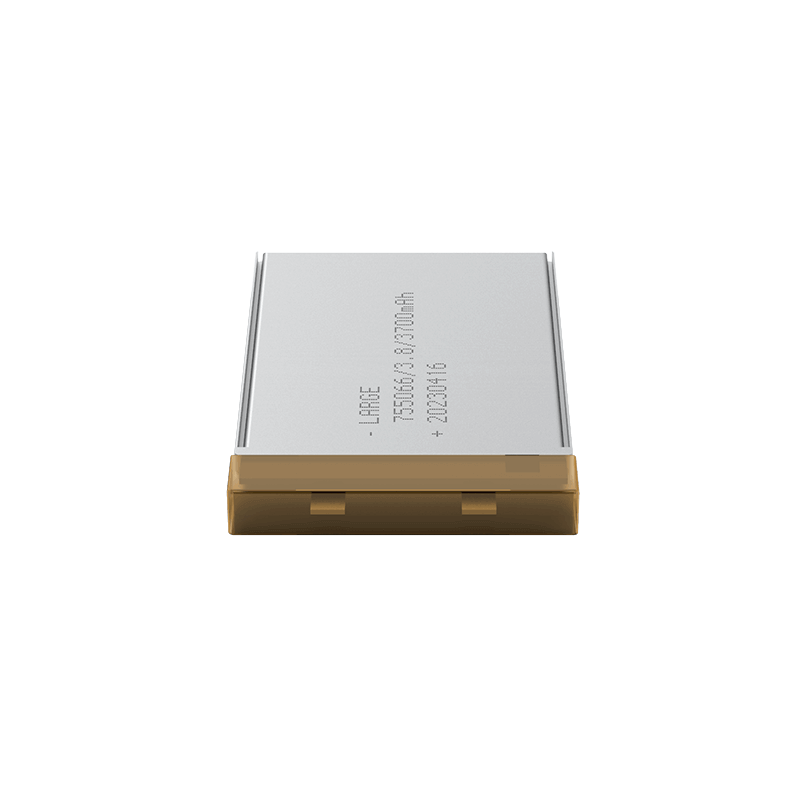

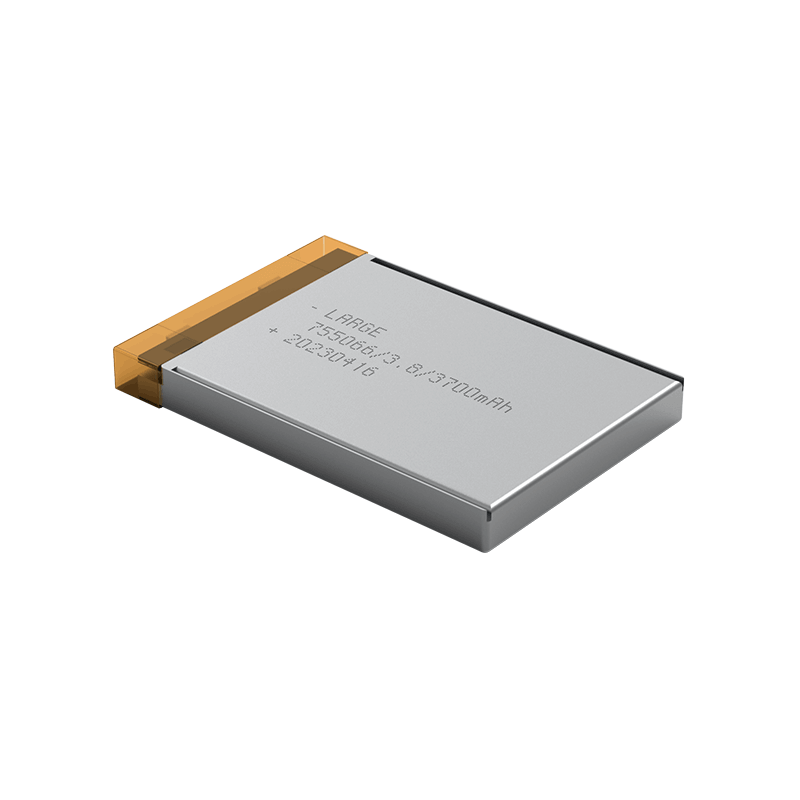

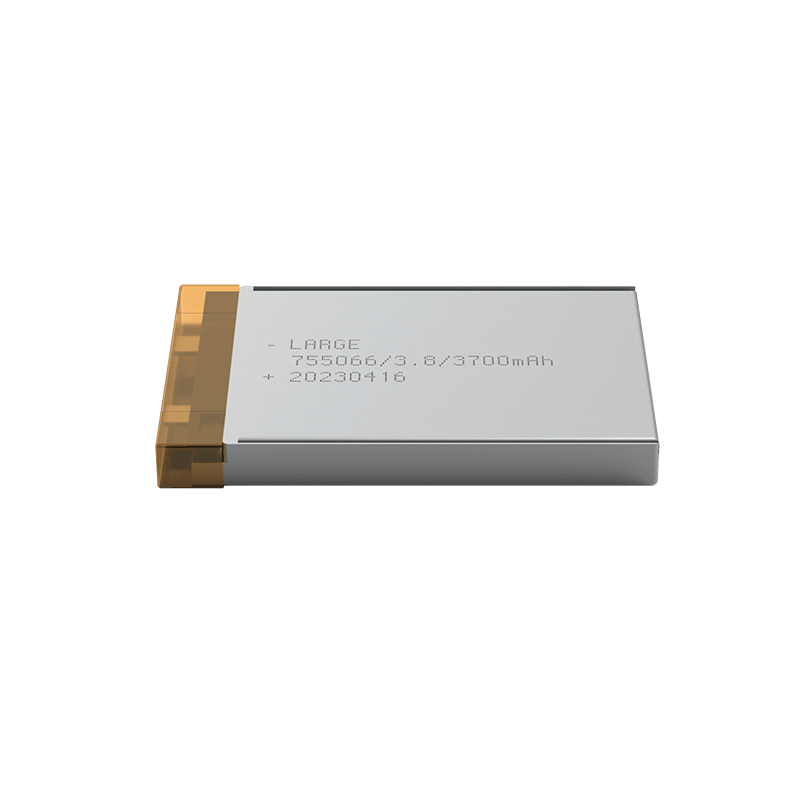

Product number: 01DQ0023-66
Battery model: 755066-3700mAh-3.8V
Battery specification: 755066-1S1P-3700mAh-3.8V
Product size: 68.5*50.5*8.5mm (Max)
Nominal voltage: 3.8V
Nominal capacity: 3700mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 4.35V
Charging current: ≤2.4A
Discharge current: ≤2.4A
Discharge cut-off voltage: 3.0V
Battery weight: 60g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: polymer simple package
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Applications: infrared equipment, temperature measuring equipment, portable testing equipment
Product Features
1.Polymer simple package is simple and reliable,and easy to install;
2.The battery pack adopts special FPC software output, special nickel plate connection with good shock and impact resistance;
3.Special connector output mode can increase the electrical reliability;
4.Battery protection management: Use special lithium battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions, to eliminate safety hazards;
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
