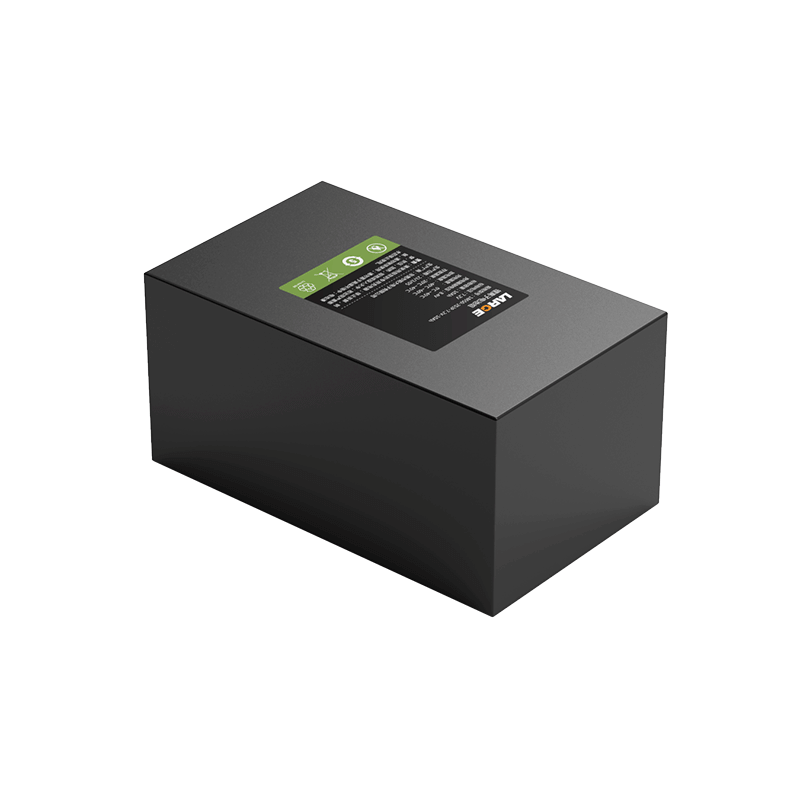

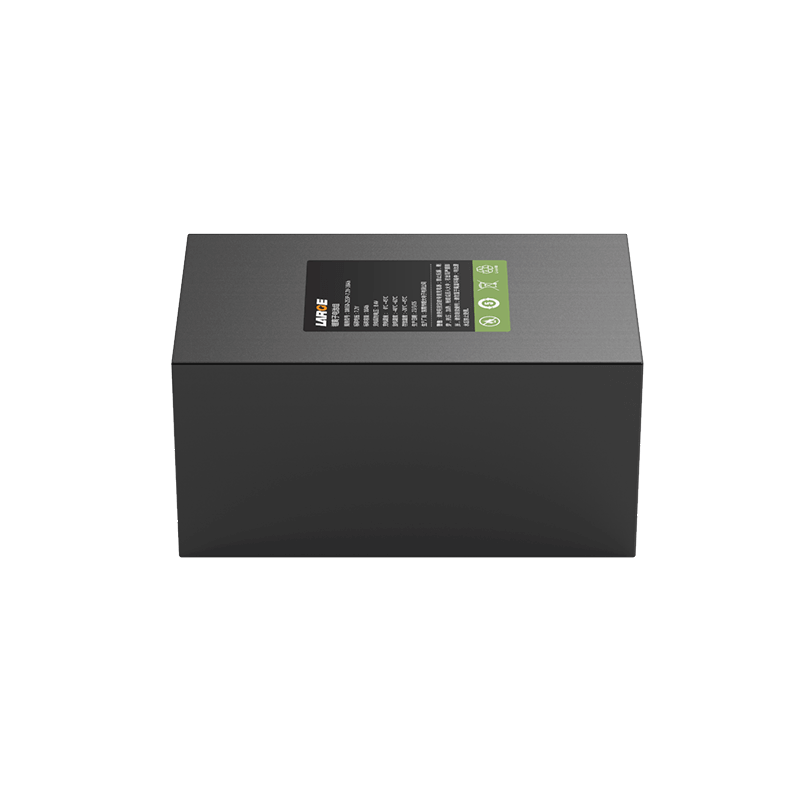

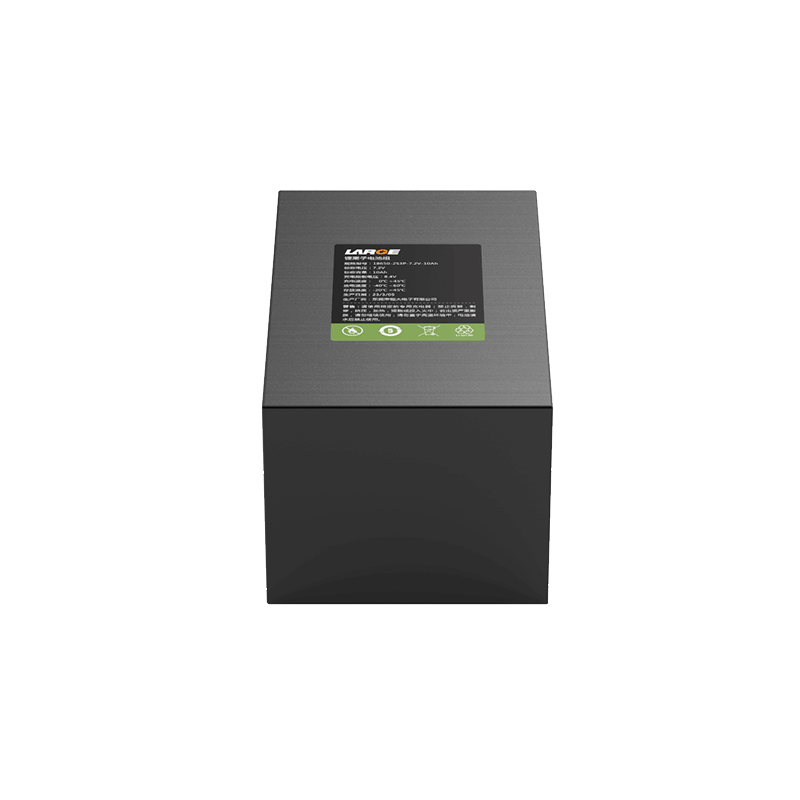

Low Temperature LiFePO4 12.8V 20Ah Smart Video Surveillance Battery

Product number: 05DQ0068-05

Cell model: 2270160-20Ah-3.2V

Battery specification: 2270160-4S1P-20Ah-12.8V

Product size: 173*105*85mm

Nominal voltage: 12.8V

Nominal capacity: 20Ah

Internal resistance of finished product: ≤100mΩ

Charging voltage: 14.4V

Charging current: ≤5.0A

Discharge current: ≤5.0A

Discharge cut-off voltage: 8.8V

Battery weight: 2200g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: power/national road and other intelligent video surveillance equipment, security equipment

Product Features

1.-20℃ charging,-40℃ discharging

2.Low temperature discharge performance is good, -40℃ discharge capacity is more than 50%;

3.Blue PVC heat shrink film package is simple and reliable,and easy to install;

4.The battery pack is protected by epoxy plate, connected by special nickel sheet and fixed by special bracket. It has good shock and impact resistance.

5.Adopt MOLEX plug output mode to increase electrical conductivity reliability;

6.Use special lithium battery protection chip, with high stability, high precision monitoring, precise control and protection functions, to eliminate security risks;

7.The battery pack has nice safety, good discharge performance and long cycle life;

8.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
