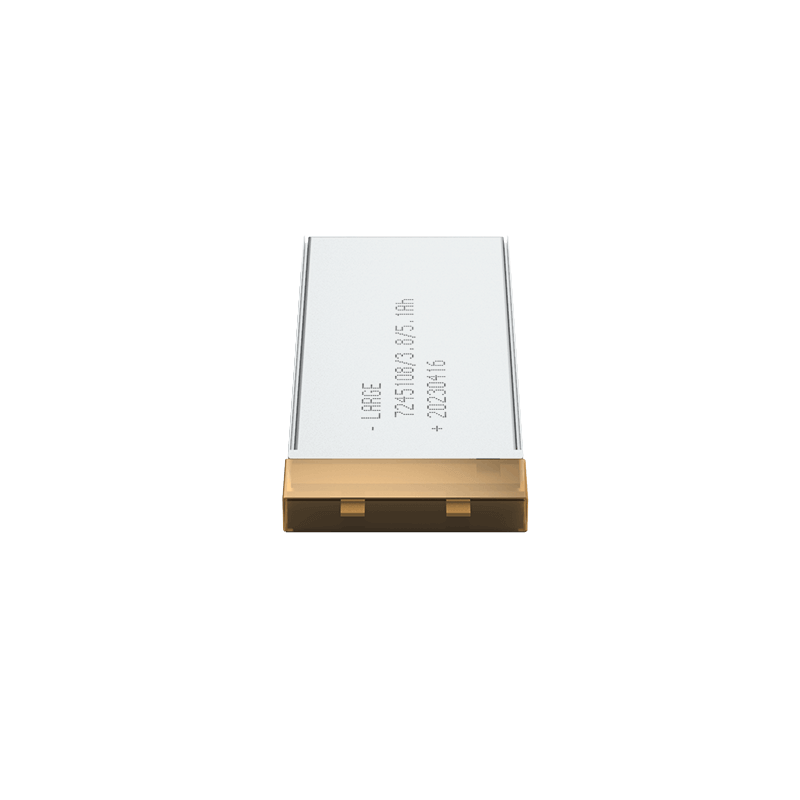

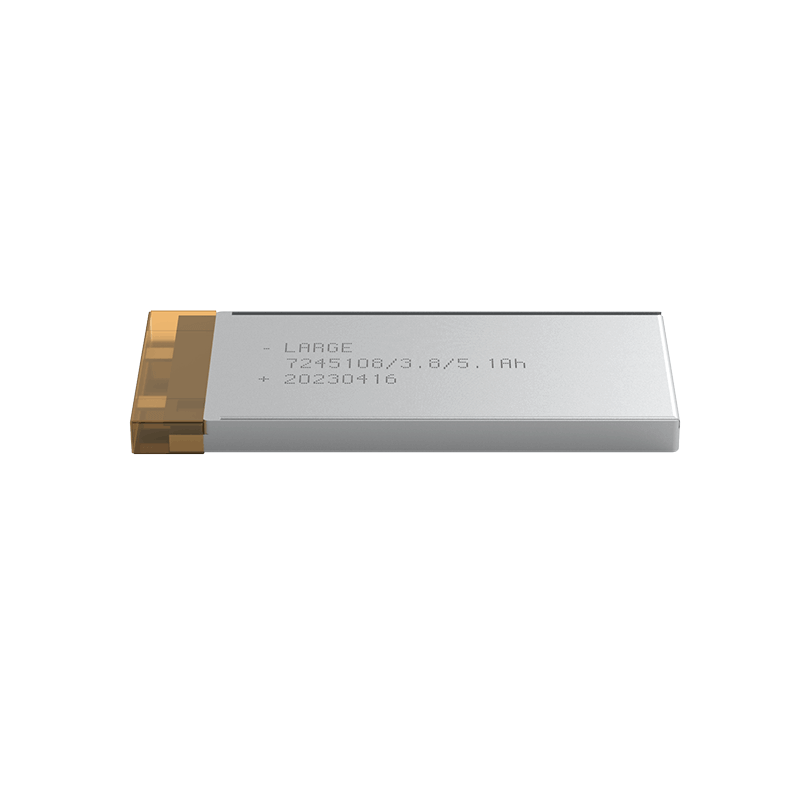

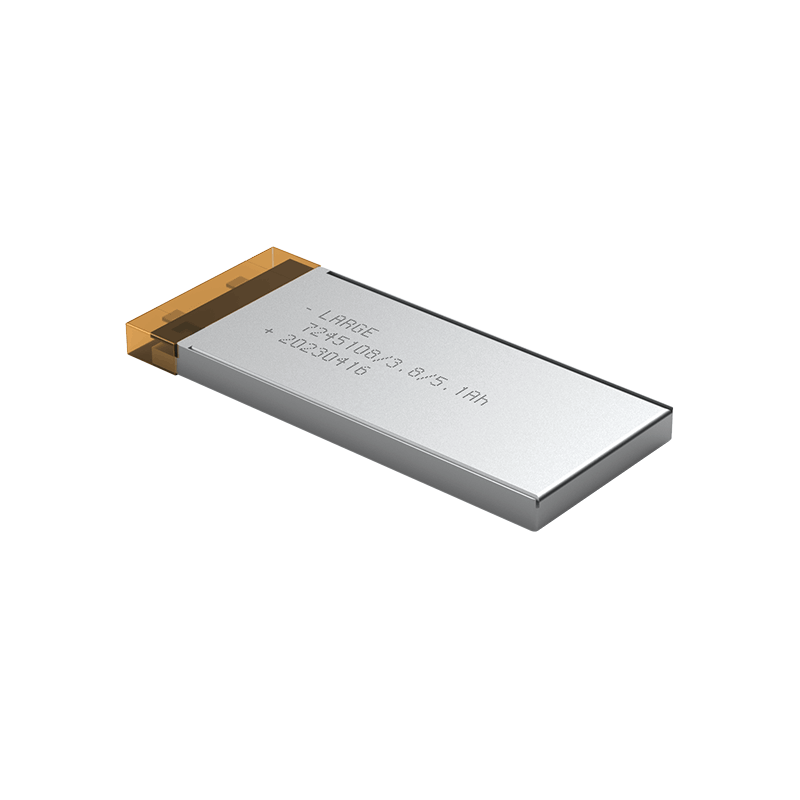

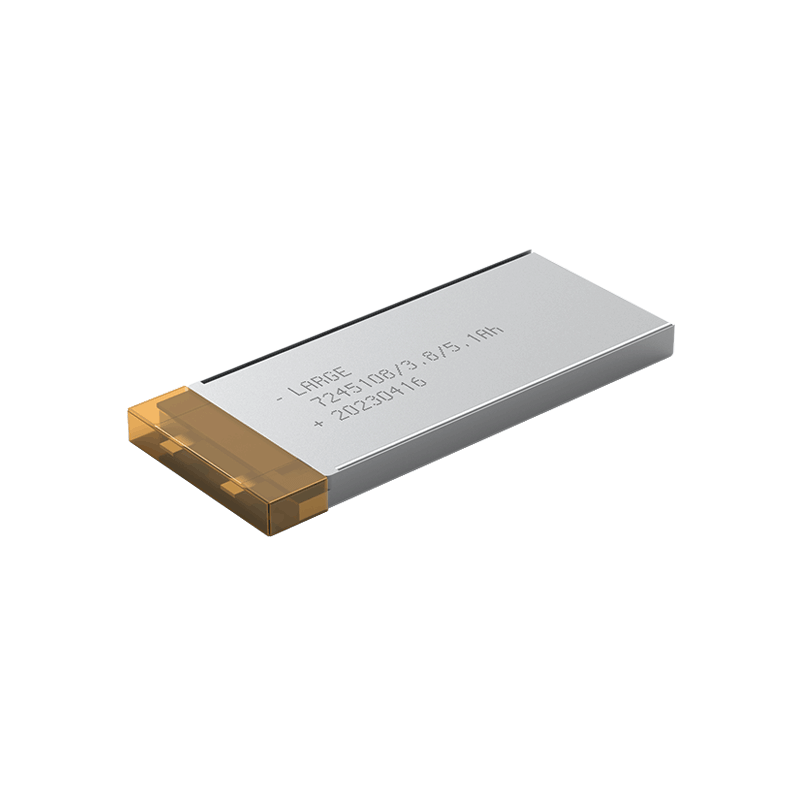

Custom Lithium ion Battery Pack
Product number: 01DQ0136-04
Cell model: 7245108-5100mAh-3.8V
Battery specification: 7245108-1S1P-5100mAh-3.8V
Product size: 110*45.5*7.7mm (Max)
Nominal voltage: 3.8V
Nominal capacity: 5100mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 4.35V
Charging current: ≤3.5A
Discharge current: ≤5.0A
Discharge cut-off voltage: 3.0V
Battery weight: 80g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: polymer simple package
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: VR imaging equipment, VR equipment
Product features
1.Polymer package is simple and reliable,and easy to install;
2.Output terminal: Adopt FPC flexible cable plug output mode to increase the electrical reliability of the plug;
3.Hardware output: Gold-plated shrapnel output to increase electrical reliability;
4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control,to minimize safety hazards;
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
