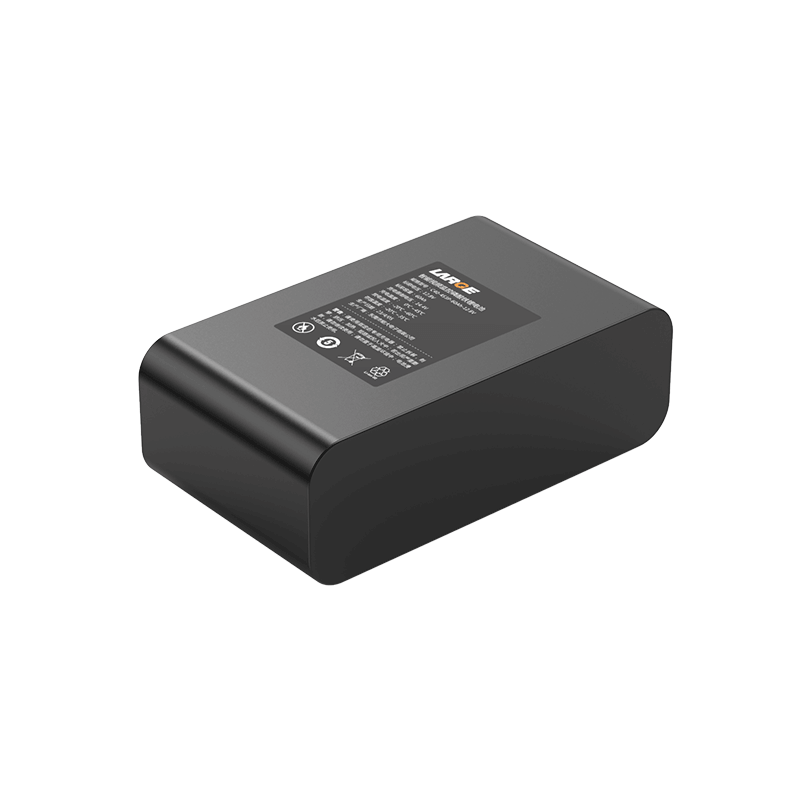

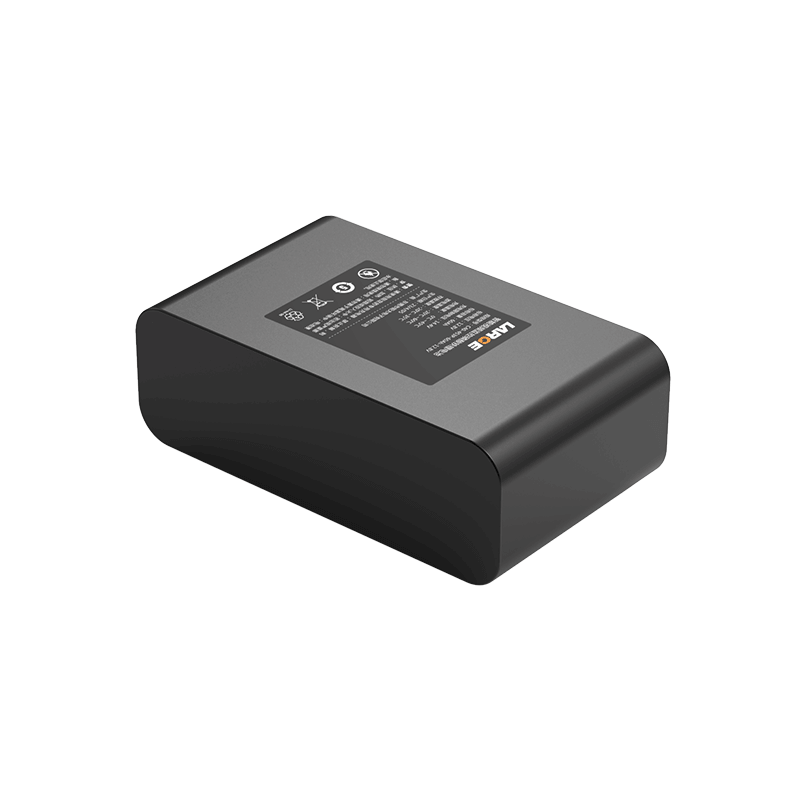

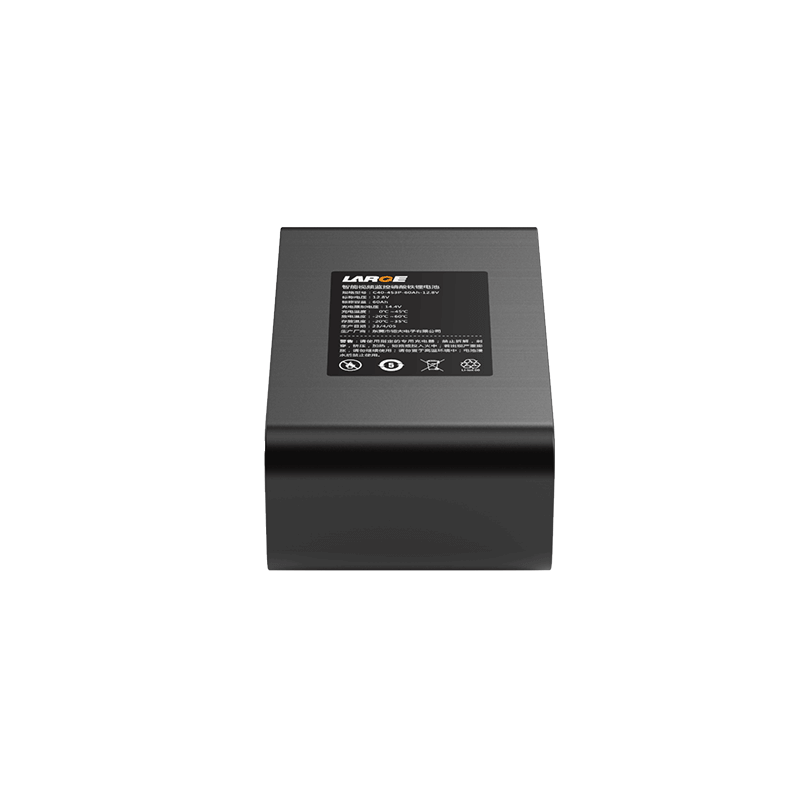

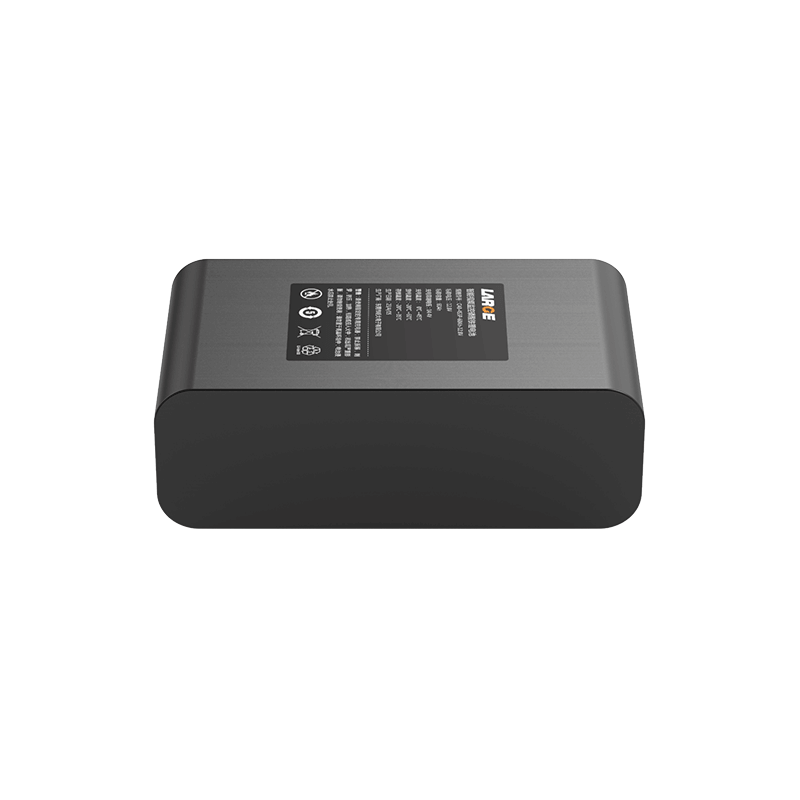

Custom Lithium ion Battery Pack
Product number: 05DQ0068-07
Cell model: C40-20Ah-3.2V
Battery specifications: C40-4S3P-60Ah-12.8V
Product size: 243*142*81mm
Nominal voltage: 12.8V
Nominal capacity: 60Ah
Finished internal resistance: ≤120mΩ
Charging voltage: 14.4V
Charging current: ≤10.0A
Discharge current: ≤10.0A
Discharge cut-off voltage: 8.8V
Battery weight: 1500g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Applications: power/national road and other intelligent video surveillance equipment, security equipment
Product Features
1.Blue PVC heat shrink film package is simple and reliable,and easy to install;
2.The battery pack is laser welded with special nickel sheet, which has good vibration resistance, shock resistance and connection performance.
3.Adopt MOLEX plug output mode to increase electrical conductivity reliability;
4.Use special lithium battery protection chip, with high stability, high precision monitoring, precise control, temperature protection and other functions, to eliminate safety hazards;
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
