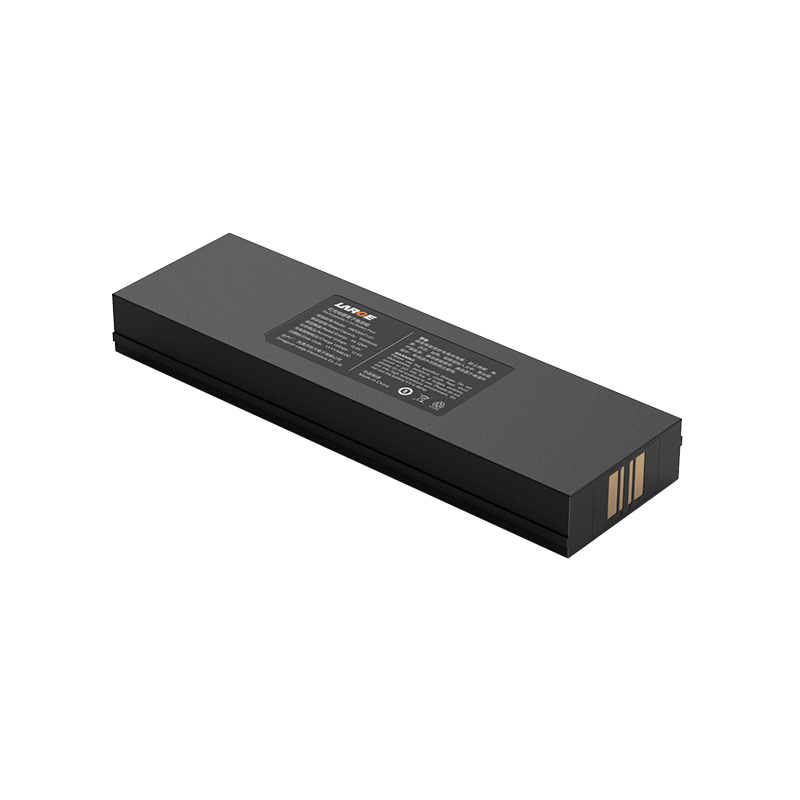

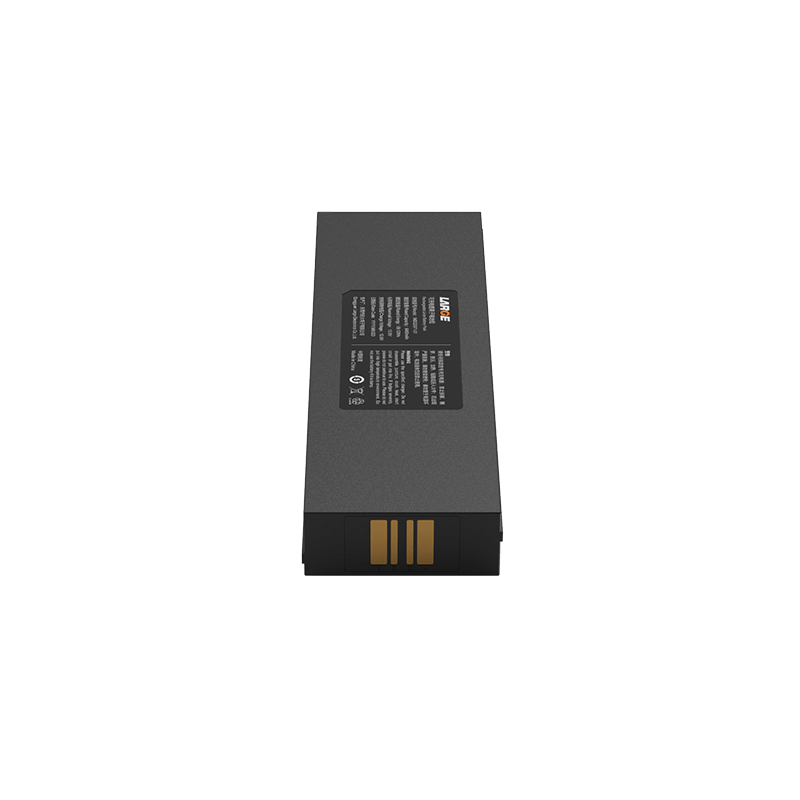

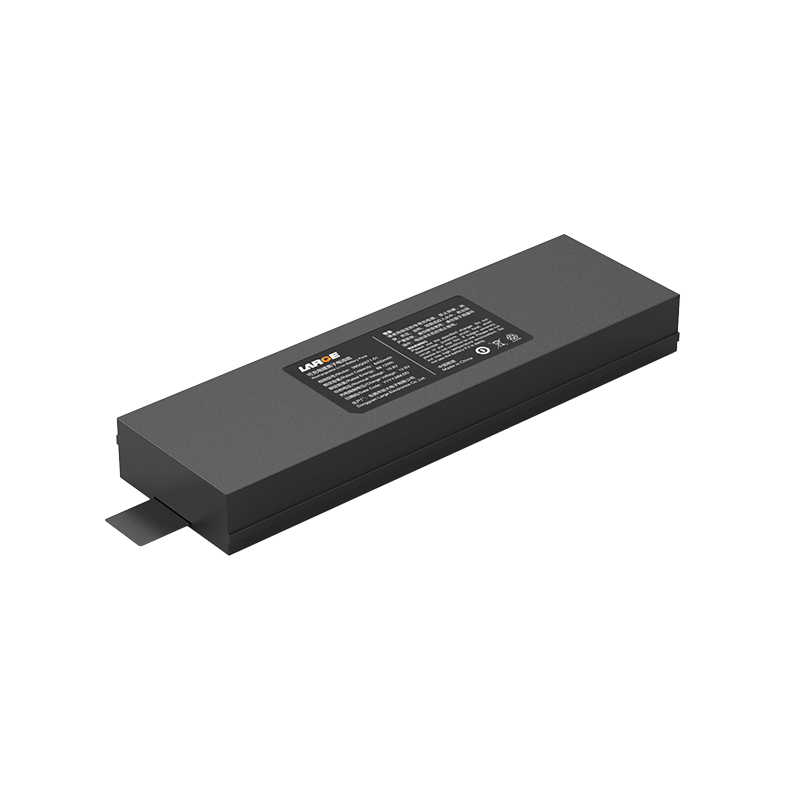

Custom Lithium ion Battery Pack
Product number: 08DQ0071-01
Battery model: 18650-3.6V-3350mAh
Battery specification: 18650-3S2P-10.8V-6.7Ah
Product size: 200±0.5mm ×60±0.3mm×23±0.3mm
Nominal voltage: 10.8V
Nominal capacity: 6.7Ah
Charging voltage: 12.6V
Charging current: 2.5A
Discharge current: 2.5A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤180mΩ
Battery weight: 450g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: plastic case
Communication protocol: SMBUS
Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Built-in battery
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
