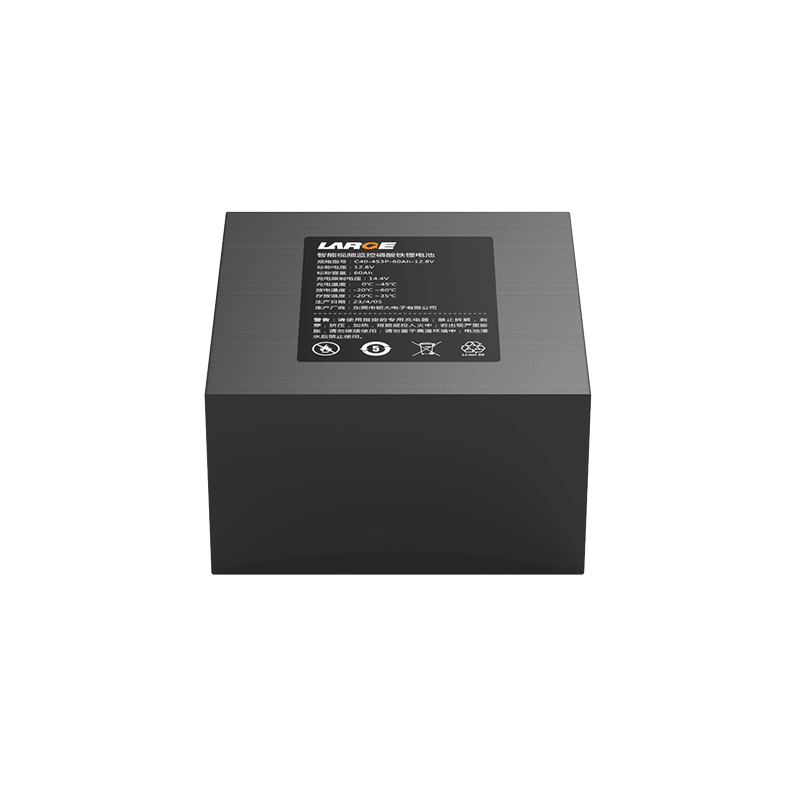

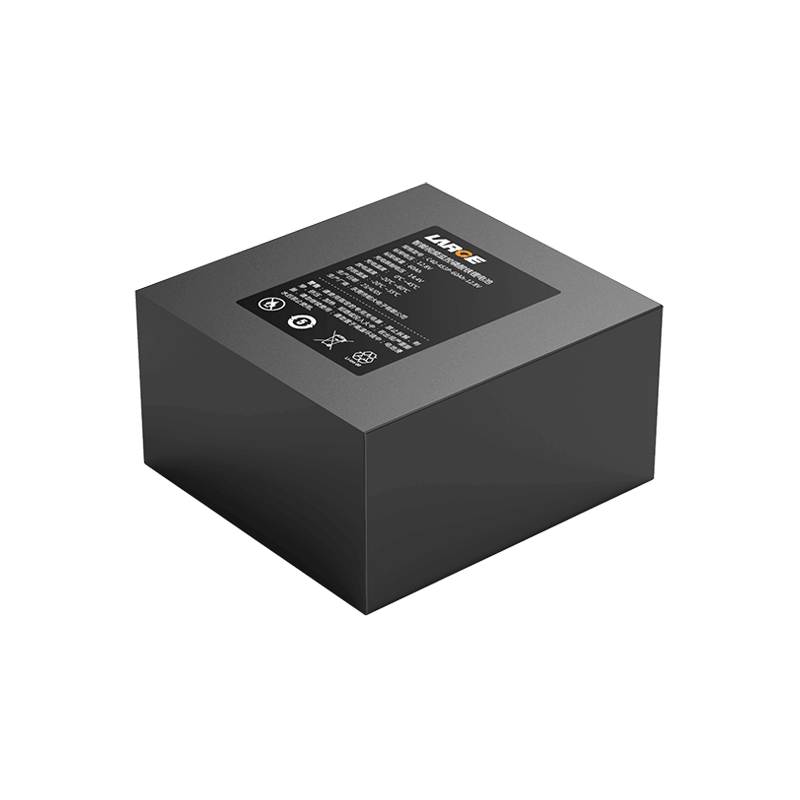

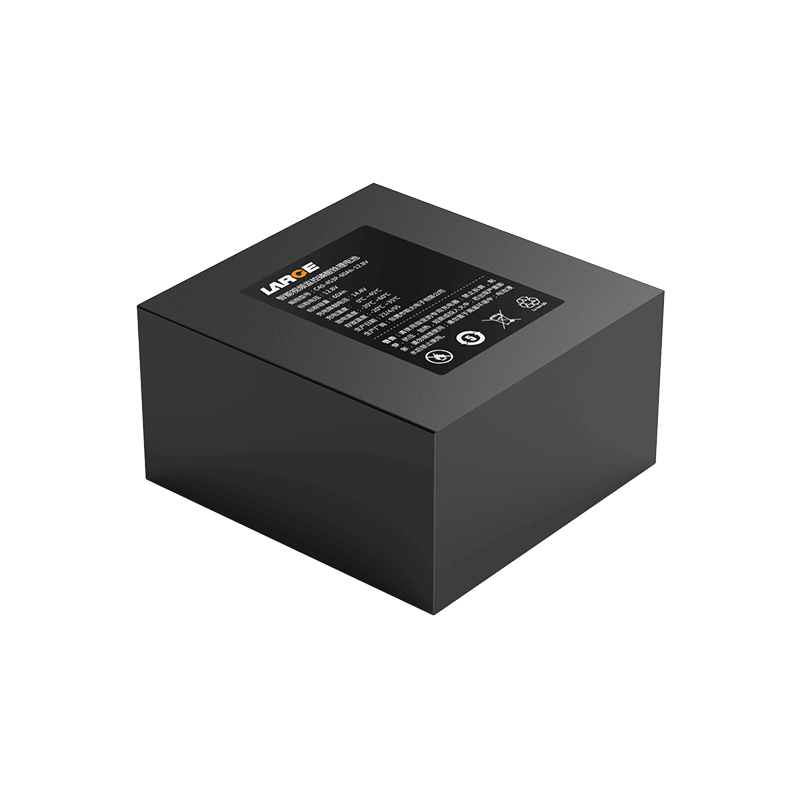

Custom Lithium ion Battery Pack
Product number: 01WQ0109-01
Cell model: 32700-6000mAh-3.2V
Battery specifications: 32700-8S2P-25.6V-12Ah
Product size: (L) 152mm × (W) 143mm × (H) 78mm
Nominal voltage: 25.6V
Nominal capacity: 12Ah
Charging voltage: 29.2V
Charging current: 5A
Discharge current: 12A
Discharge cut-off voltage: 20V
Finished internal resistance: ≤180mΩ
Battery weight: 2.7Kg
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: PVC
Output mode: national standard UL wire
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Built-in battery
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
