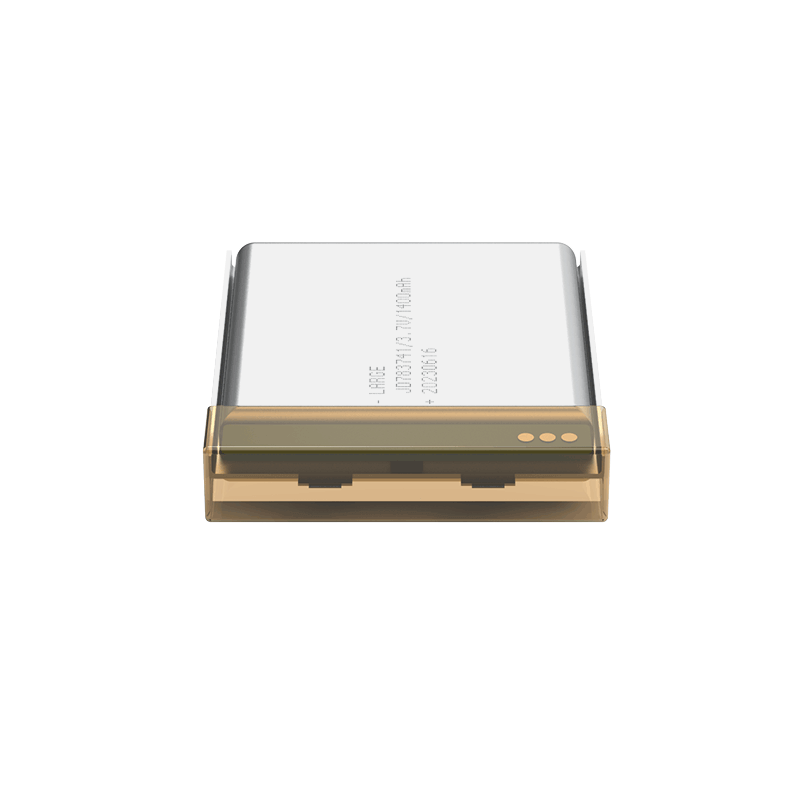

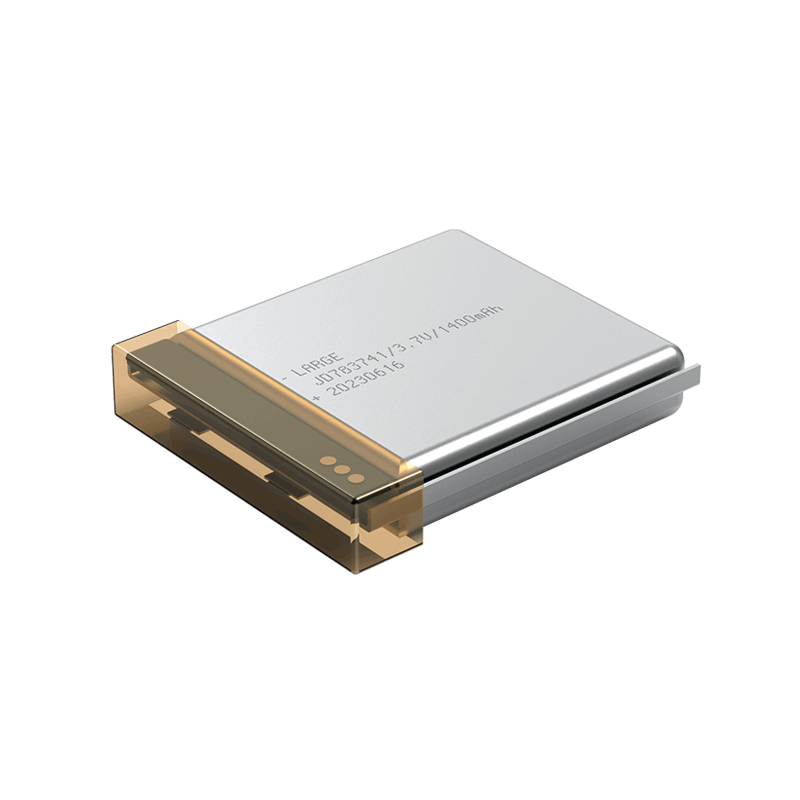

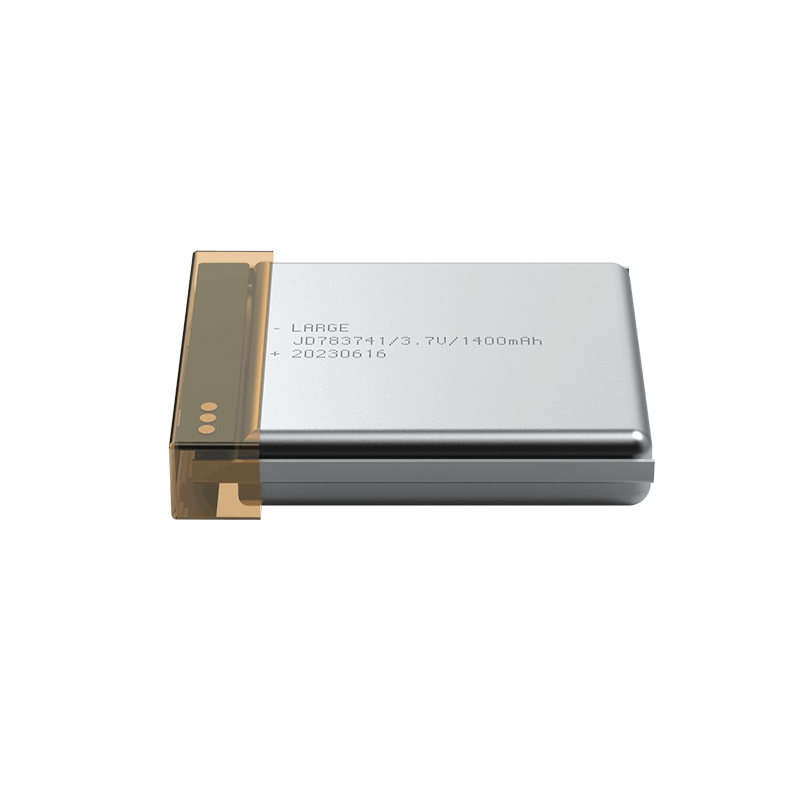

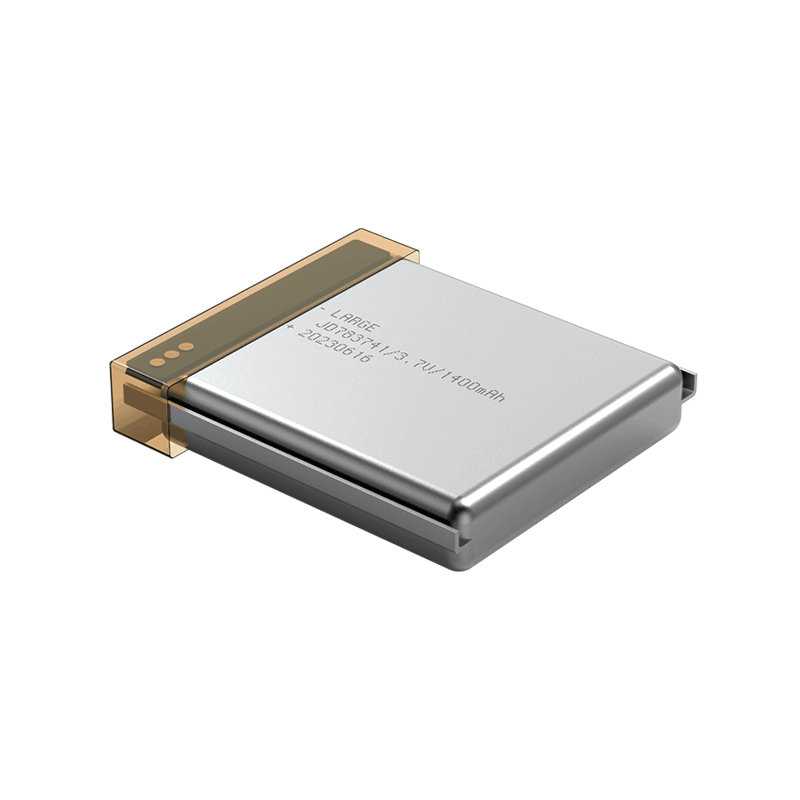

JD783741 3.7V 140mAh Lithium Polymer Battery Pack

Product number: 36AQ517-34

Battery model: JD783741-1400mAh-3.7V

Battery specification: JD783741-1S1P-3.7V-1400mAh

Product size: (length) 43mm× (width) 37mm× (thickness) 8.5mm

Nominal voltage: 3.7V

Nominal capacity: 1400mAh

Charging voltage: 4.2V

Charging current: 675mA(0.5C)

Discharge current: 675mA(0.5C)

Discharge cut-off voltage: 3.0V

Finished internal resistance: ≤200mΩ

Battery weight: 90g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: PVC

Output mode: JST ACHR-03V-S Plug cable

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Built-in battery
