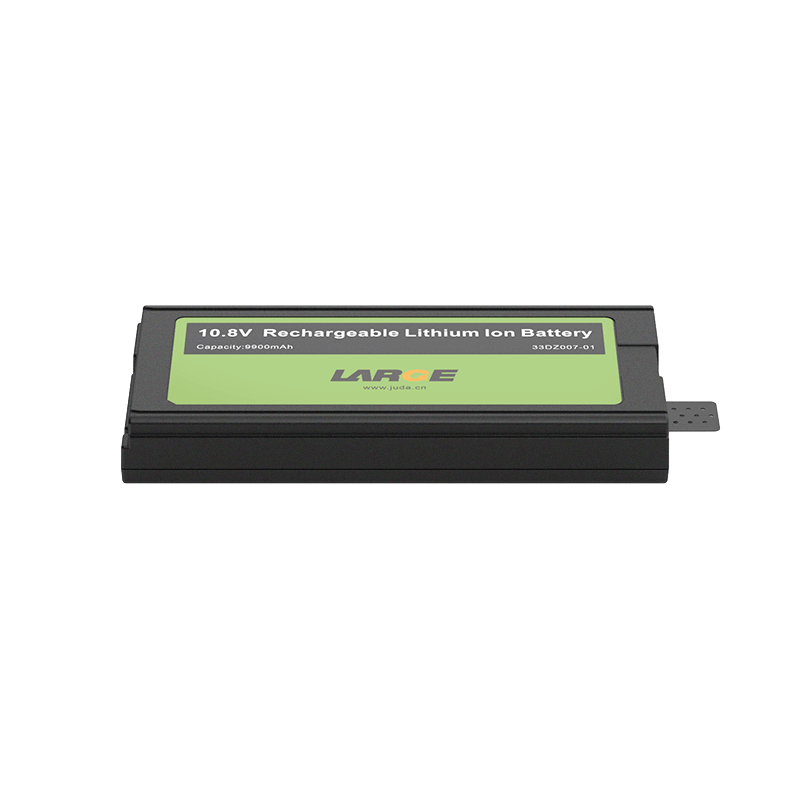

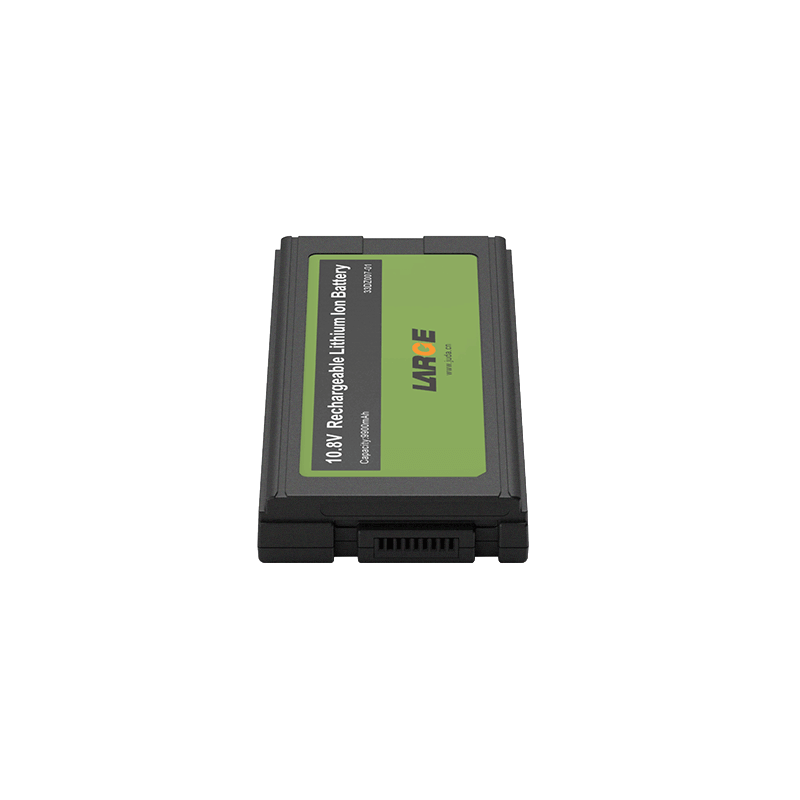

Product number: 33DZ007-01-01
Battery model: INR18650/3.35Ah/3.6V (low temperature)
Battery specification: 18650-3S3P-9.9Ah-10.8V (low temperature)
Nominal voltage: 10.8V
Nominal capacity: 9.9Ah
Charging voltage: 12.6V
Charging current: ≤4A
Discharge current: 7A
Instantaneous discharge current: 8A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤200mΩ
Battery weight: ≤520g
Product size: 164×77.7×21.5mm(L×W×H tolerance ±0.5mm)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: Industrial grade
Communication protocol: SMBUS
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc.
Application: laptop, special equipment
Product Features
1.Current: Maximum sustainable 7A discharge.
2.Parameters and certification: refer to CQC certification standard, using imported protection chip, imported MOS, and SMBUS communication.The host can realize real-time transmission of current, voltage, temperature, capacity changes, which use cell capacity efficiently and eliminate security risks.
3.Cell features: Use self-developed ultra-high capacity 18650 low temperature cell.
4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
