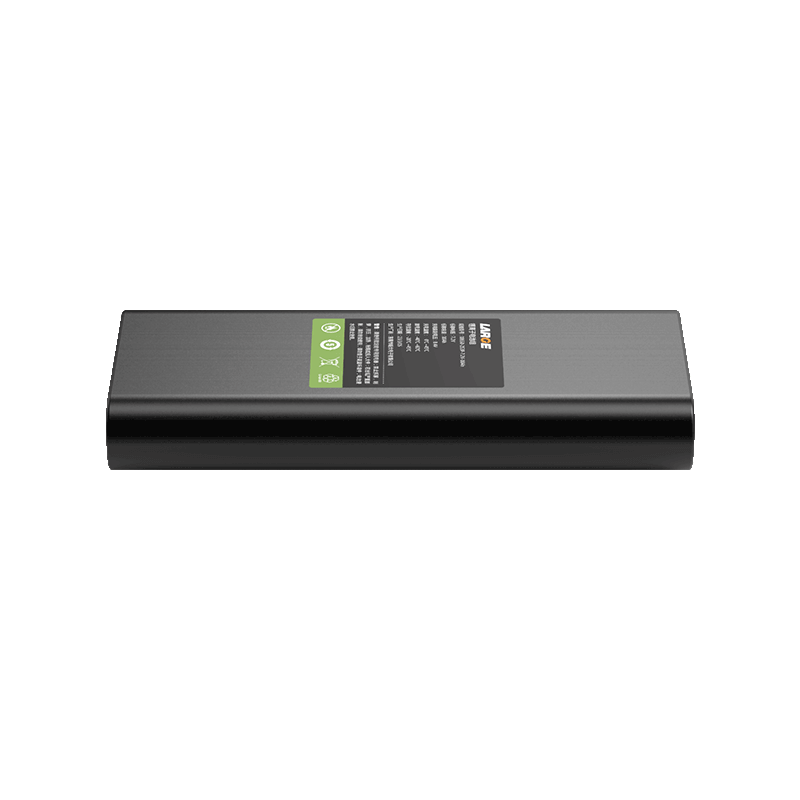

Custom Lithium ion Battery Pack
Product number: 35AQ101-02
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-3S2P-6700mAh-10.8V
Product size: 138*58*20mm
Nominal voltage: 10.8V
Nominal capacity: 6700mAh
Finished internal resistance: ≤200mΩ
Charging voltage: 12.6V
Charging current: ≤3.2A
Discharge current: ≤3.2A
Discharge cut-off voltage: 7.8V
Battery weight: 500g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: 25±3℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Applications: rugged laptop
Product Features
1.Blue PVC heat shrink film package is simple and reliable, easy to install;
2.Adopt MOLEX plug output mode to increase electrical conductivity reliability;
3.High low temperature ratio, -40℃ discharge capacity is more than 50%;
4.Use special lithium battery protection chip, with high stability, high precision monitoring, temperature protection and other functions, to minimize safety risks;
5.Use TI-SMBus software management chip with SMBus communication accurate data transmission, accurate temperature control, to minimize security risks;
6.The battery pack has nice safety, good discharge performance and long cycle life;
7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
