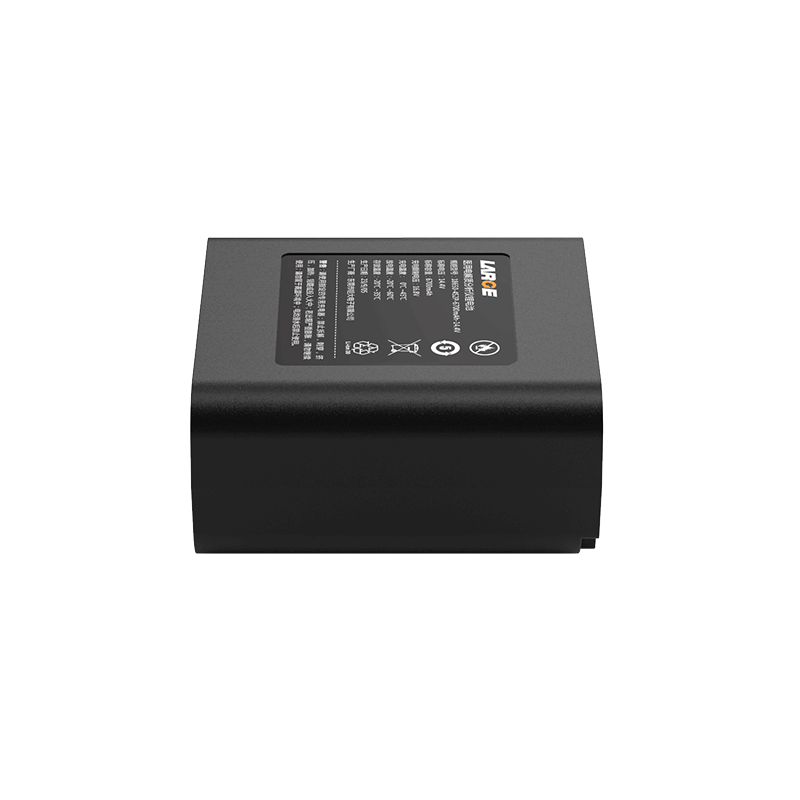

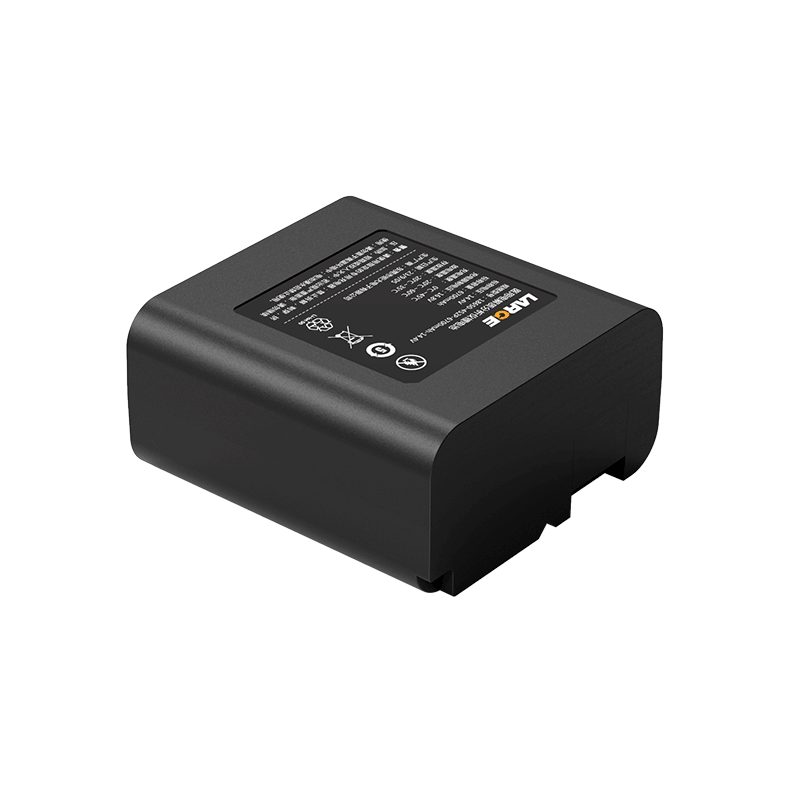

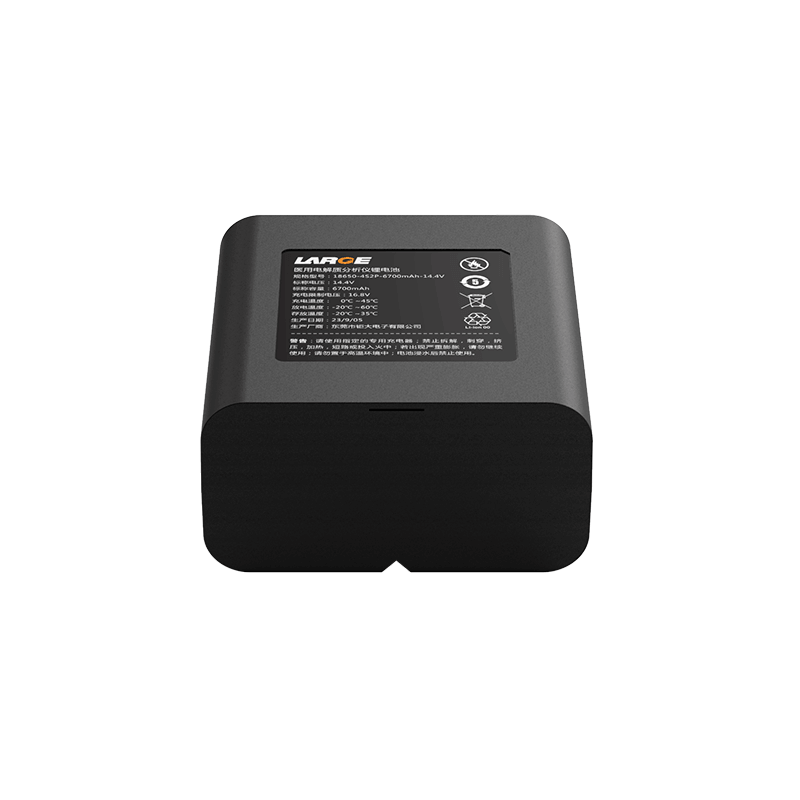

14.4V 6700mAh Medical Electrolyte Analyzer Lithium-ion Battery

Customization | Free Battery Solution

Product Detail

Product number: 03KQ157-02

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-4S2P-6700mAh-14.4V

Product size: 79.6*84*41.6mm

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 16.8V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 11.2V

Battery weight: 420g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: 25±3℃

Battery case: ABS+PC case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: Electrolyte analyzer, blood gas analysis equipment, medical equipment

Product Features

1.ABS+PC shell increases the reliability and firmness of the battery;

2.The battery pack is connected with special nickel sheet, which has good shock resistance.

3.Hardware output: Use gold-plated shrapnel output to increase electrical reliability;

4.Data communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmission, accurate temperature control, to minimize security risks.

5.Battery management: Use TI protection chip, with high stability, high precision monitoring, accurate control, ESD protection, temperature protection and other functions to minimize security risks.

6.The battery pack has nice safety, good discharge performance and long cycle life.

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
