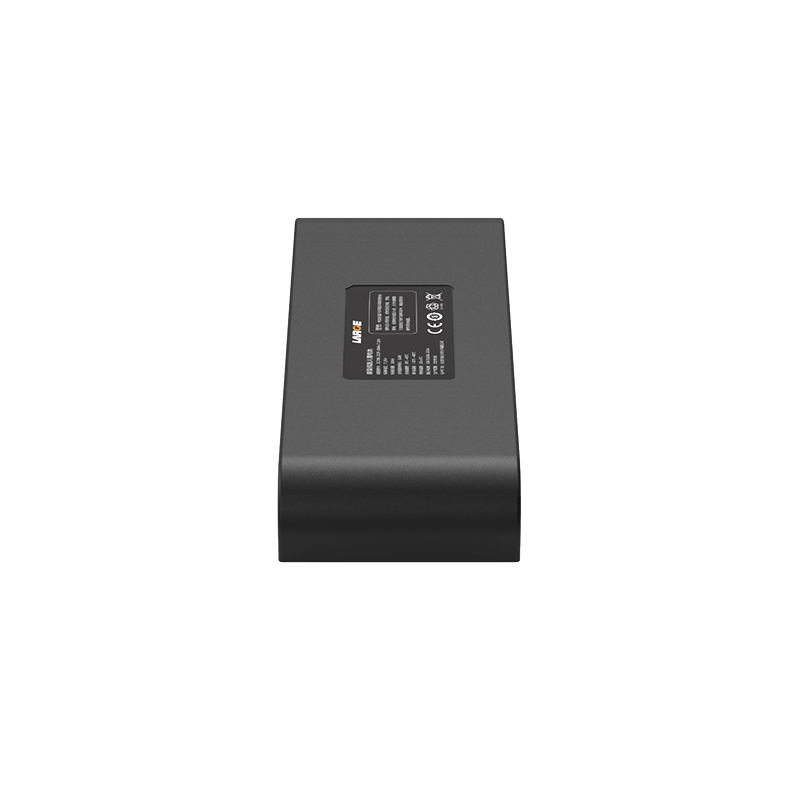

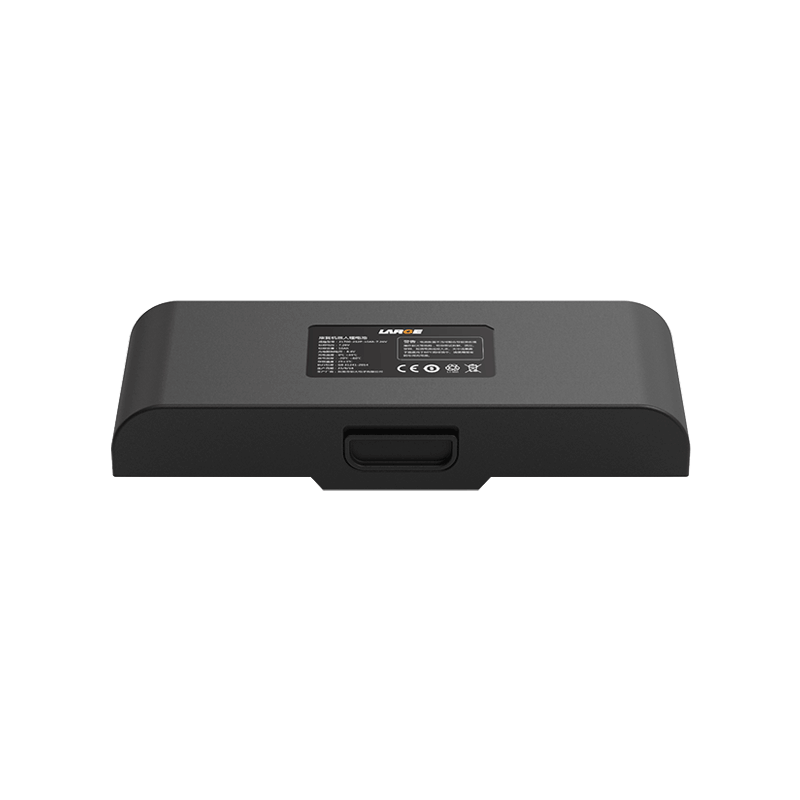

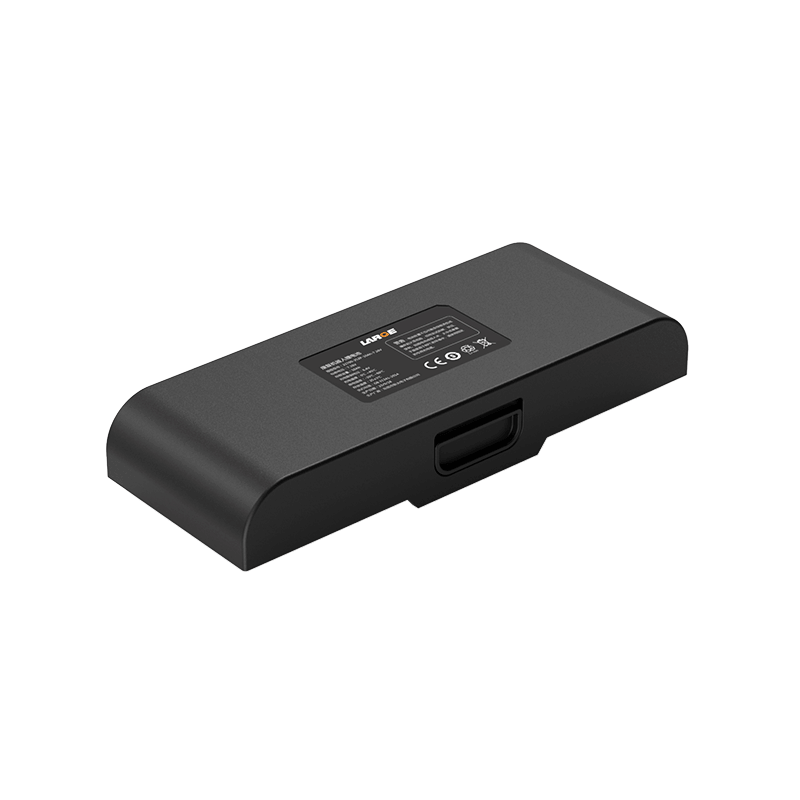

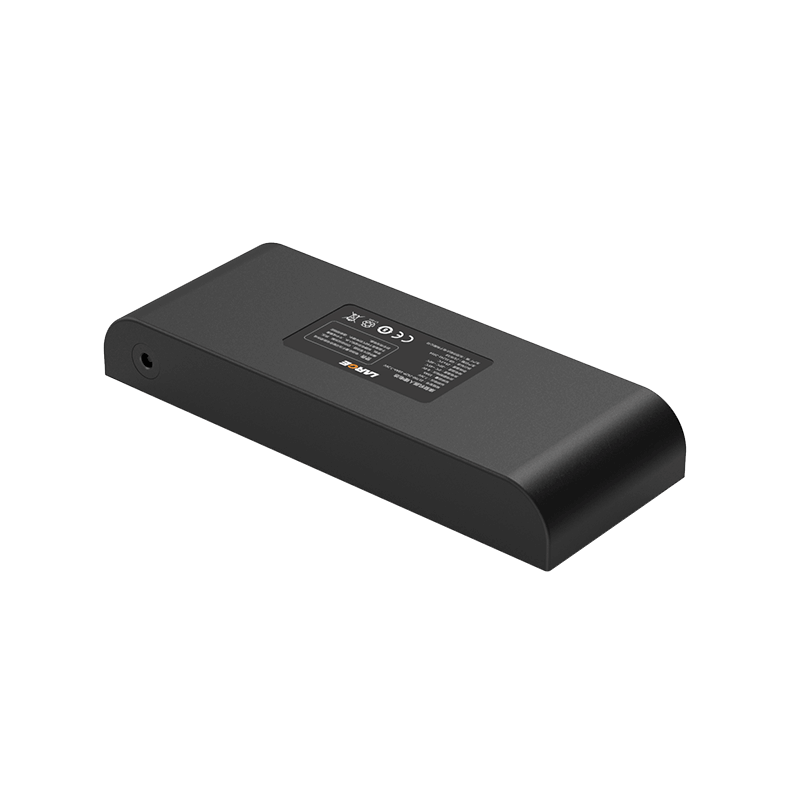

Custom Lithium ion Battery Pack
Product number: 06DQ068-02
Cell model: 21700-5000mAh-3.63V
Battery specification: 21700-2S2P-10Ah-7.26V
Product size: 210*81.5*30mm
Nominal voltage: 7.26V
Nominal capacity: 10Ah
Internal resistance of finished product: ≤100mΩ
Charging voltage: 8.4V
Charging current: ≤4A
Discharge current: ≤4A
Discharge cut-off voltage: 5.4V
Battery weight: 500g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: 25±3℃
Battery case: ABS+PC case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Application: rehabilitation robot, medical equipment
Product Features
1.ABS+PC shell increases the reliability and firmness of the battery;
2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.
3.Hardware output:Use gold-plated shrapnel output to increase electrical reliability;
4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions, to eliminate safety hazards;
5.Data communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmission, accurate temperature control, to minimize security risks.
6.The battery pack has nice safety, good discharge performance and long cycle life;
7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
