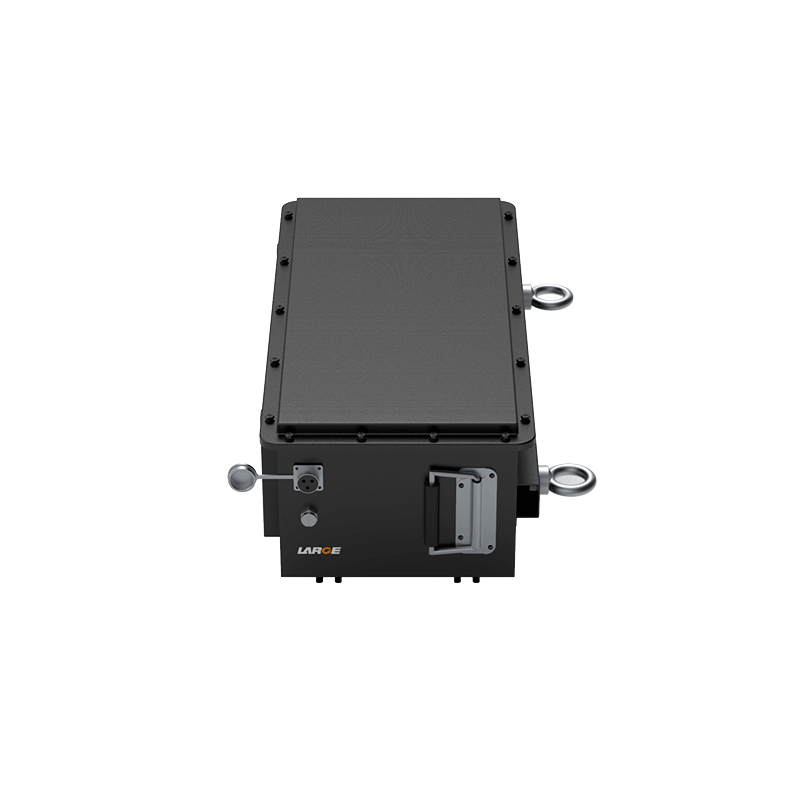

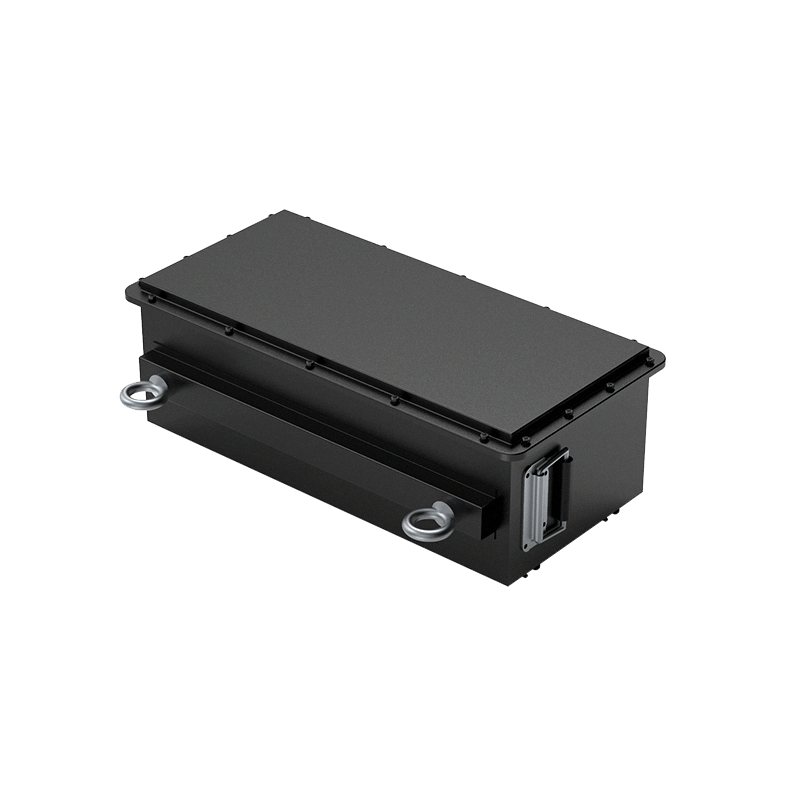

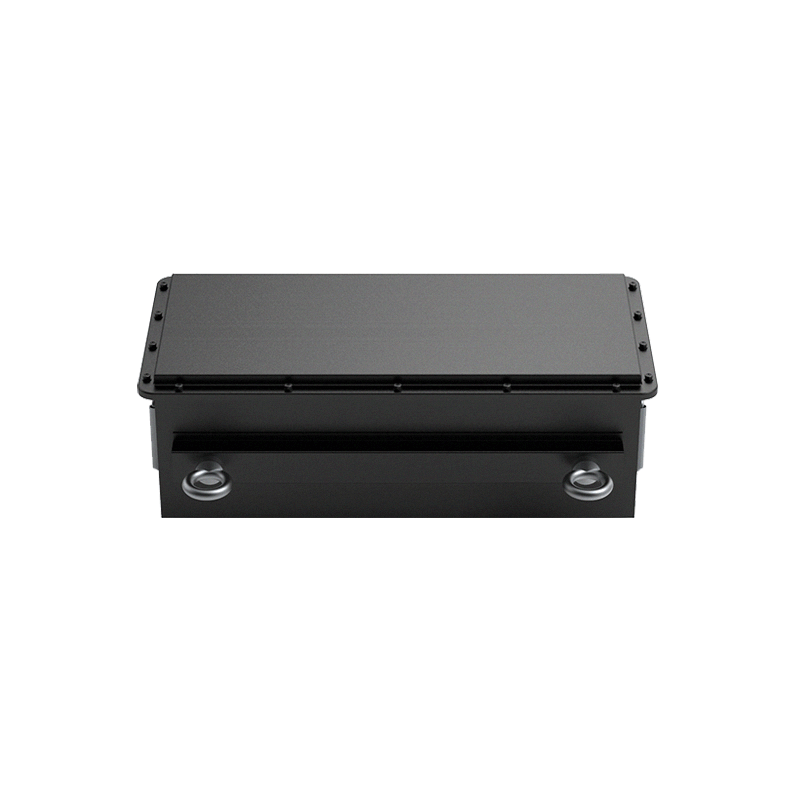

Low-temperature Charge and Discharge power Inspection robot Lithium Iron phosphate Battery Pack

Customization | Free Battery Solution

Product Detail

Product number: 06DQ063-02

Cell model: 26650-3300mAh-3.2V

Battery specification: 26650-16S16P-50Ah-51.2V

Product size: 550*270*180mm

Nominal voltage: 51.2V

Nominal capacity: 50Ah

Internal resistance of finished product: ≤100mΩ

Charging voltage: 58.4V

Charging current: ≤25A

Discharge current: ≤30A

Discharge cut-off voltage: 35.2V

Battery weight: 33kg

Charging temperature: -20℃ ~ +45℃

Discharge temperature: -40℃ ~ +55℃

Storage temperature: 25±3℃

Battery case: aluminum alloy case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: robot, power inspection robot

Product Features

1.Aluminum alloy shell increases the reliability and firmness of the battery;

2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.

3.Adopt aviation plug output mode to increase electrical conductivity reliability;

4.Good low temperature performance: support -40℃ discharge, -20℃ charge, charge and discharge capacity of more than 50%;

5.Use special lithium-ion battery protection chip, with high stability, high precision monitoring, precise control, temperature protection and other functions, to minimize safety risks;

5.Adopt RS485 communication for accurate data transmission, CAN bus, accurate temperature control, real-time battery status monitoring and control to minimize safety risks;

6.BMS communication uses optocoupler isolation. The product supports 485 bus for customer optional communication, support networking, communication baud rate is 9600bps;

7.The battery pack has nice safety, good discharge performance and long cycle life;

8.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
