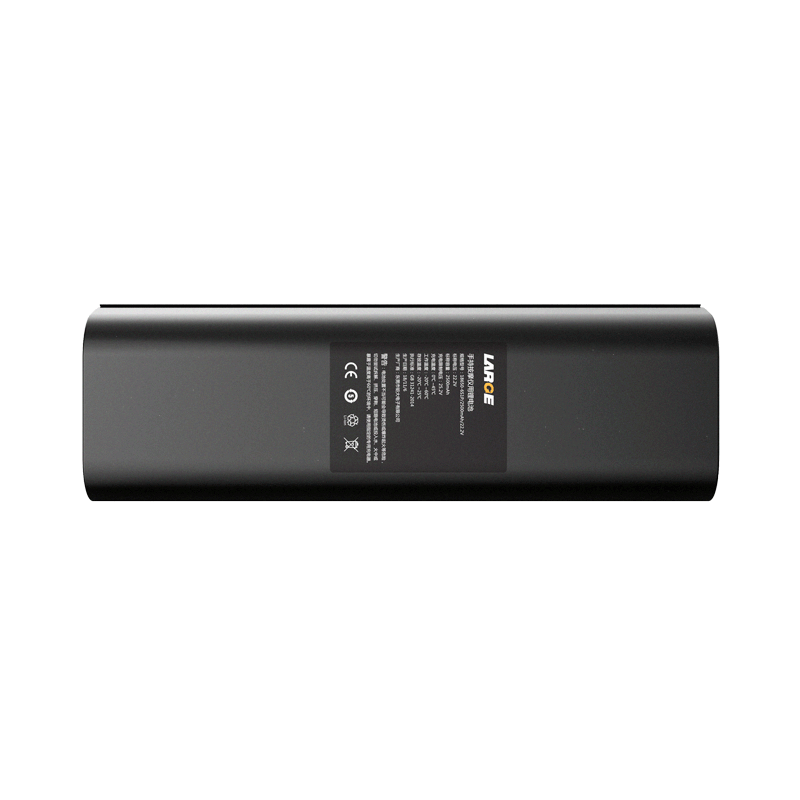

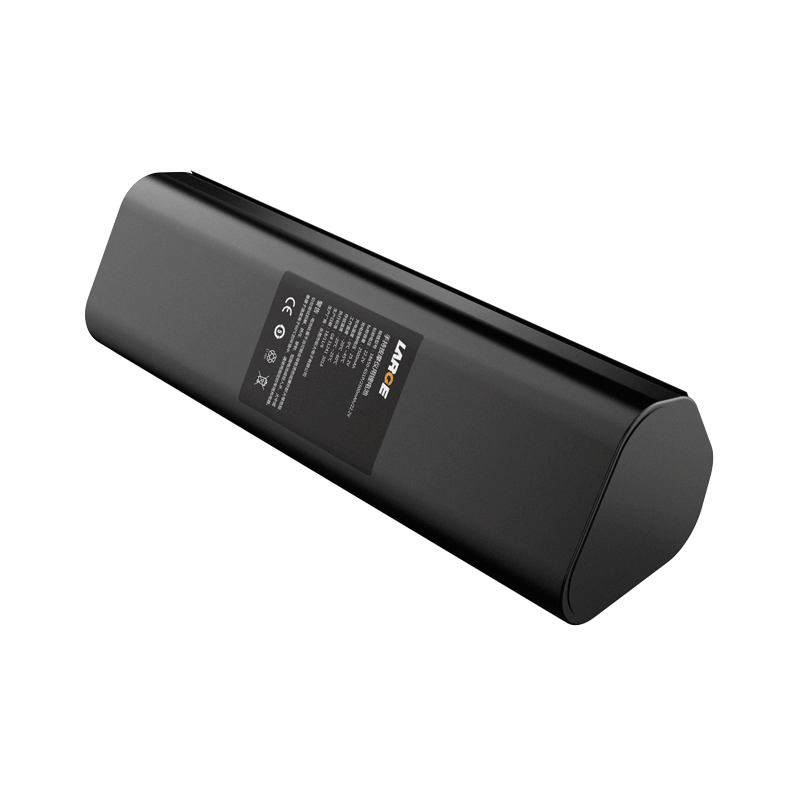

Custom Lithium ion Battery Pack
Product number: 36AQ076-01
Cell model：Lishen 18650SZ/2500mAh/3.7V
Battery specification: 18650-6S1P/2500mAh/22.2V
Nominal voltage：22.2V
Nominal capacity：2500mAh
Charging voltage: 25.2V
Charging current: 500mA
Discharging current: 500mA
Instant discharging current: 7200mA@200ms
End-off voltage: 16.8V
Internal resistance: ≤200mΩ
Battery weight: 310g
Product dimension: 136*43*41.6mm
Charging temperature：0～45℃
Discharging temperature: -20～+60 ℃
Storage temperature: -20～+25 ℃
Temperature protection: 65℃±5℃
Battery case: PVC simple package
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.
Application field: handhold massage device
Parameter function: short circuit protection, overcharge protection, over discharge protection, temperature protection, etc.
The product has low capacity and good rated discharge performance.
