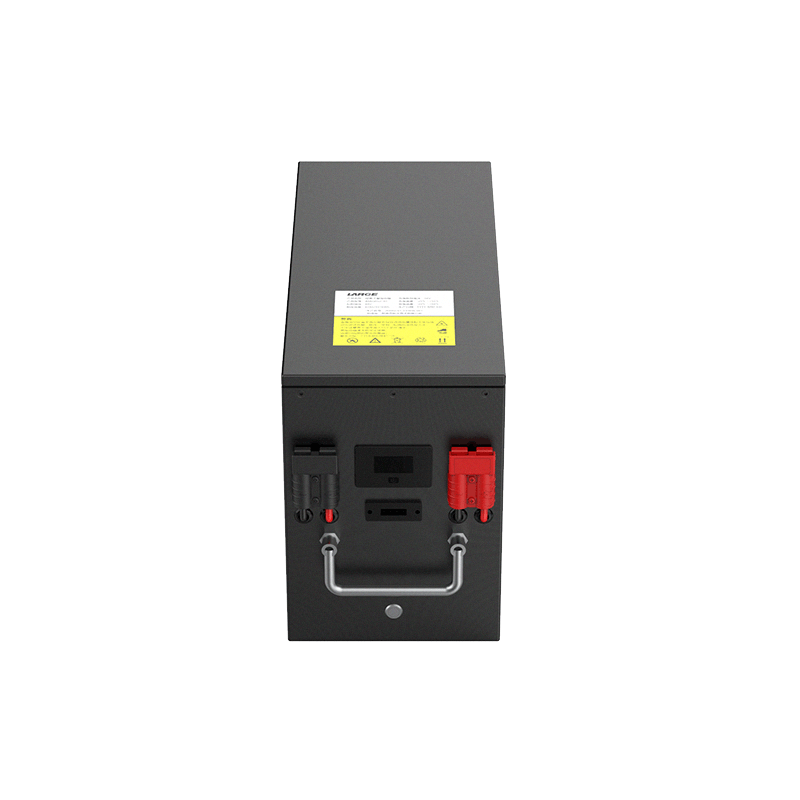

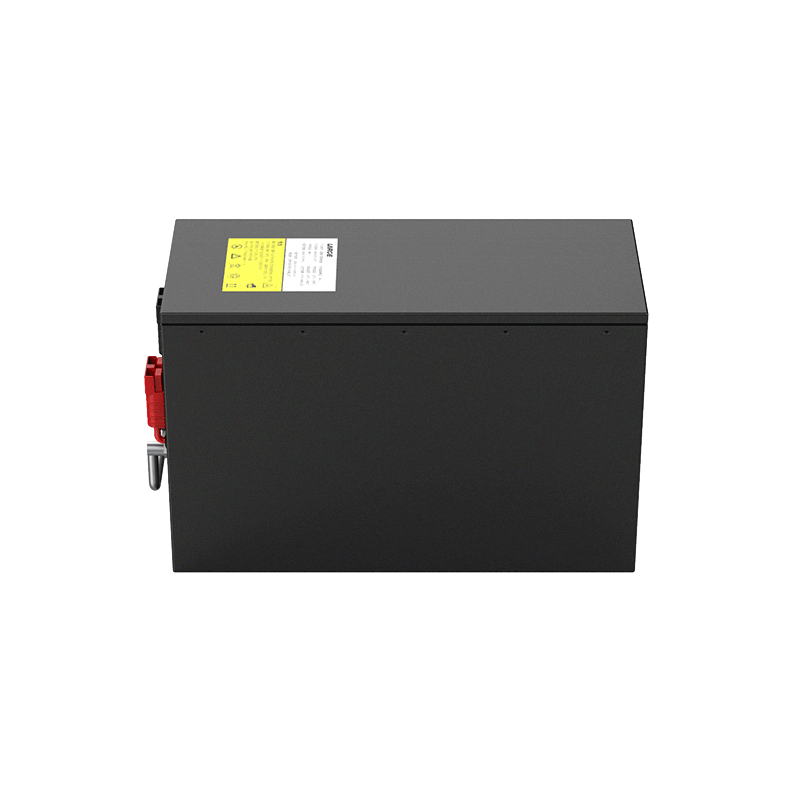

Custom Lithium ion Battery Pack
Product number: 40AQ052-07
Cell model: 26650-3.2V-3.3Ah
Battery specification: 26650-15S16P-48V-52.8Ah
Product size: (385×170×245)±1mm
Nominal voltage: 48V
Nominal capacity: 52.8Ah
Charging voltage: 54V
Charging current: 20A
Discharge current: 38A
Discharge cut-off voltage: 30V
Finished internal resistance: ≤180mΩ
Battery weight: ≤29Kg
Charging temperature: -20℃ ~ 45℃
Discharge temperature: -40°C~+55 °C
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: black sheet metal case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: robot, mine
Product Features
1.Metal case built-in battery
2.RS485 communication protocol
3.Output: Anderson plug with power display;
4.Battery protection management: Use imported well-known brand protection chip, with high stability, high precision monitoring, precise control, to maximize the elimination of security risks;
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
