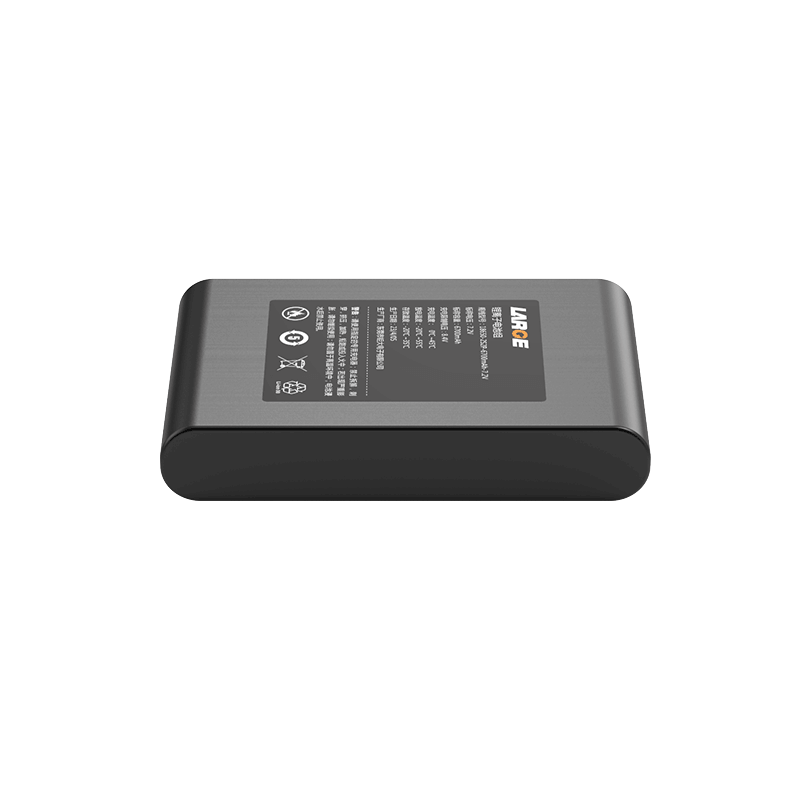

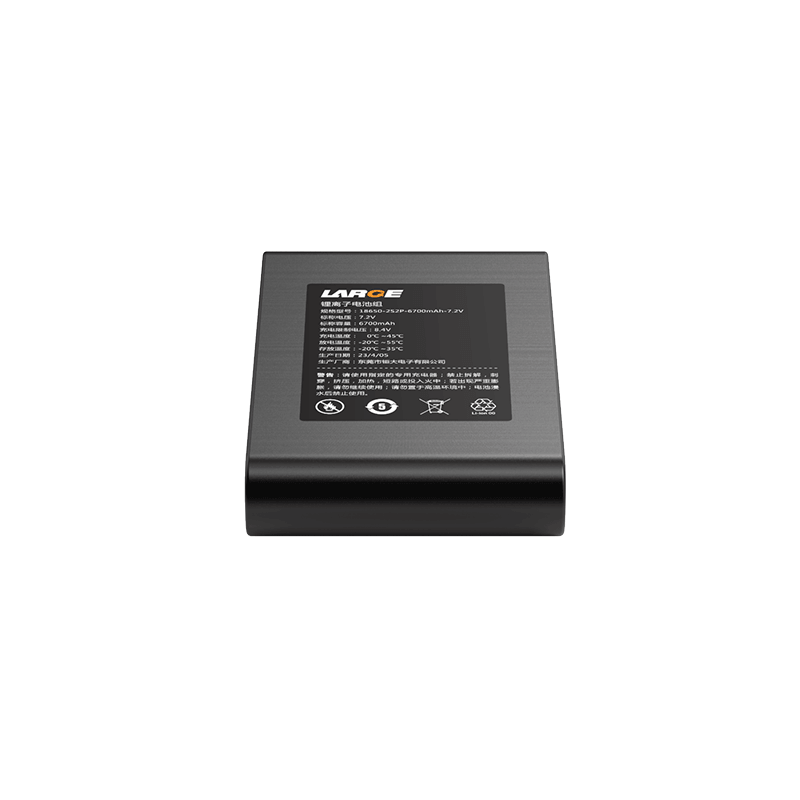

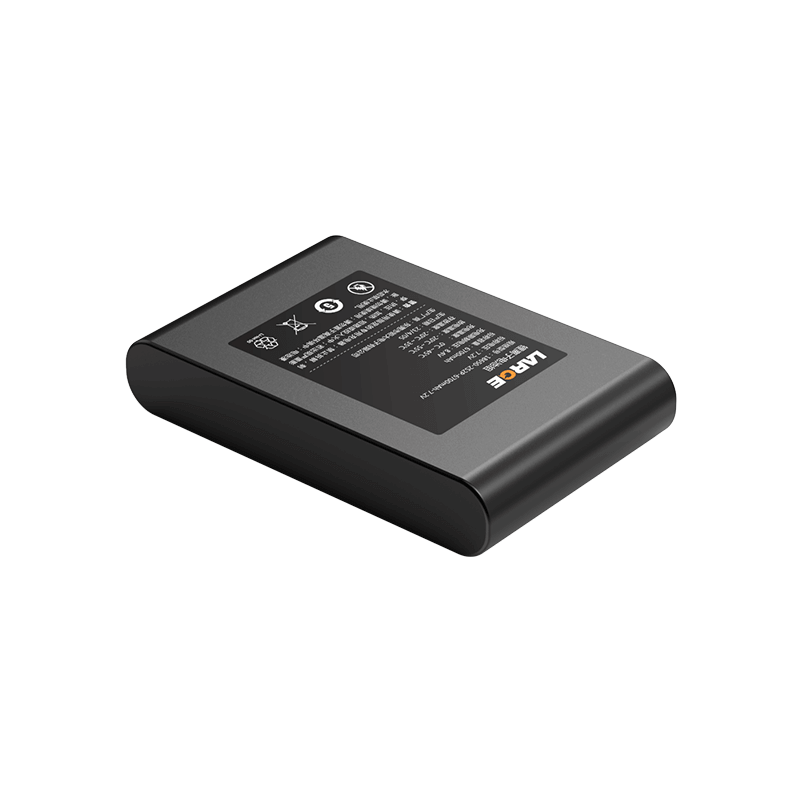

Custom Lithium ion Battery Pack
Product number: 33DZ015-01A
Cell model: 18650/3.6V/3.35Ah
Battery specification: 18650-3S2P/10.8V/6.7Ah
Nominal voltage: 10.8V
Nominal capacity: 6.8Ah
Charging voltage: 12.6V
Charging current: ≤3.1A
Discharge current: 3.1A
Instantaneous discharge current: 10A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤150mΩ
Battery weight: 300g
Product size: 113*72*20mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Temperature protection: 75℃±5℃
Battery case: PVC
Communication protocol: SMBUS
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc.
Application: Medical battery
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
