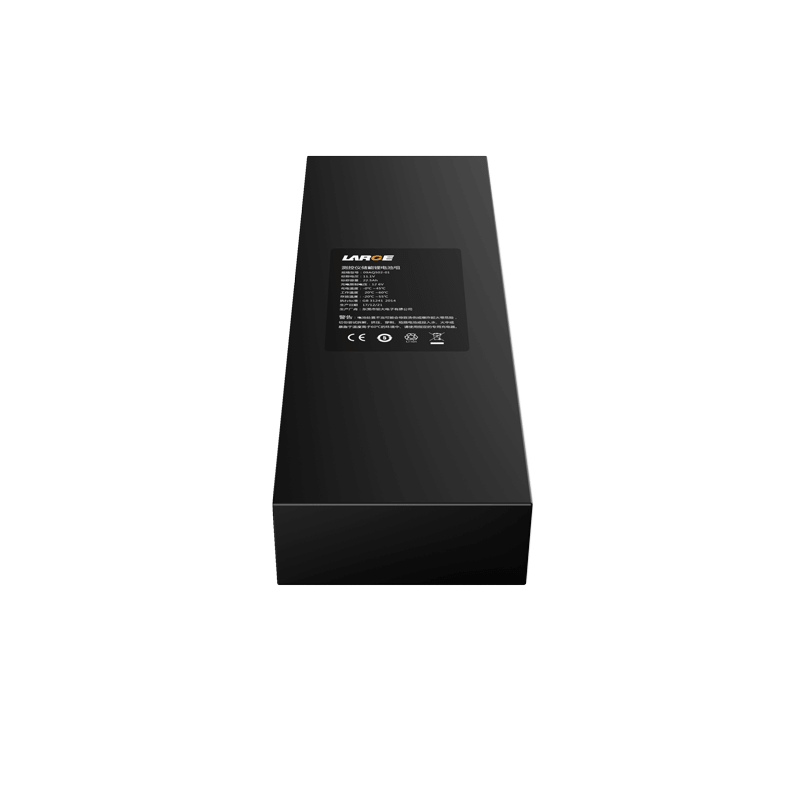

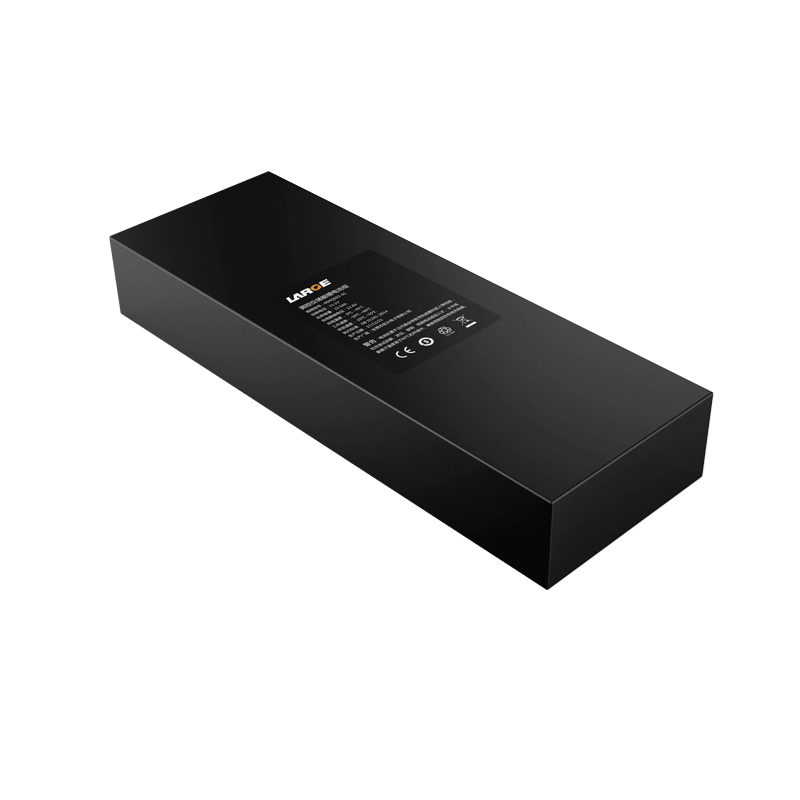

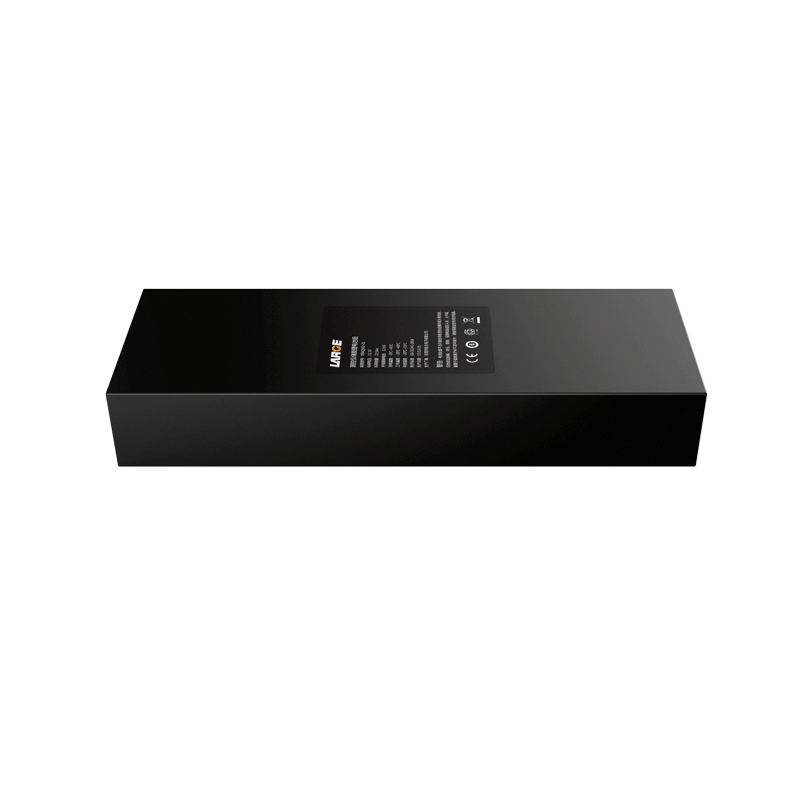

18650 5V 12V 36V DC Battery 11.1V 22.5Ah Energy Storage Battery Sanyo for Measuring and Control Instrument

Customization | Free Battery Solution

Product Detail

Product number: 09AQ502-01

Cell model:18650/3.7V/2500mAh

Battery specification: 18650-3S9P/11.1V/22.5Ah

Nominal voltage:11.1V

Nominal capacity:22.5Ah

Charging voltage: 12.6V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 6A

End-off voltage: 7.2V

Internal resistance: ≤200mΩ

Battery weight:1.4kg

Product dimension: 310*109*48mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Temperature protection: no

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: energy storage of measuring and control instrument

Product features

1. 24V stable output: output 24V stable voltage and 0.3A current.

2. 12V stable output: output 12V stable voltage and 0.3A current.

3. 5V stable output: output 5V stable voltage and 2A current.

4. Output control: external switch controls the output and can increase the resting period of battery.

5. The battery pack is safe. It uses imported SANYO cell.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
