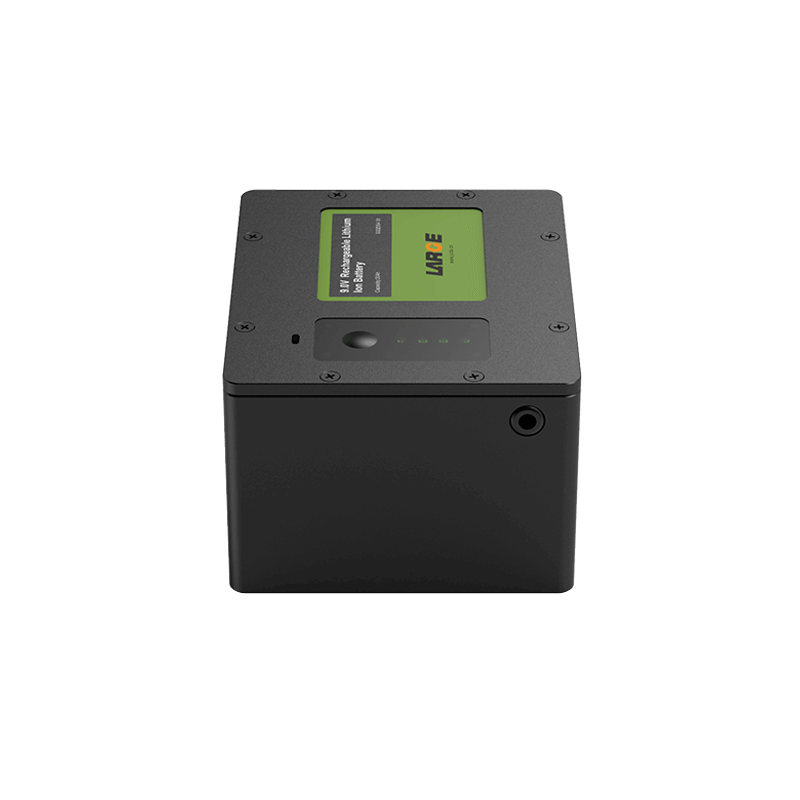

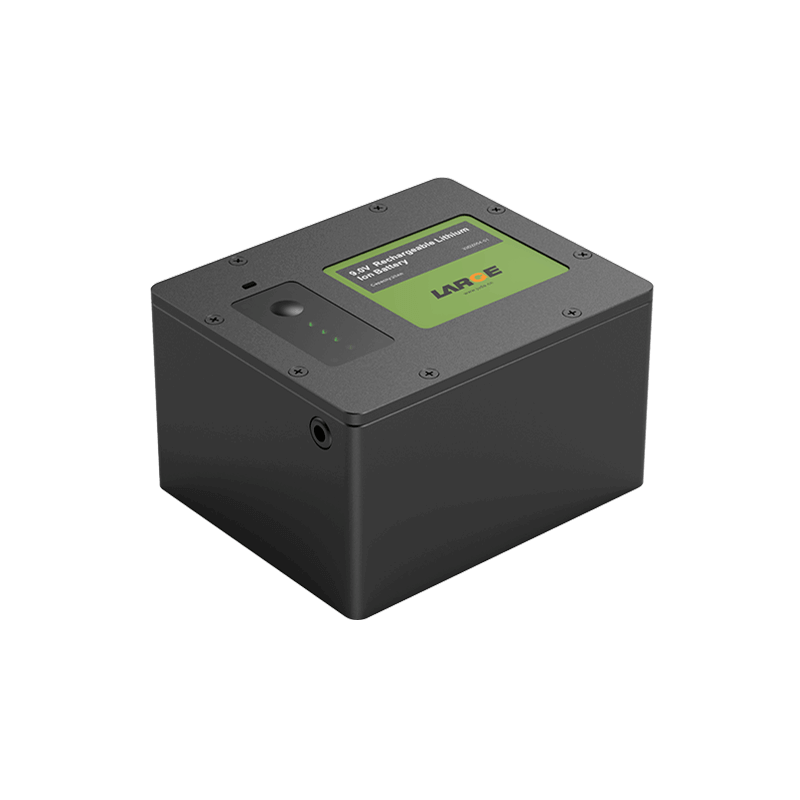

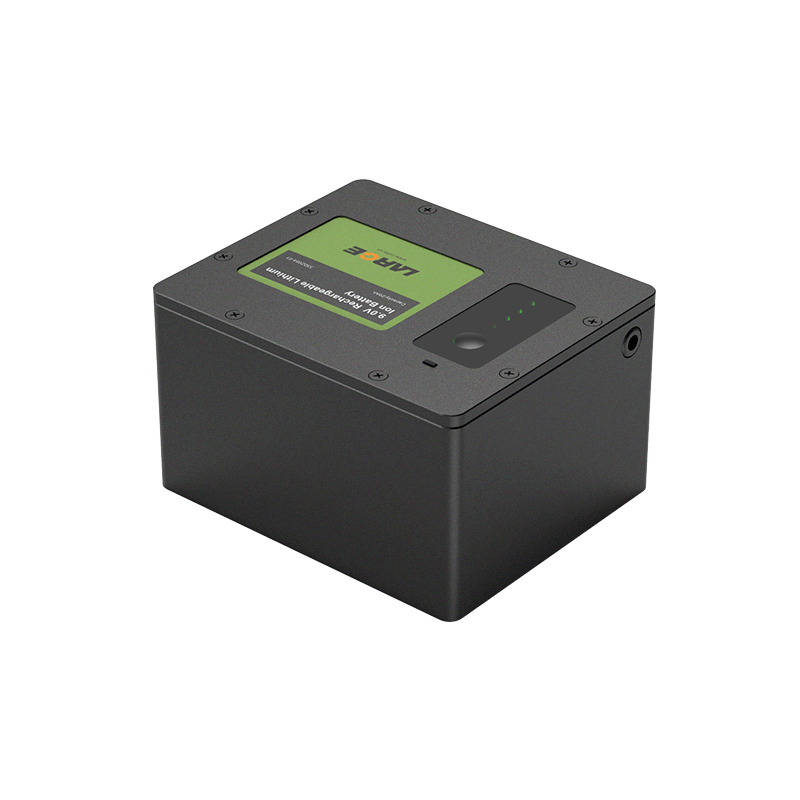

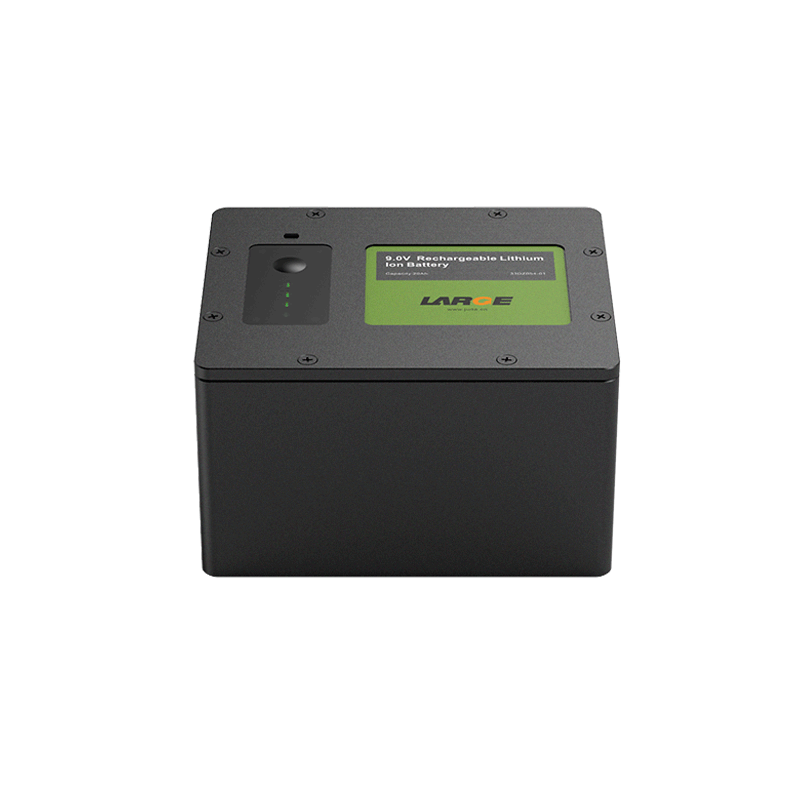

Custom Lithium ion Battery Pack
Product number: 33DZ054-01
Battery model: 26500/3.0V/5.0Ah (lithium manganese battery)
Battery specification: 26500-3S4P/9.0V/20Ah (lithium manganese battery)
Nominal voltage: 9.0V
Nominal capacity: 20Ah
Discharge current: 2A
Instantaneous discharge current: greater than 3A
Discharge cut-off voltage: 6.0V
Finished internal resistance: ≤200mΩ
Battery weight: 1200g
Product size: 120*100*70mm
Discharge temperature: -40 ~ 60℃
Storage temperature: -40 ~ 45℃
Temperature protection: 75℃±5℃
Battery case: aluminum alloy case
Communication protocol: SMBUS
Lithium-ion battery protection: short circuit protection, over discharge protection, over current protection, temperature protection, etc.
Application: Express cabinet power supply
Product Features
1.Lithium manganese dioxide battery, disposable battery
2.Temperature protection
3.Small current, long time discharge
4.The battery pack is safe and has a long cycle life;
5.The battery pack has a long cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection;
6.IIC Communications
7.Coulometer, power display
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
