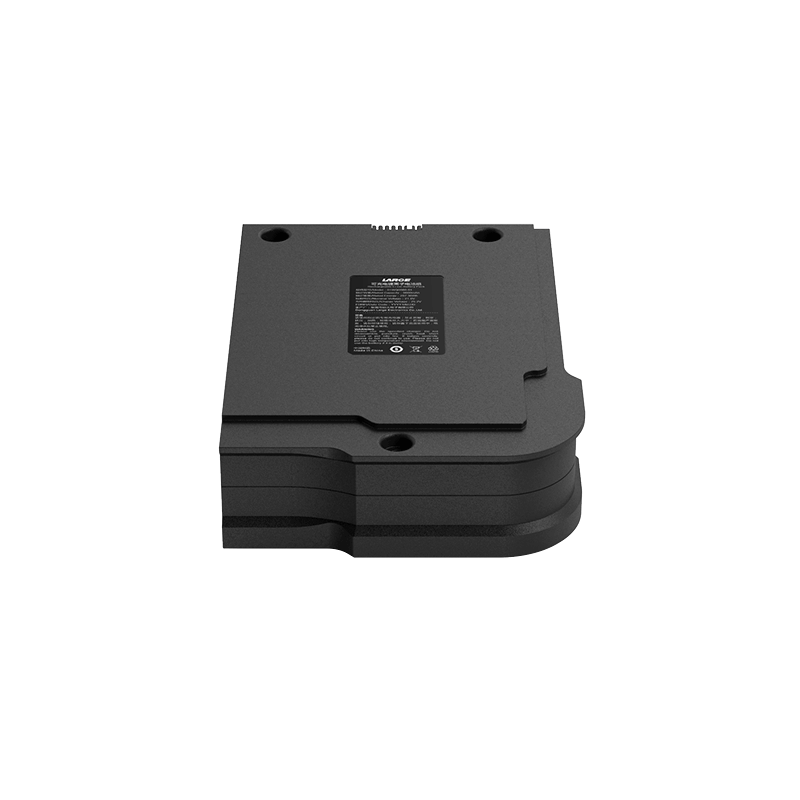

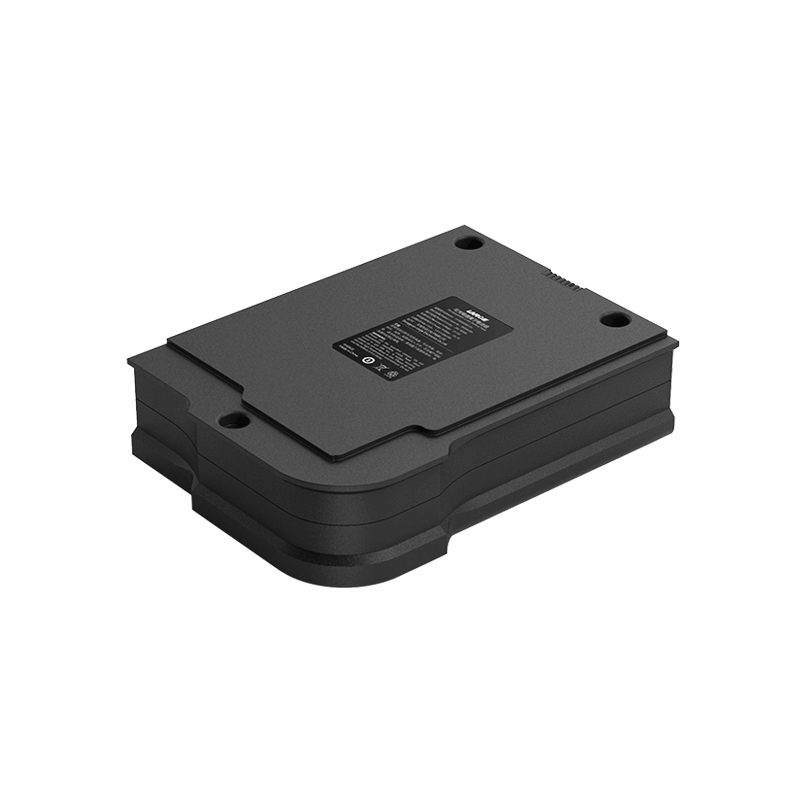

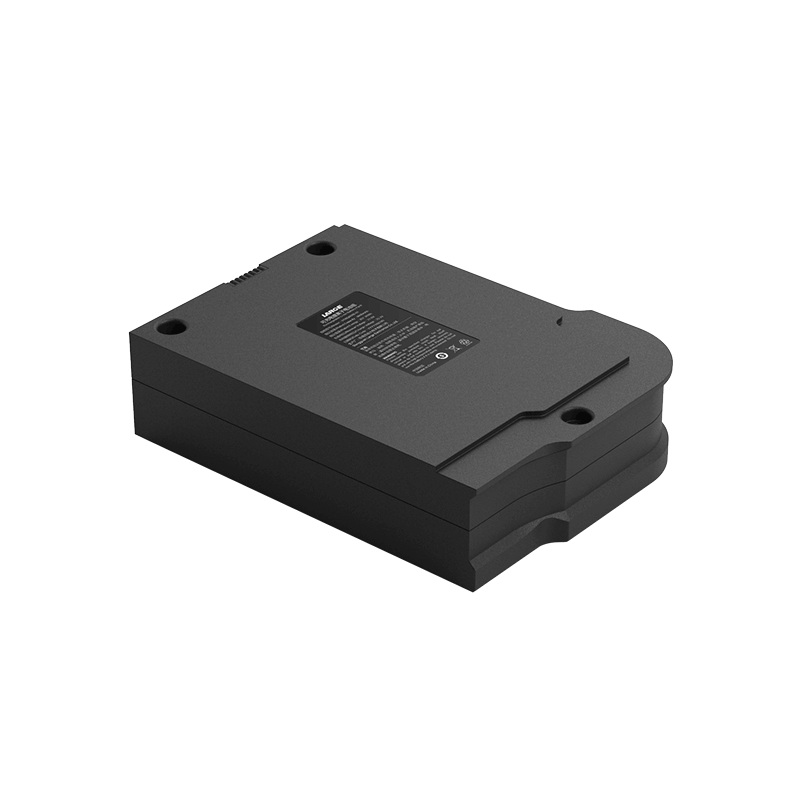

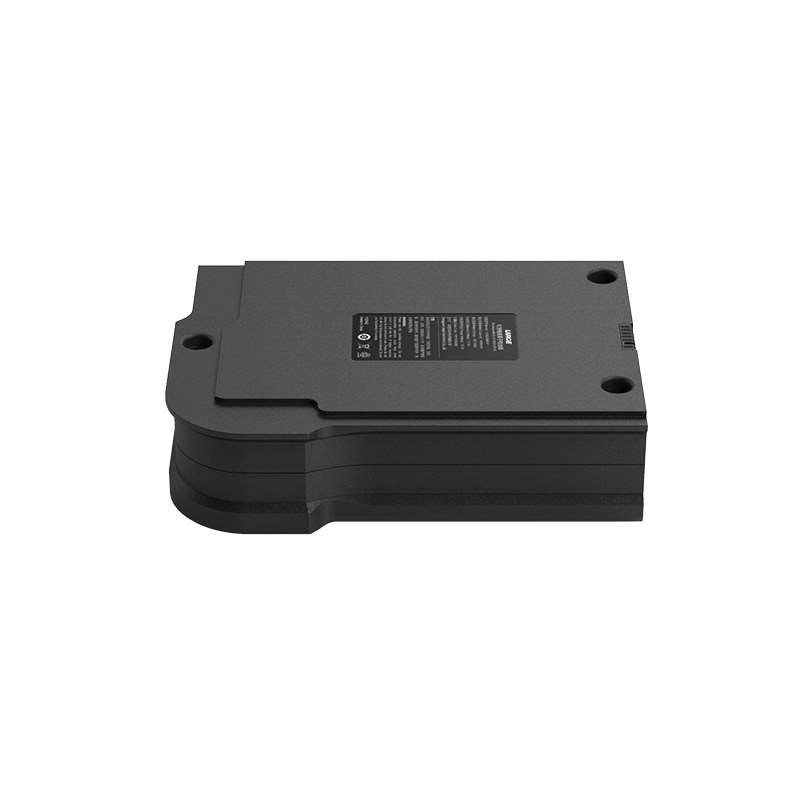

UAV Low Temperature Lithium-ion Battery Pack 18650 25.2V19.2Ah

Customization | Free Battery Solution

Product Detail

Product number: 36AQ0750-16

Battery model: 18650-3.6V-3350mAh

Battery specifications: 18650-7S6P-25.2V-19.2Ah

Product size: (length) 180±0.5mm x (width) 103±0.5mm x (thickness) 76±0.5mm

Nominal voltage: 25.2V

Nominal capacity: 19.2Ah

Charging voltage: 29.4V

Charging current: 9.6A

Discharge current: 9.6A

Discharge cut-off voltage: 17.5V

Finished internal resistance: ≤150mΩ

Battery weight: 2.7Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -43 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: plastic case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: UAV battery

Product Features

1.Plastic case is simple, reliable, and easy to install;

2.RS485 communication protocol

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

4.Battery protection management: Use imported well-known brand protection chip, with high stability, high precision monitoring, precise control, to eliminate security risks.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life,which in line with low carbon, energy saving, environmental protection value concept.
