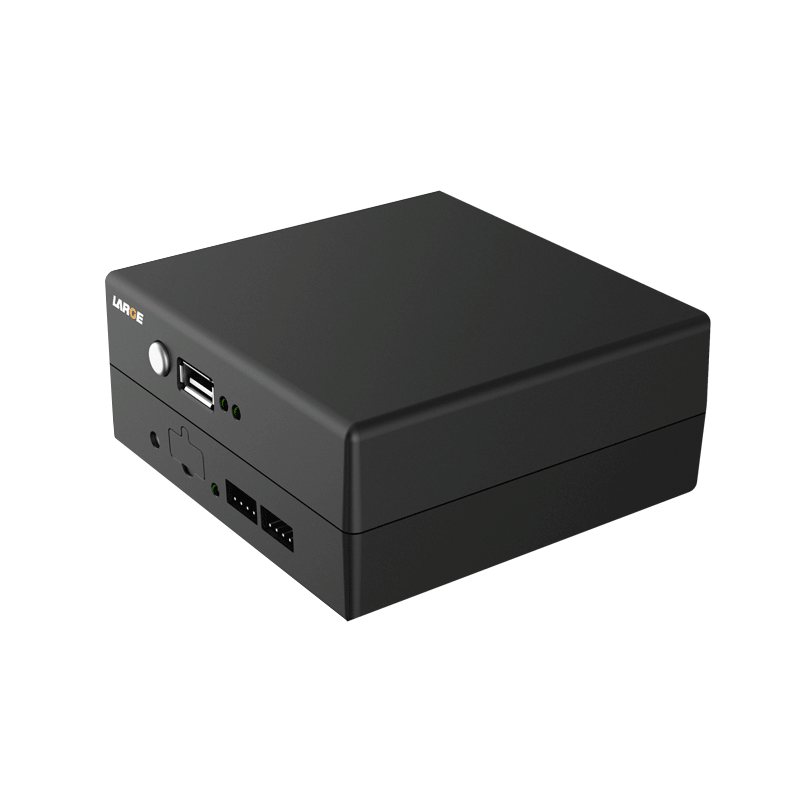

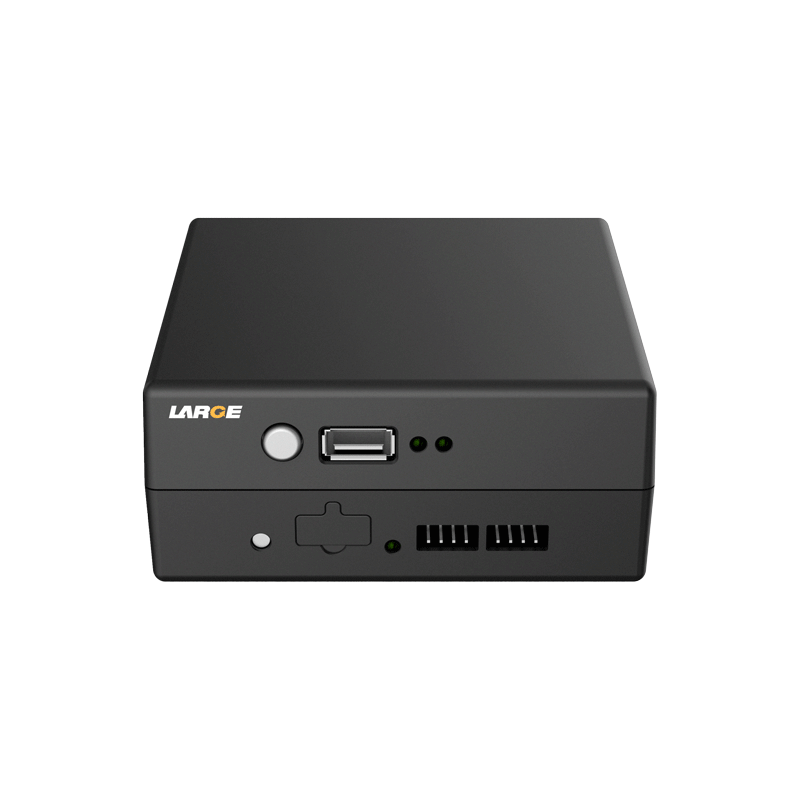

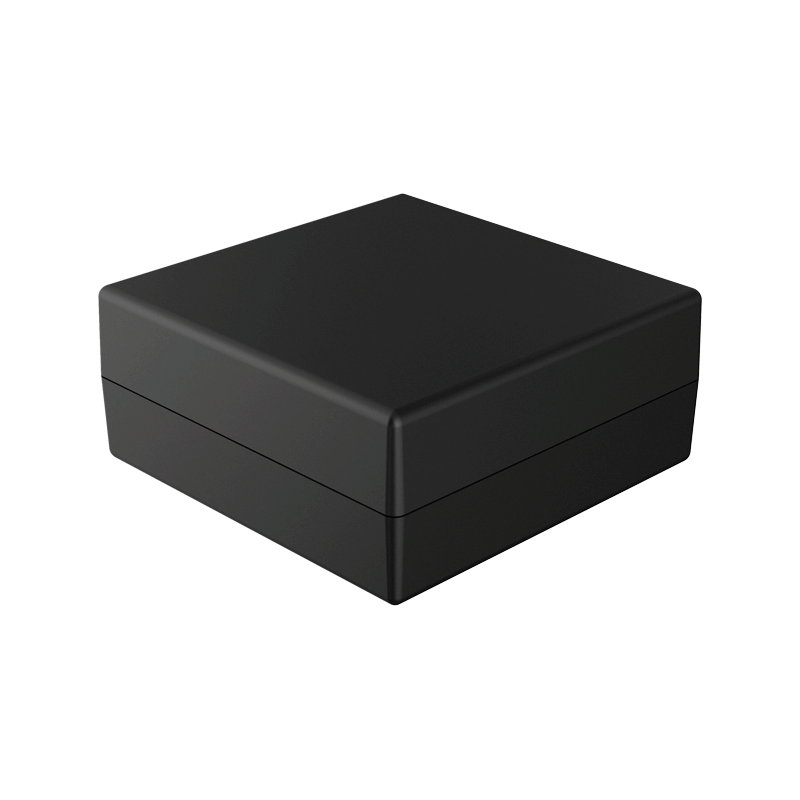

Custom Lithium ion Battery Pack
Product number: 35DZ003-02
Cell model：18650/3.6V/2600mAh
Battery specification: 5S1P/5V/8000mAh
Nominal voltage：5V
Nominal capacity：8000mAh
Charging voltage: 5V
Charging current: ≤2A
Discharging voltage: 5V
Discharging current: 2A
Instant discharging current: 2.5A
End-off voltage: 2.5V
Internal resistance: ≤100mΩ
Battery weight: 420g
Product dimension: 20.3*100*100mm （Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～45 ℃
Battery case: plastic case
Communication: no
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
Application field: Buoy Location
Product features
1. Low self-consuming.
2. The battery comes with temperature protection.
3. The battery is safe and has long cycle life.
4. The battery has charge management with 5V input.
5. The battery has 5V constant voltage output.
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
