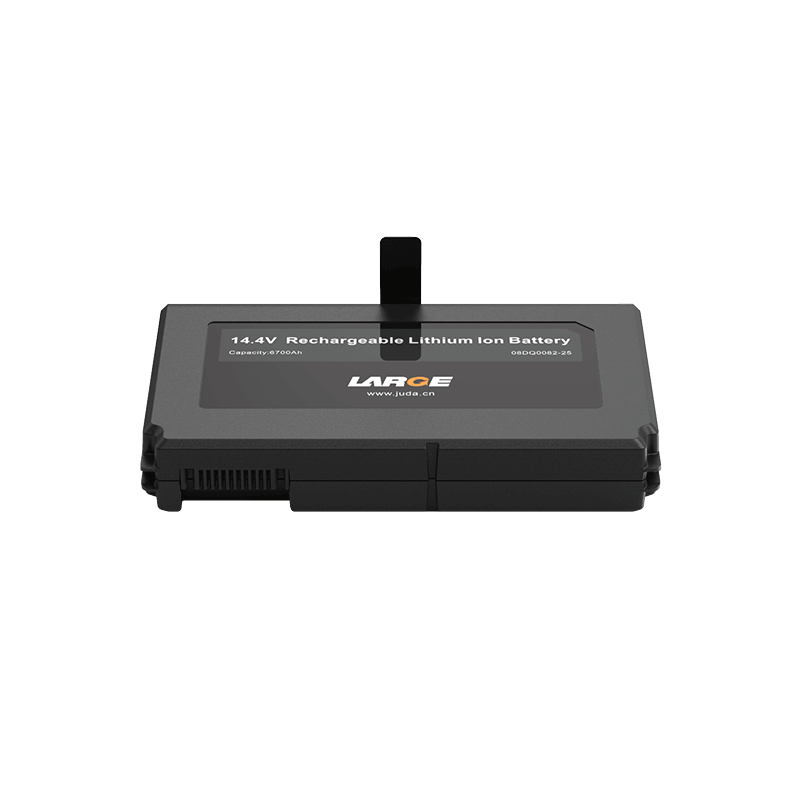

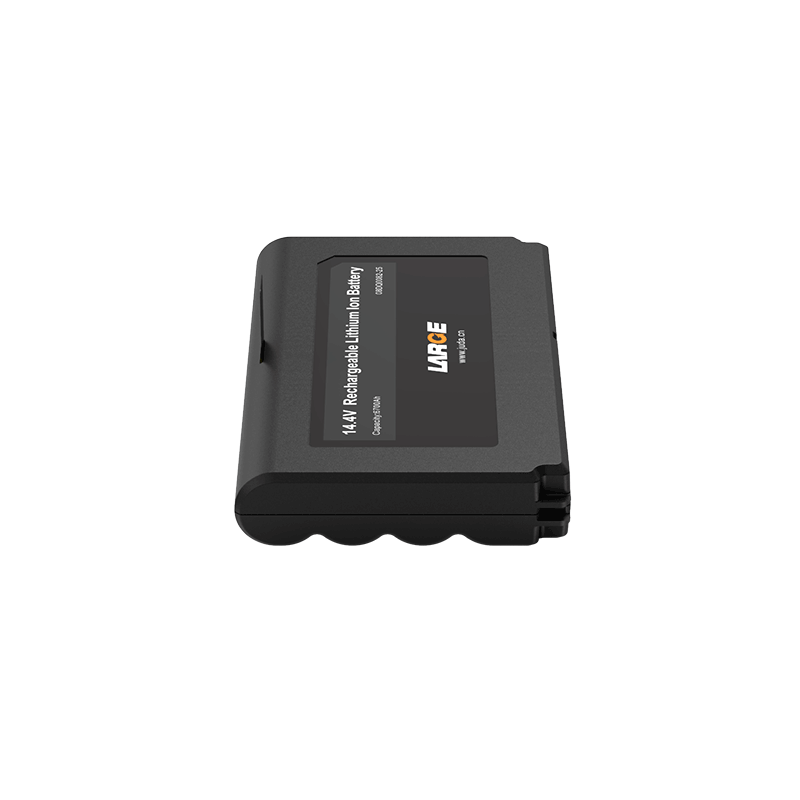

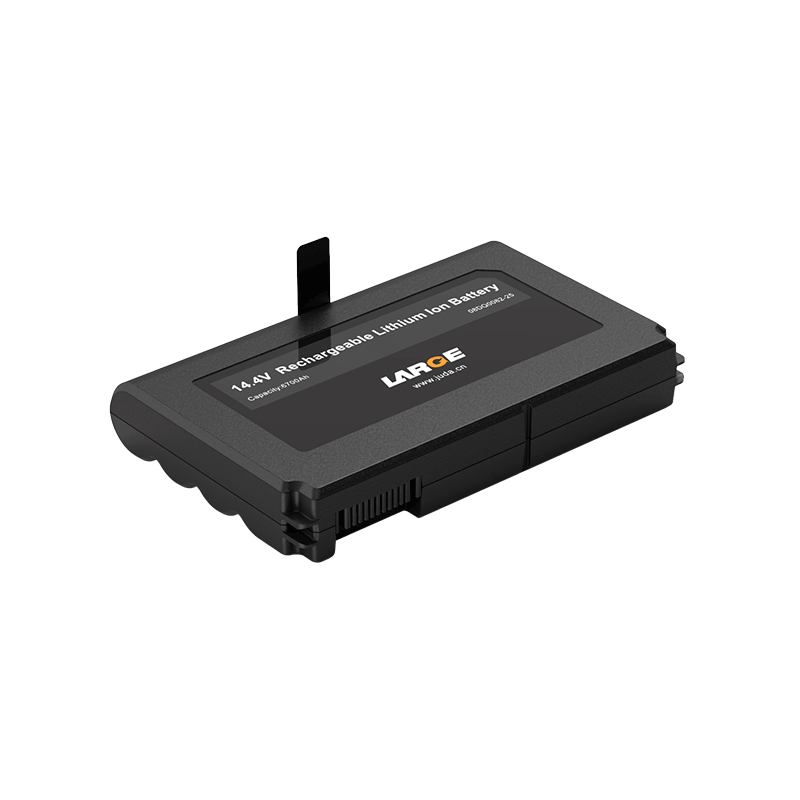

14.4V 6700mAh B-ultrasound 18650 Lithium-ion Battery Pack

Product number: 08DQ0082-25

Battery model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-4S2P/6700mAh/14.4V (smart + shell)

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤3.35A

Discharge current: 10.0A

Instant discharge current: 12.0A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤250mΩ

Battery weight: 550g

Product size: 22*88*140mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Communication protocol: SMBUS

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: B-ultrasound machine, medical equipment
