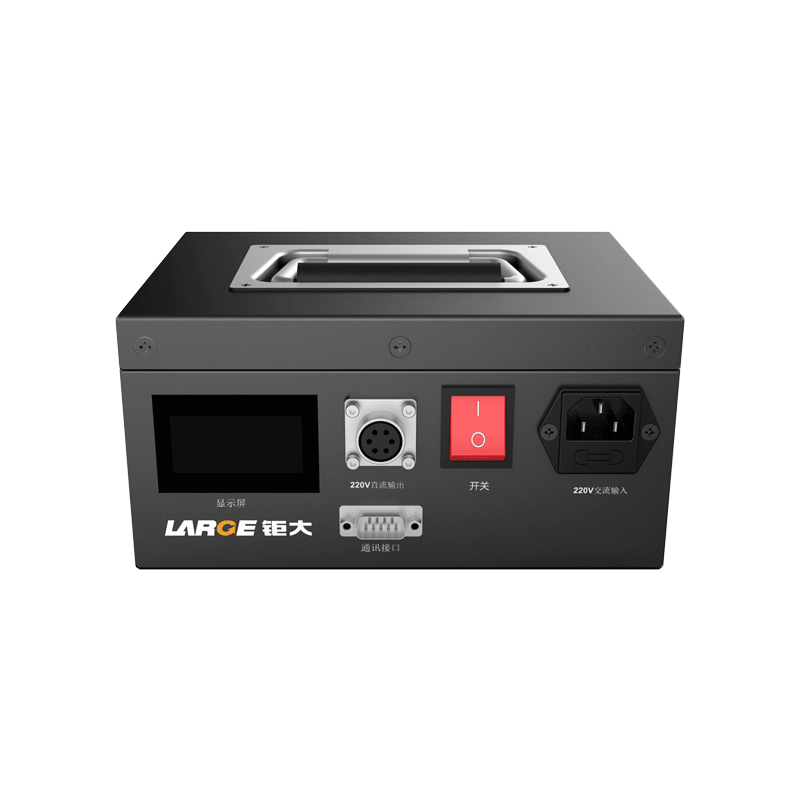

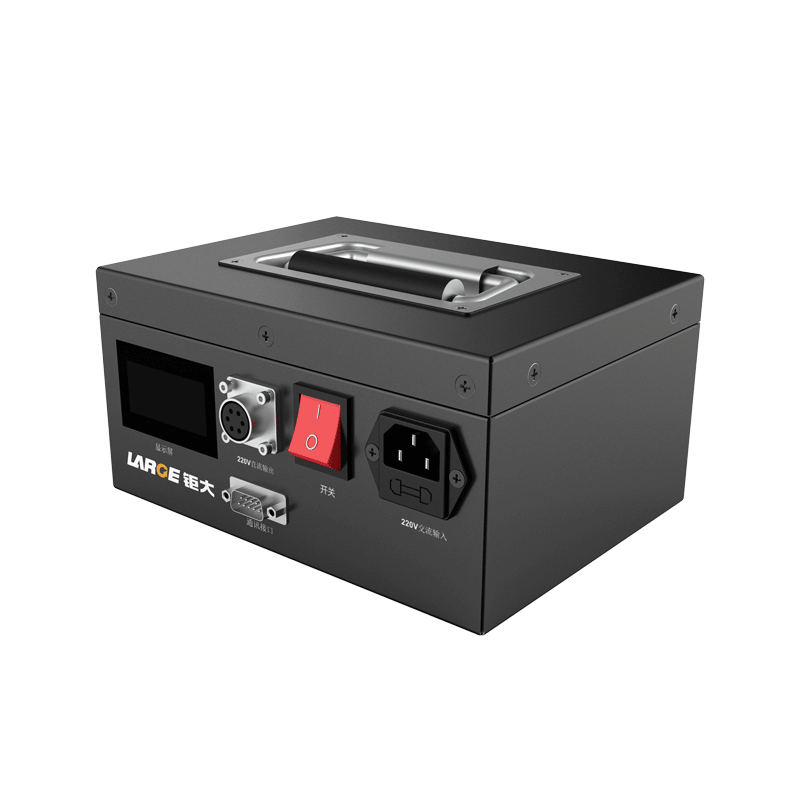

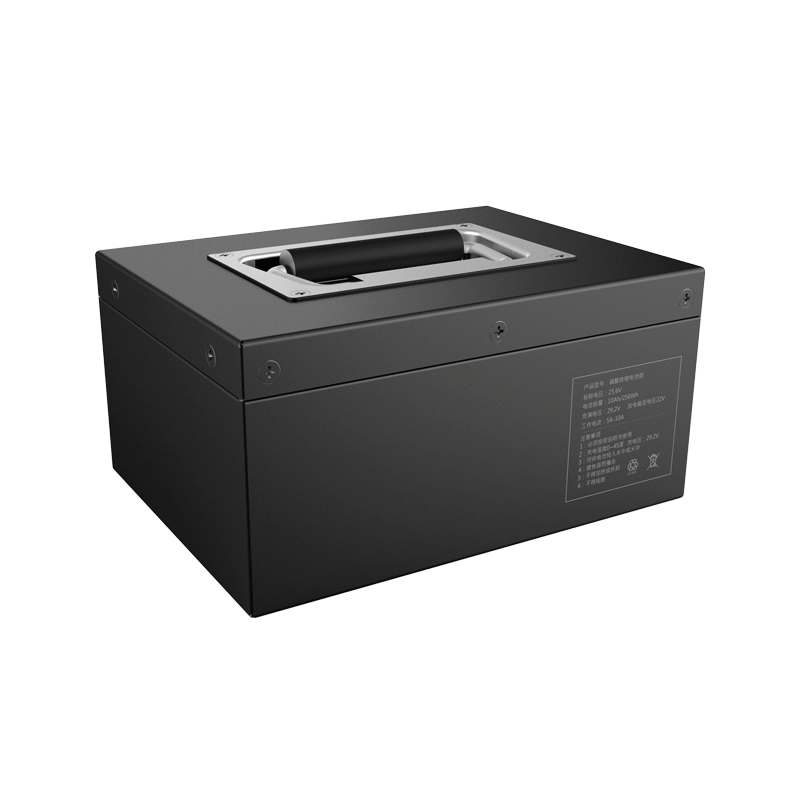

Custom Lithium ion Battery Pack
Product number: 09AQ505-01
Cell model：26650/3.2V/3.2Ah
Battery specification: 26650-4S4P/12V/12.8Ah
Nominal voltage：12V stable voltage
Nominal capacity：12Ah
Charging voltage: 220V
Charging current: ≤1A
Discharging current: 5A
Instant discharging current: 6A
End-off voltage: 12V stable voltage
Internal resistance: ≤100m?
Battery weight: 2.5kg
Product dimension: 200×150×100（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～40 ℃
Temperature protection: 65℃±5℃
Battery case: cold rolling and metal plate
Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, temperature protection and equilibrium
Application field: test equipment
Product features
1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.
2. Output under stable voltage: output 12V stable voltages by DC-DC electric circuit to assure the power requirement of precision equipment.
3. Reliable connection: apply aviation connector, which is efficient, safe and reliable.
4. AC Charging: there is AC-DC module inside the battery, which can transfer 220V AC current into DC current for charging.
5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
