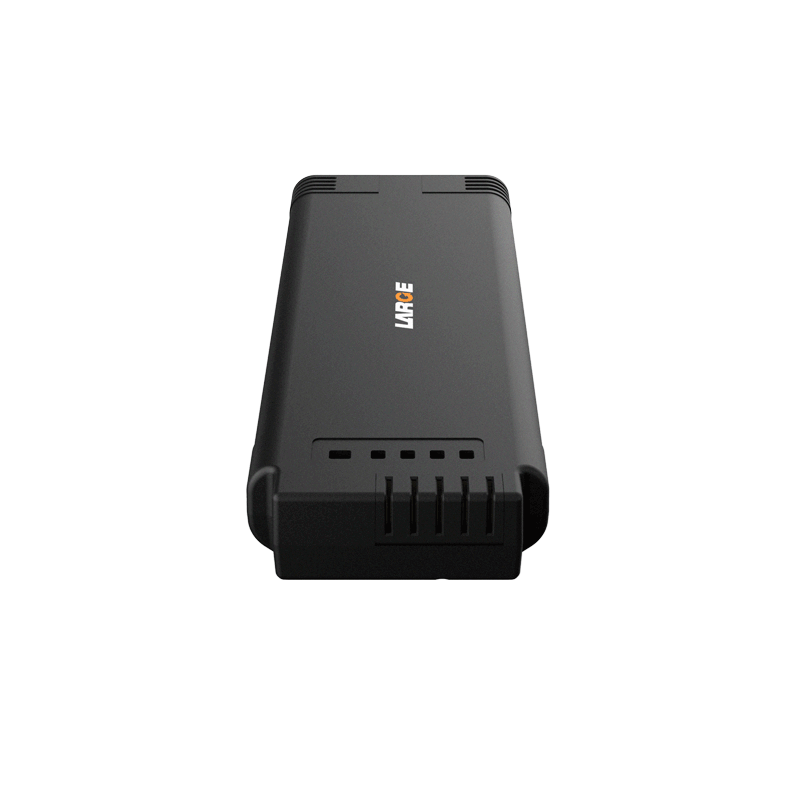

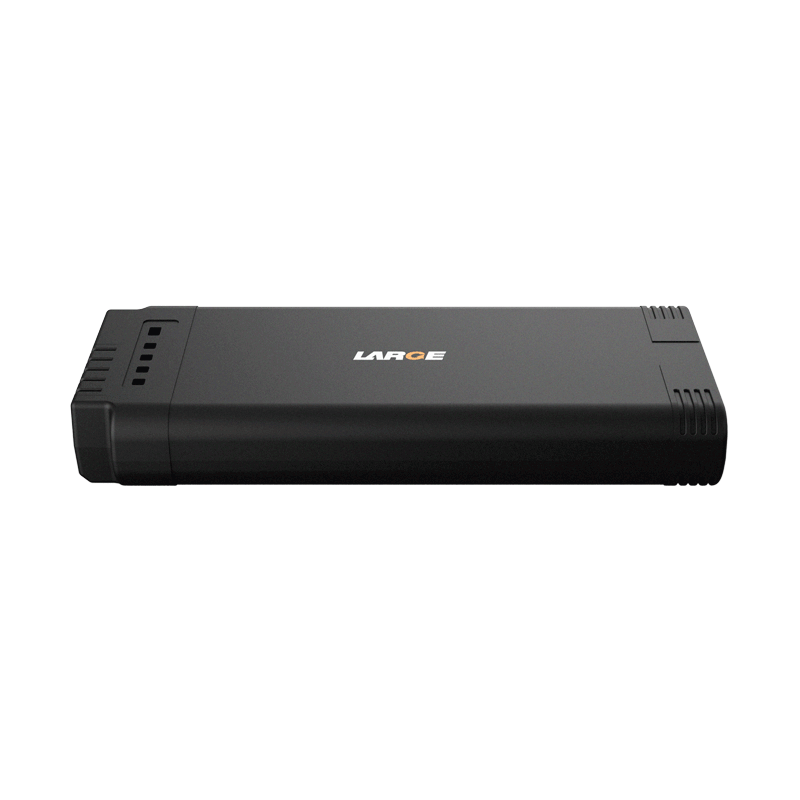

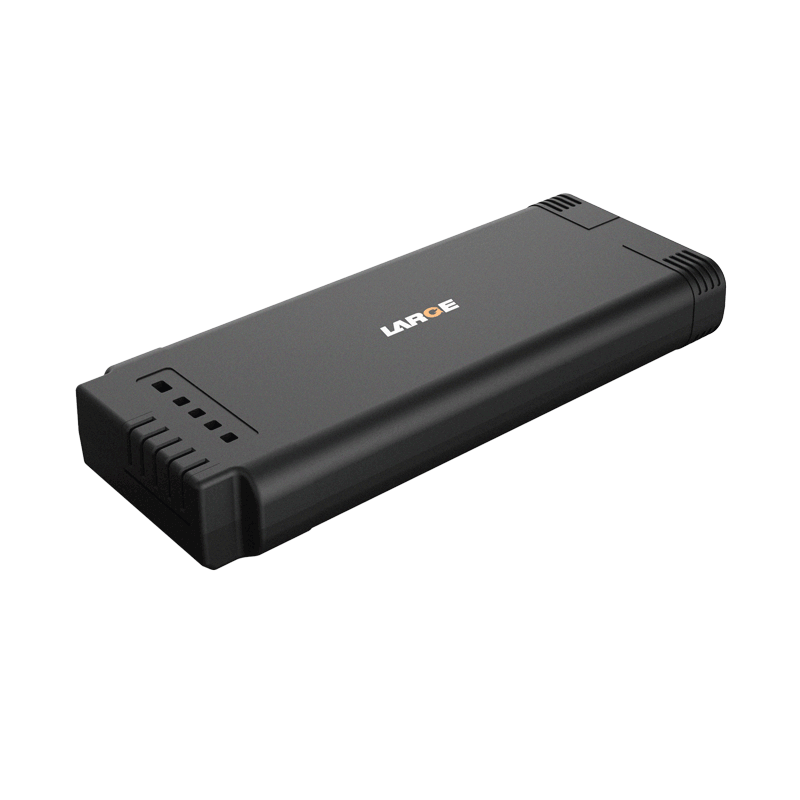

Custom Lithium ion Battery Pack
Product number: 04DQ0082-03
Cell model：18650-3350mAh-3.6V
Battery specification: 18650-3S2P-6600mAh-10.8V
Nominal voltage：10.8V
Nominal capacity：6600mAh
Charging voltage: 12.6V
Charging current: ≤2900mA
Discharging current: ≤7900mA
End-off voltage: 7.5V
Internal resistance: ≤250mΩ
Battery weight: about 310g
Product dimension: （154*62*23）±0.3mm
Charging temperature：10～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～35 ℃
Battery case: plastic housing
Communication: SMBUS
Protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection,.
Application field: respirator, medical device
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
