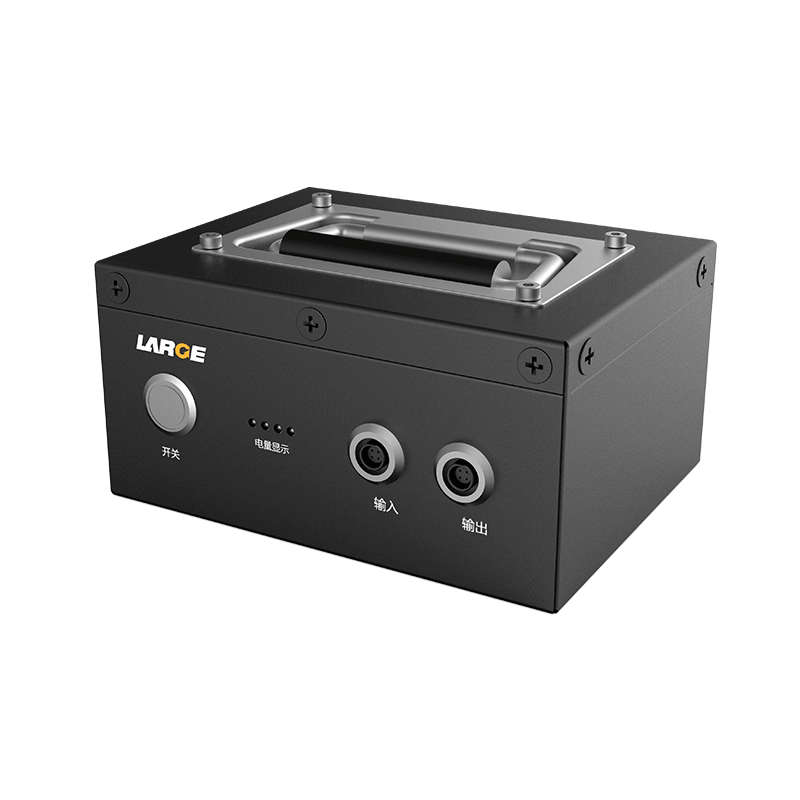

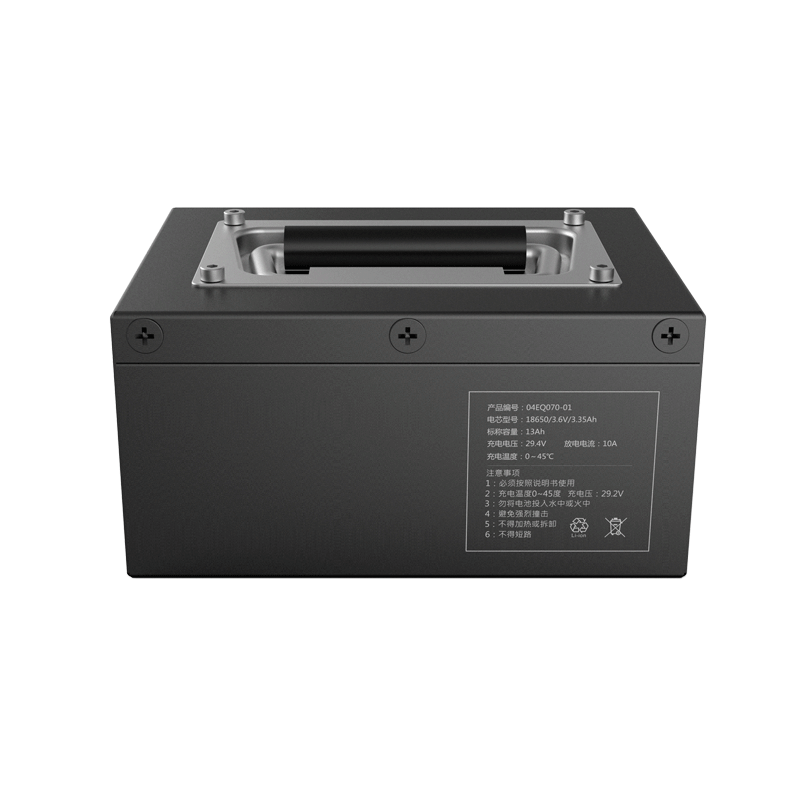

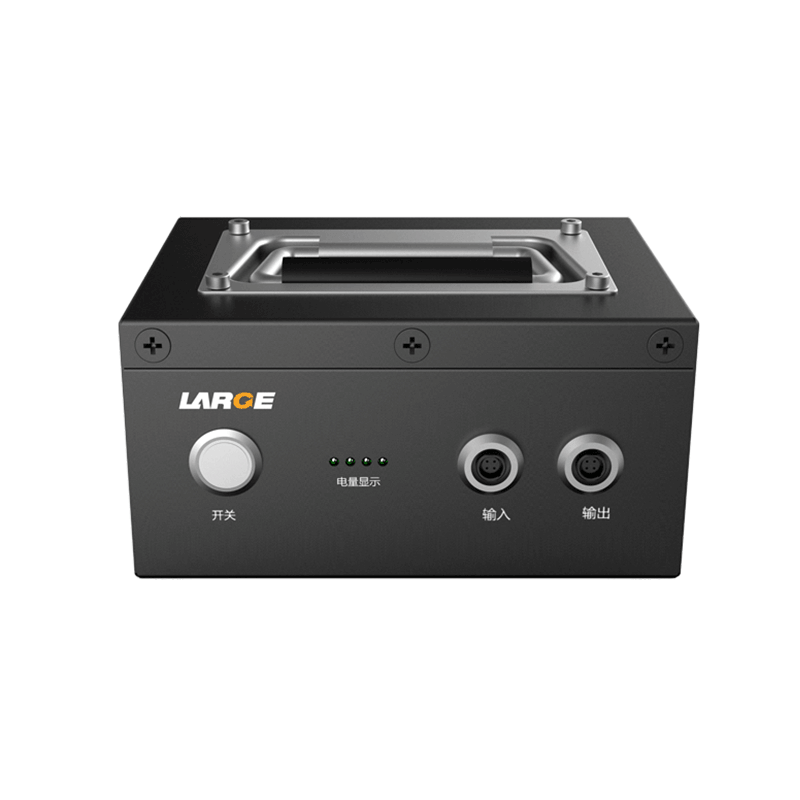

18650 24V 13Ah Lithium Power Battery Panasonic DC-DC Battery for Backpack Laser

Customization | Free Battery Solution

Product Detail

Product number: 04EQ070-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-7S4P/24V/13Ah

Nominal voltage:24V stable voltage

Nominal capacity:13Ah

Charging voltage:29.4V

Charging current: ≤6A

Discharging current: 10A

Instant discharging current: 15A

End-off voltage: 24V stable voltage

Internal resistance: ≤250mΩ

Battery weight:2kg

Product dimension: 170×130×85(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field: laser device

Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Output under stable voltage: output 24V stable voltage by DC-DC electric circuit to assure the power requirement of precision equipment.

3. Fast connect: apply push-pull self-locking aviation connector, which is efficient, safe and reliable.

4. Capacity display: show the remaining capacity of the battery directly by 4 LED light.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
