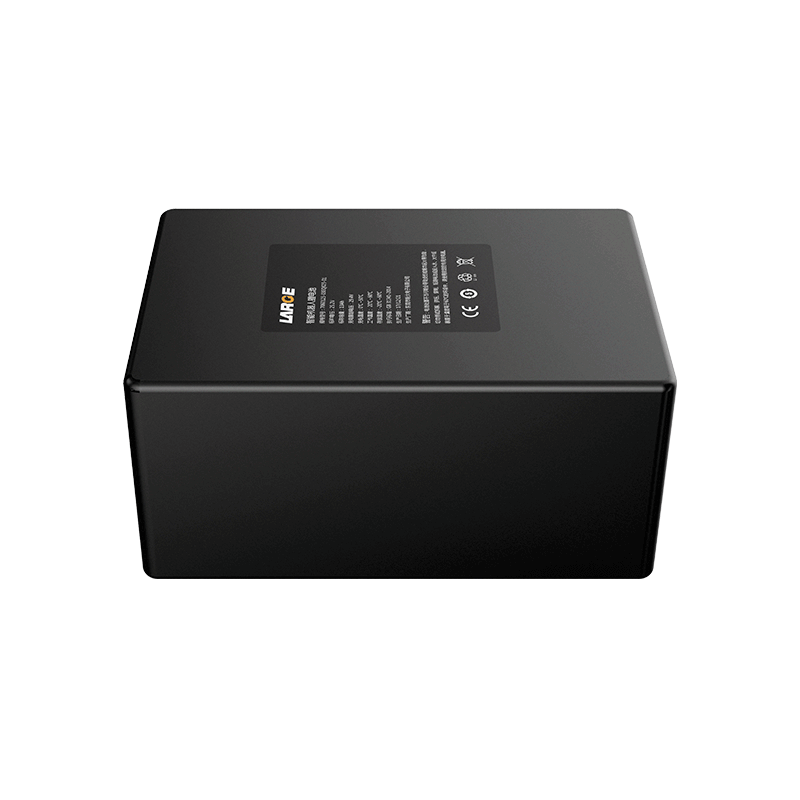

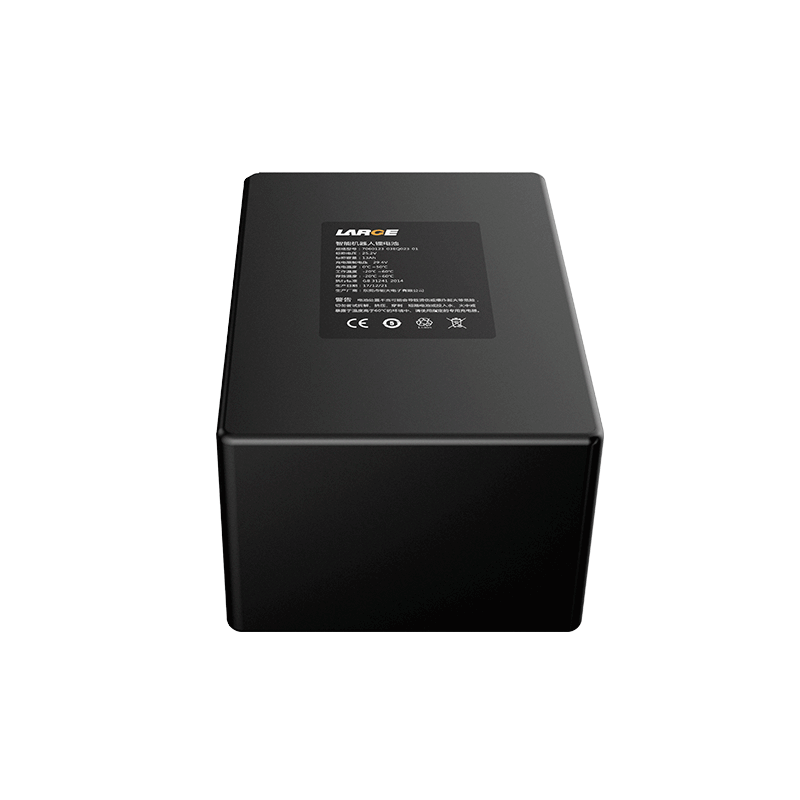

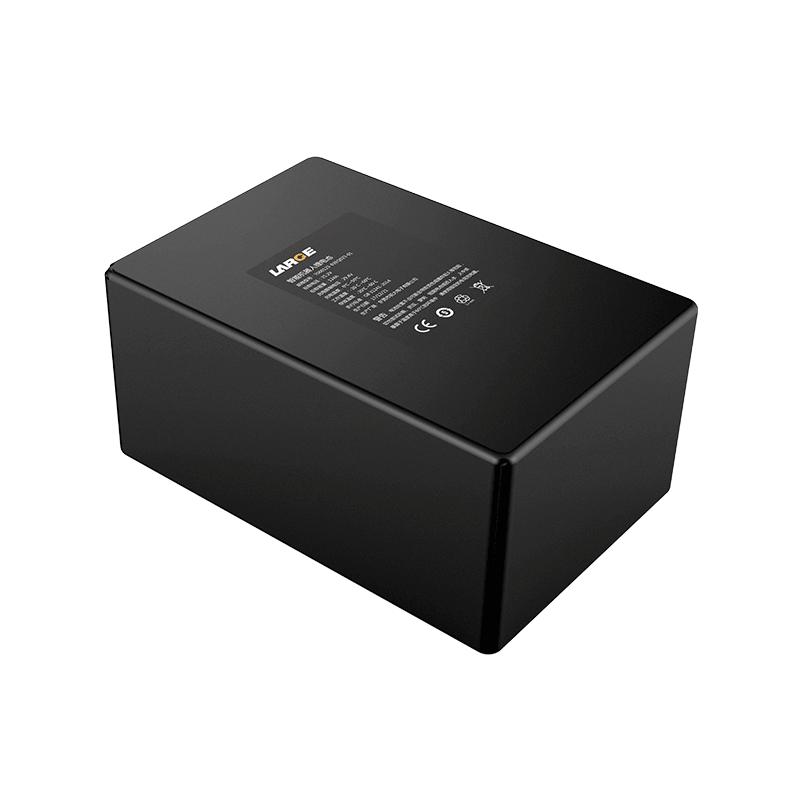

18650 24V 13000mAh Energy Storage Battery for Intelligent Robot with I2C Communication Port

Customization | Free Battery Solution

Product Detail

Product number: 03EQ023-01

Cell model:18650/3.6V/2600mAh

Battery specification: 18650-7S5P/24V/13Ah

Nominal voltage:25.2V

Nominal capacity:13Ah

Charging voltage: 29.4V

Charging current: ≤3A

Discharging current: 2.6A

Instant discharging current: 5A

End-off voltage: 17.5V

Internal resistance: ≤150mΩ

Battery weight: 1700g

Product dimension: 150*101*70mm(Max)

Charging temperature:0~+50℃

Discharging temperature: -20~60℃

Storage temperature: -20~60℃ ℃

Temperature protection: 65℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, I2C communication, etc.

Application field: intelligent robot, robotic arm, etc.


Product features

1. Communicating function: use I2C communication mode to monitor and transfer battery information.

2. Hardware output terminal: adopt method of leading into the same terminal to strengthen the reliability of conductivity.

3. Data communication management: adopt precise IC+TI charger management chip, accurate data transmission and exact temperature control so as to try our best to eliminate the security risks.

5. The battery pack has good safety performance, nice low-temperature capability and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
