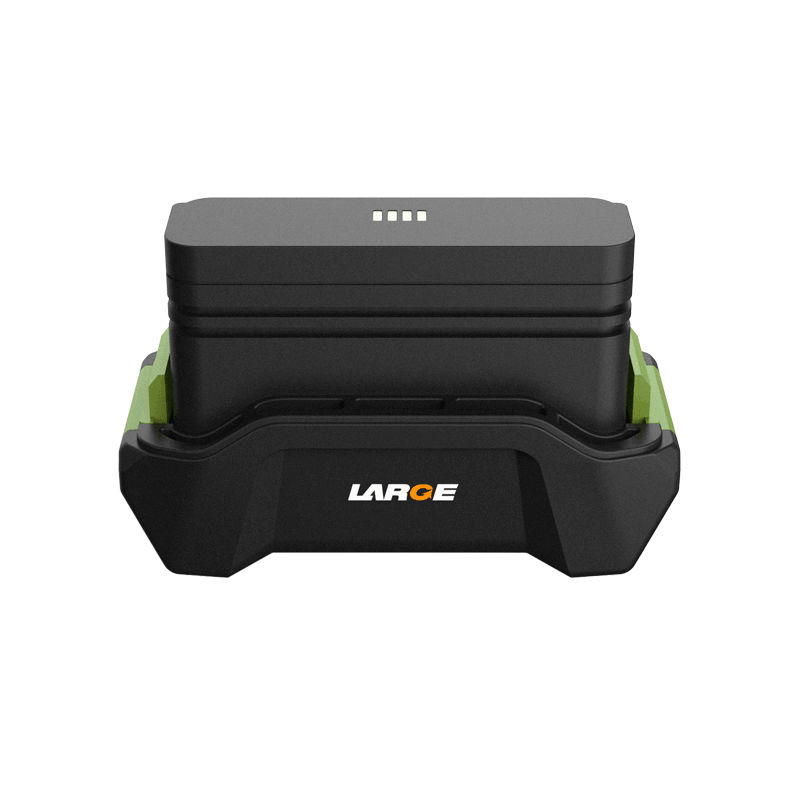

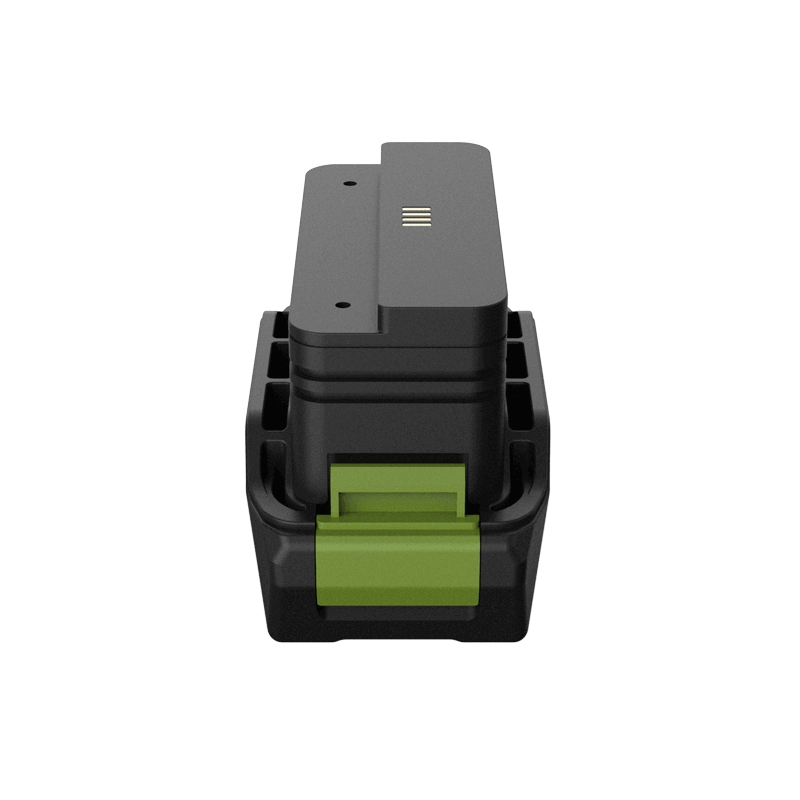

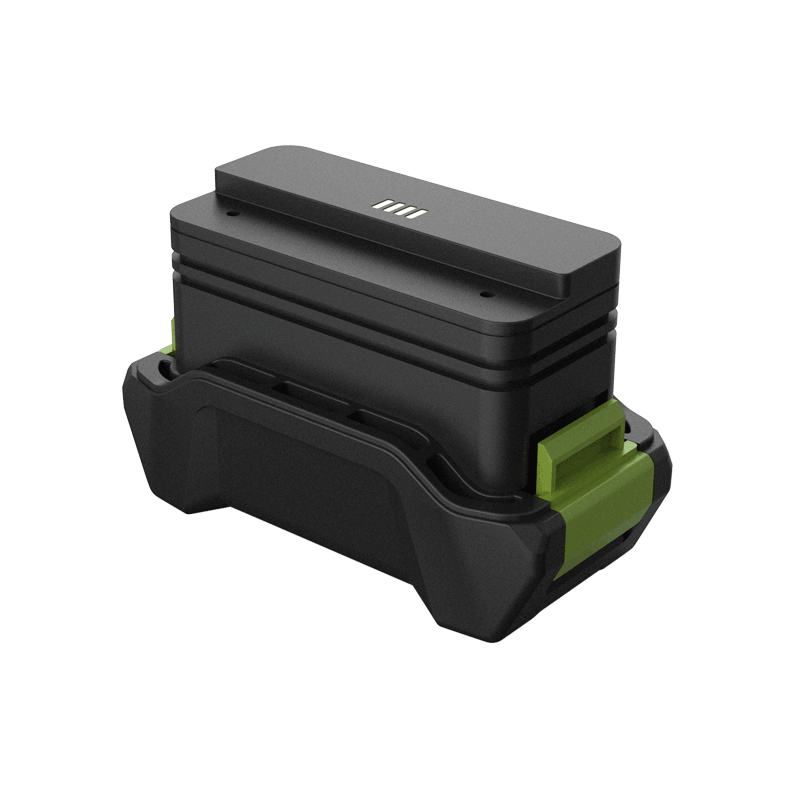

Custom Lithium ion Battery Pack
Product number: 35AQ658-01
Cell model：LA105634EX/1900mAh/3.6V
Battery specification: LA105634EX-2P/3800mAh/3.6V
Nominal voltage：3.6V
Nominal capacity：3800mAh
Charging voltage: 4.2V
Charging current: 760mA（0~+20℃）
Discharging current: 1900mA（-10~+55℃）
End-off voltage: 3.0V
Internal resistance: ≤180mΩ
Battery weight: 100g
Product dimension: 63.9*28.9*49.5mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -10～45℃ less than one month
Battery case: ABS+PC case
Battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: man-pack handheld equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
