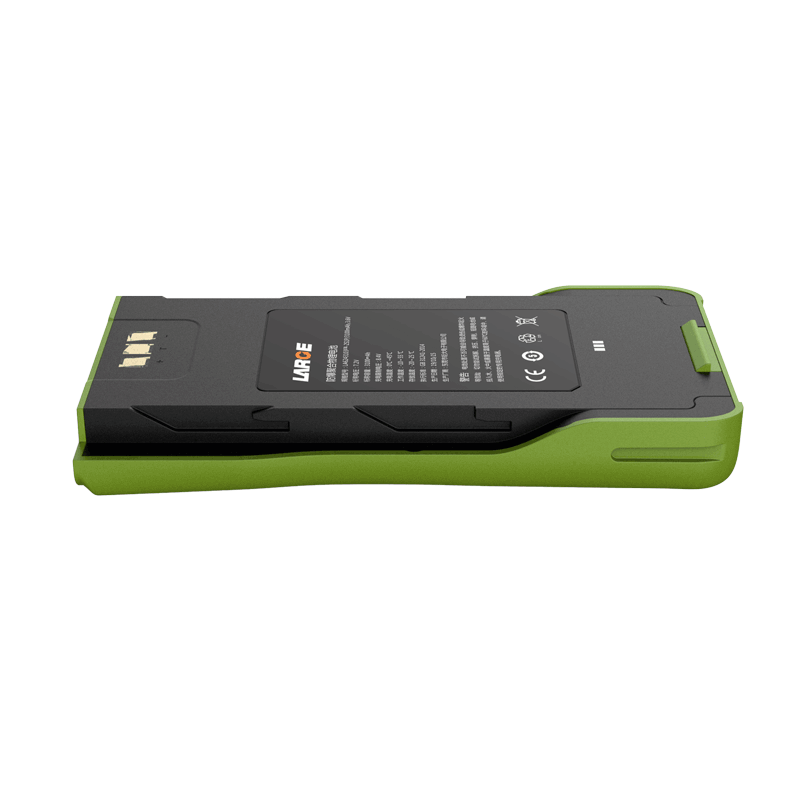

Custom Lithium ion Battery Pack
Product number: 35AQ009-07
Cell model：LA6243103FB/3100mAh/3.6V
Battery specification: LA6243103FB-2S1P/3100mAh/7.2V
Nominal voltage：7.2V
Nominal capacity：3100mAh
Charging voltage: 8.4V
Charging current: ≤0.62A
Discharging current: 1.55A
Instant discharging current: 3.1A
End-off voltage: 6.0V
Internal resistance: ≤160mΩ
Battery weight: 150g
Product dimension: 119*62*16(±0.2,mm)
Charging temperature：0～45℃
Discharging temperature: -10～55℃
Storage temperature: -20～25℃
Battery case: IP68
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: Oil station, gas station, mining, etc.
Product features
1. Low self-discharge.
2. The battery pack has good security and long cycling life.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
4. Product design refers to GB3836 / Exib iiB T4.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
