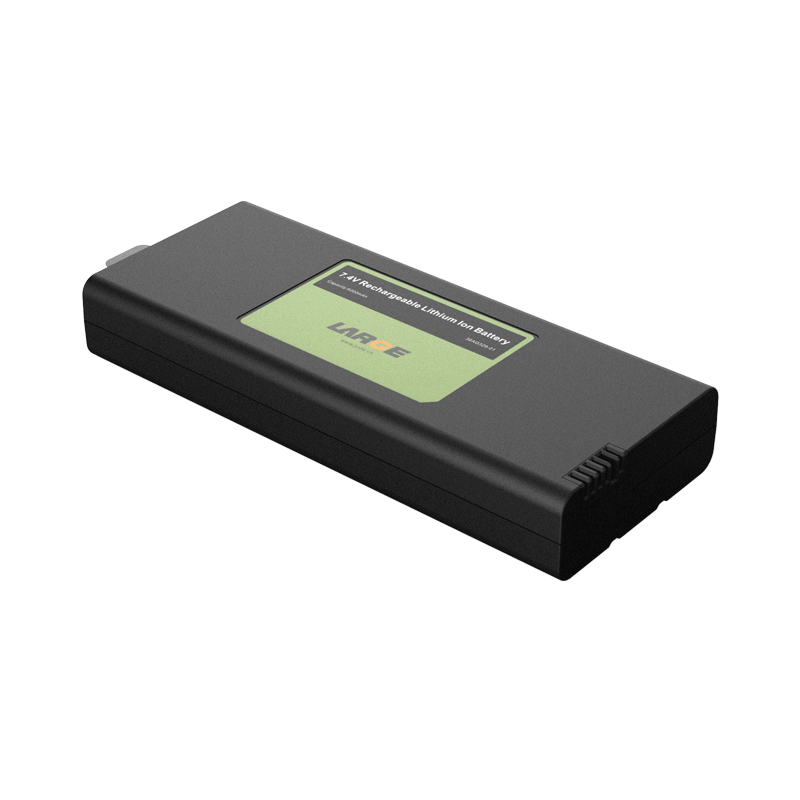

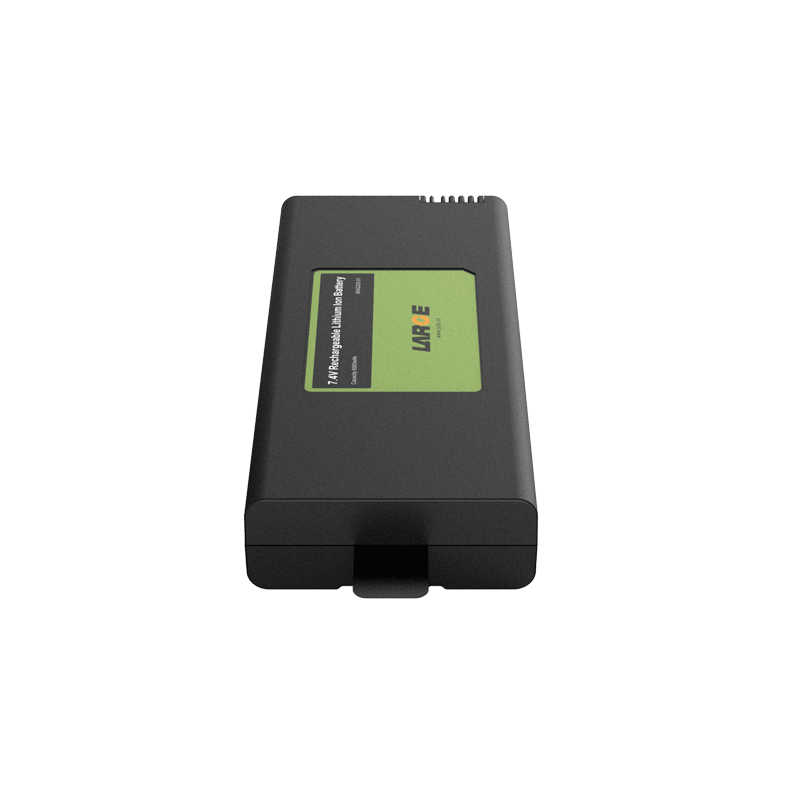

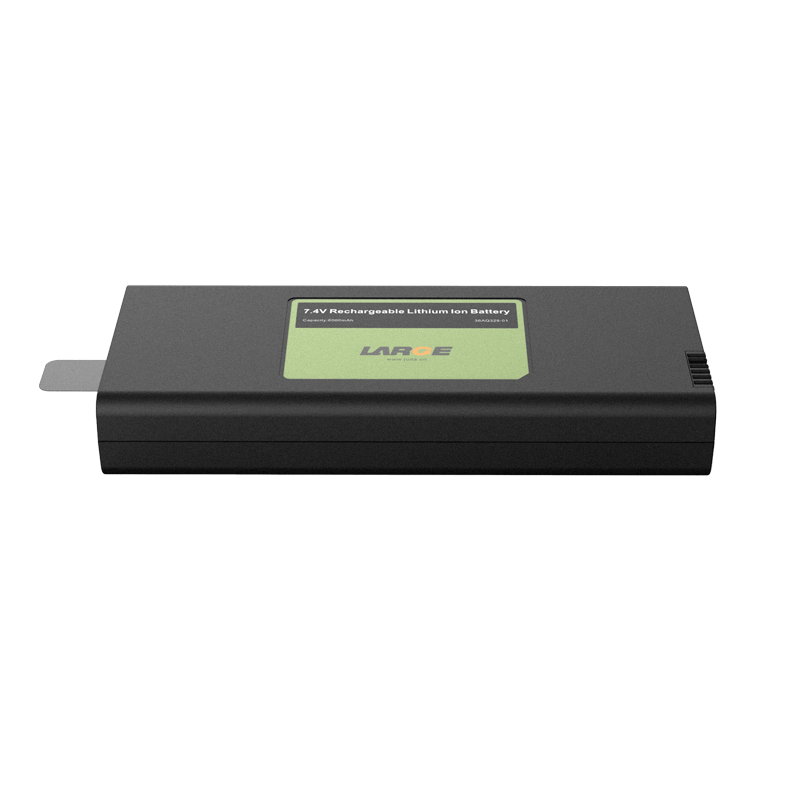

Custom Lithium ion Battery Pack
Product number: 36AQ329-01
Cell model：18650-2200mAh-3.7V
Battery specification: 18650-2S3P-6000mAh-7.4V
Product dimension: 144*59.8*22.5mm（Max）
Nominal voltage：7.4V
Nominal capacity：6000mAh
Charging voltage: 8.4V
Charging current: ≤3A
Discharging current: 1.2A
Instant discharging current: 3A
End-off voltage: 5.0V
Internal resistance: ≤180mΩ
Battery weight: 350g
Charging temperature：0～45℃
Discharging temperature: -40～60 ℃
Storage temperature: -20～35℃
Battery case: ABS+PC case
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection, ESD protection, etc.
Application field: apparatus, navigation equipment, low temperature discharge equipment
Product features
1. ABS+PC case increase the reliability and immobility of battery.
2. Connector plug outlet: adopt gold plating shrapnel output mode to increase conductive reliability.
3. Battery communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmit and precise temperature control to maximize the elimination of security risks.
4.Discharge at low temperature -40℃.
5. The battery pack has good safety performance, nice discharge performance and long cycle life.
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
