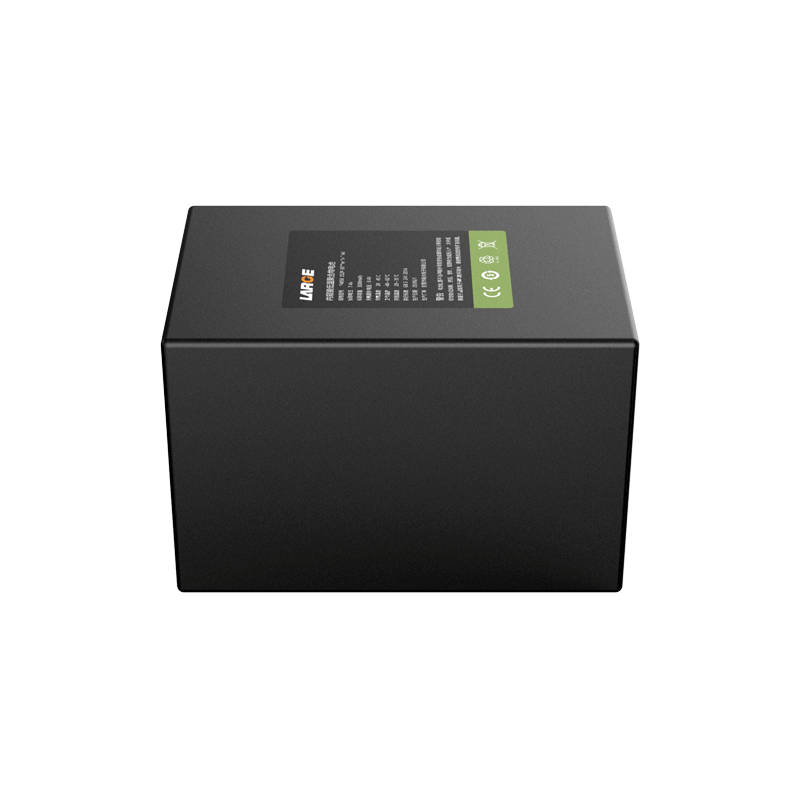

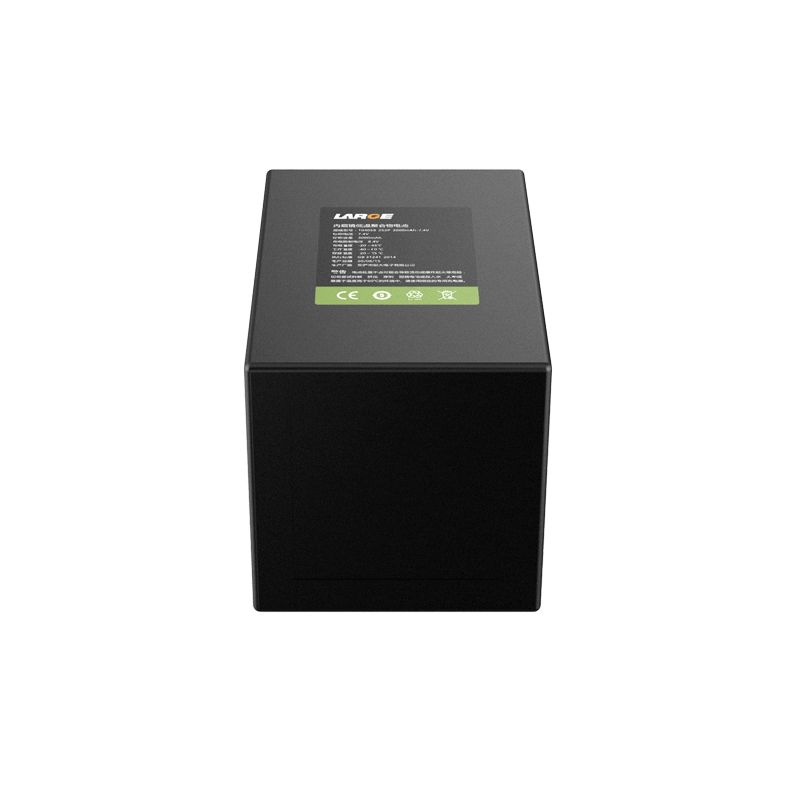

7.4V 3000mAh Lithium Polymer Battery for Endoscope

Customization | Free Battery Solution

Product Detail

Product number: 01WQ0038-02

Cell model:104058-1500mAh-3.7V

Battery specification: 104058-2S2P-3000mAh-7.4V

Nominal voltage:7.4V

Nominal capacity:3000mAh

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 0.6A

Instant discharging current: 3A

End-off voltage: 6.0V

Internal resistance: ≤220mΩ

Battery weight: 200g

Product dimension: 63*42.5*41mm(Max)

Charging temperature:-20~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~35℃

Battery case: blue PVC shrink film package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, ESD protection, etc.

Application field: low temperature charge and discharge special equipment


Product features

1. Blue PVC shrink film is simple, reliable and easy to install.

2. Connector output terminal: adopt JST plug to increase conductive reliability.

3. Low temperature -40℃ discharging lithium ion battery

4. Low temperature -20℃ charging lithium ion battery

5. Battery management: Use imported Seiko protection chip with good stability, high precision monitor, accurate control, ESD protection and temperature protection to maximize the elimination of safety risks.

6. The battery pack has good safety performance, nice discharge performance, low temperature rechargeable and hold over 60% power at -40℃.

7. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
