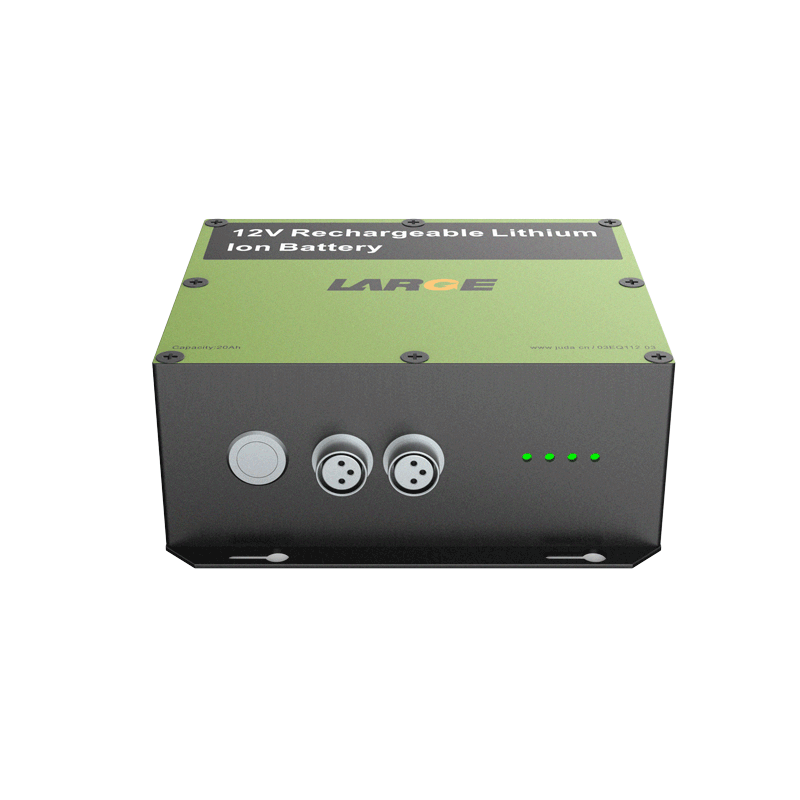

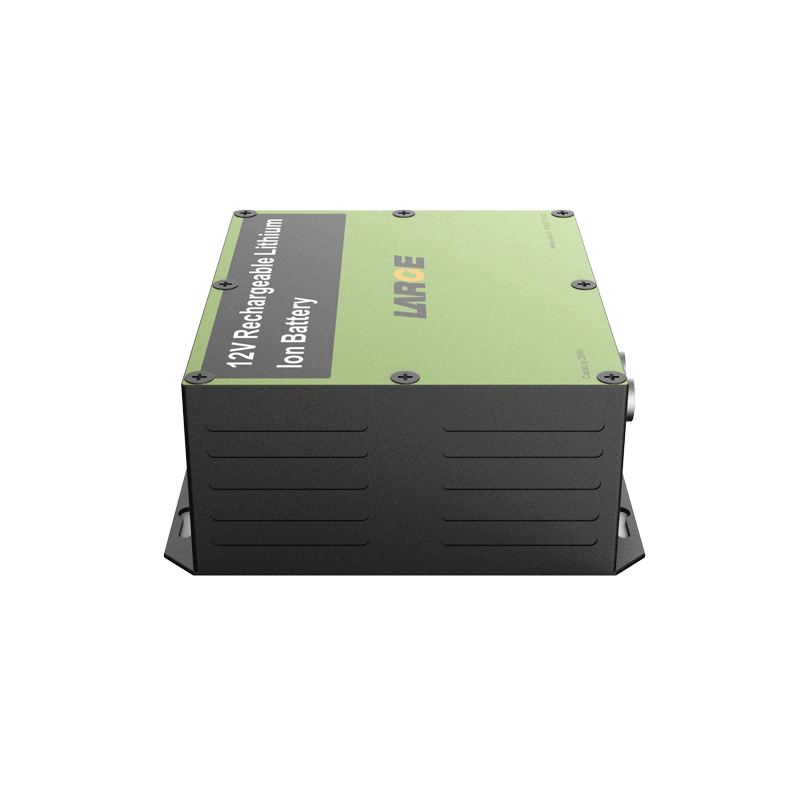

12V 20Ah LA148F20C Low Temperature LiFePO4 Battery for Special Equipment

Customization | Free Battery Solution

Product Detail

Product number: 03EQ112-03

Cell model:LA148F20C/3.2V/20000mAh

Battery specification: LA148F20C-2S1P/6.4V(DC12V)/20Ah

Nominal voltage:DC12V stable voltage output

Nominal capacity:20Ah

Charging voltage: DC input 12V

Charging current: ≤2A

Discharging current: 3A

Instant discharging current: 10A

End-off voltage: 4V

Internal resistance: ≤120mΩ

Battery weight: 2500g including housing

Product dimension: 180*175*70mm

Charging temperature:-20~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -20~50 ℃

Temperature protection: 60℃±5℃

Battery case: aluminium alloy housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection and Smbus communication protocol, etc.

Application field: wide application, field emergency power supply, tank tablet battery, special device detector, etc.

Product features

1. Communication function: smbus communication protocol; monitor the voltage, current, capacity, temperature of the battery.

2. Fast connection: adopt push-pull self-locking aviation connector, which is fast, safe and reliable.

3. Charge: can charge at -20℃ to meet the requirements of field charging.

4. The battery pack has good security, nice low-temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Shockproof and waterproof: meet the requirements of good security and super reliable by aluminium alloy housing shockproof structure design.
