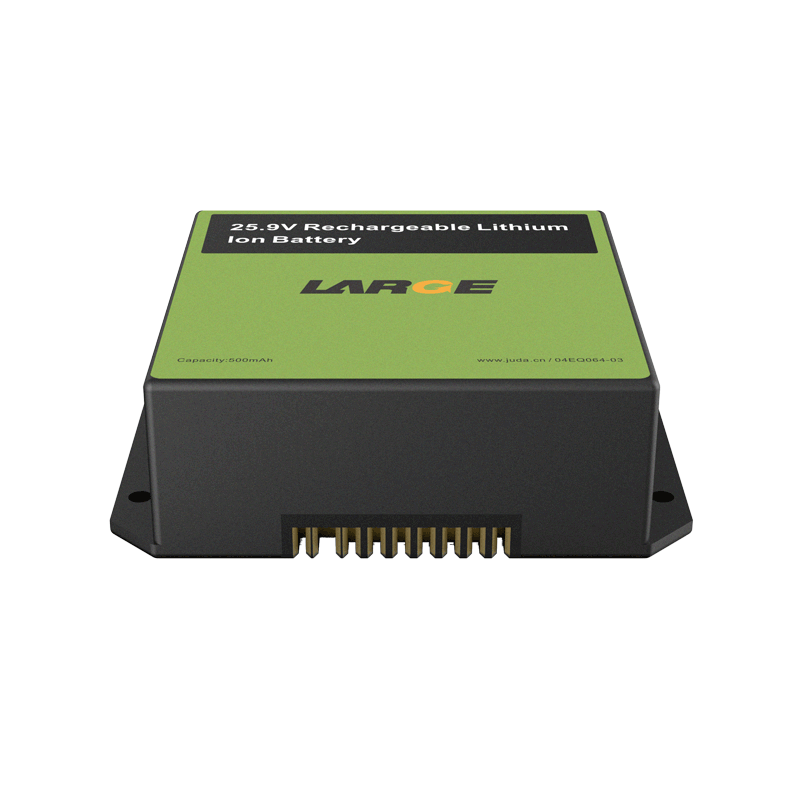

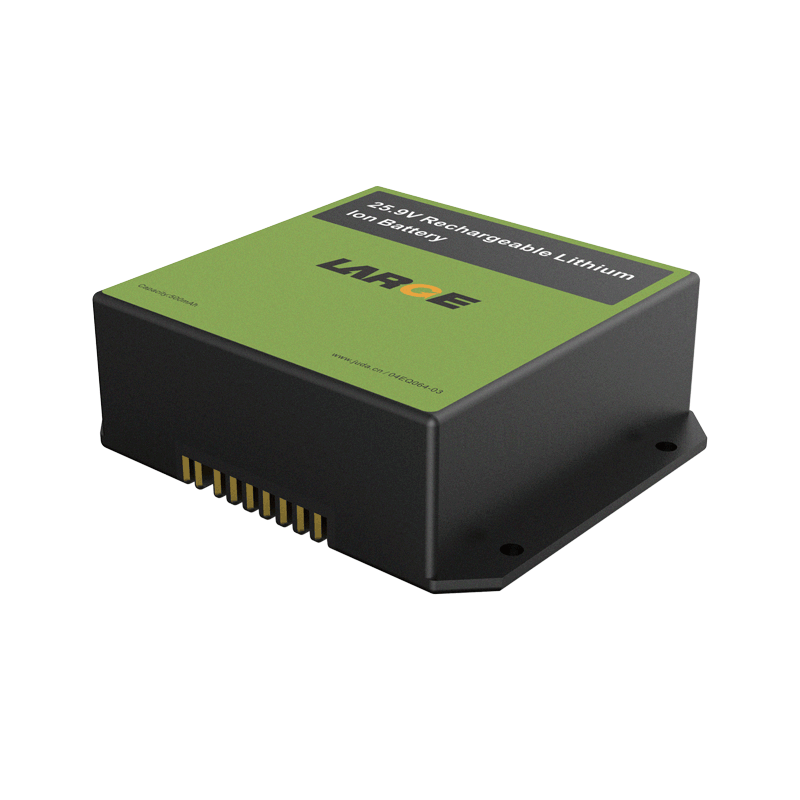

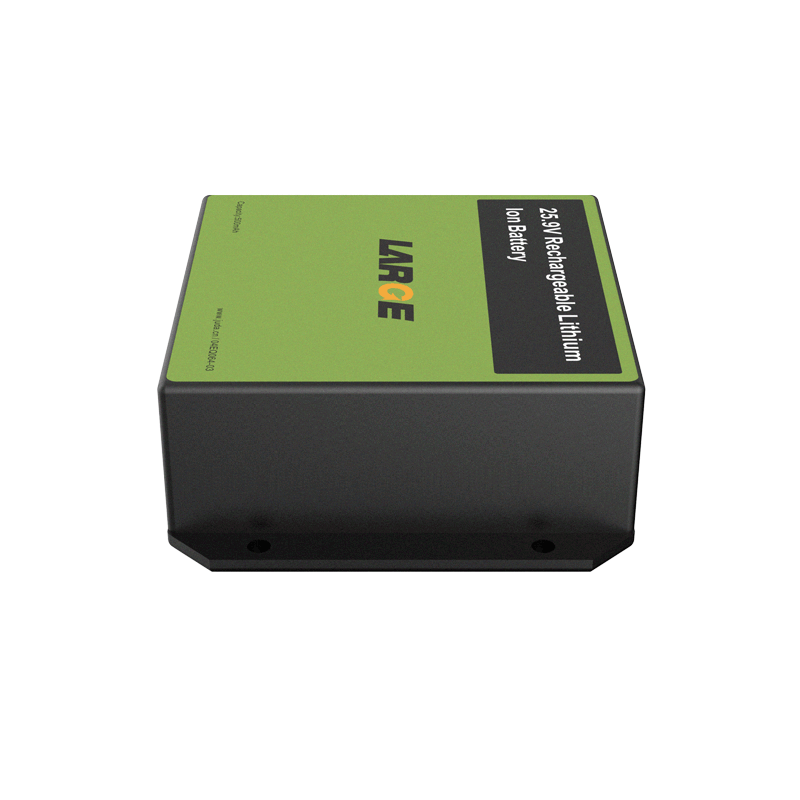

Custom Lithium ion Battery Pack
Product number: 04EQ064-03
Cell model：254545/3.7V/500mAh
Battery specification: LA254545/7S1P/500mAh/25.9V
Nominal voltage：25.9V
Nominal capacity：500mAh
Charging voltage: 29.4V
Charging current: ≤500mA
Discharging current: 0.5A
Instant discharging current: 1A
End-off voltage: 19.25V
Internal resistance: ≤150mΩ
Battery weight: 500g
Product dimension: 50×50×20（Max）
Charging temperature：0～45℃
Discharging temperature: -40～60℃
Storage temperature: -20～40℃
Battery case: aluminium alloy
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
Application field:special device
Product features
1. Dustproof and shockproof: fill in the shockproof structure inside the aluminium alloy housing and accept high impact to satisfy the requirements of good security and nice reliability.
2. Reliable connection: adopt aviation connector, which is fast, safe and reliable.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
