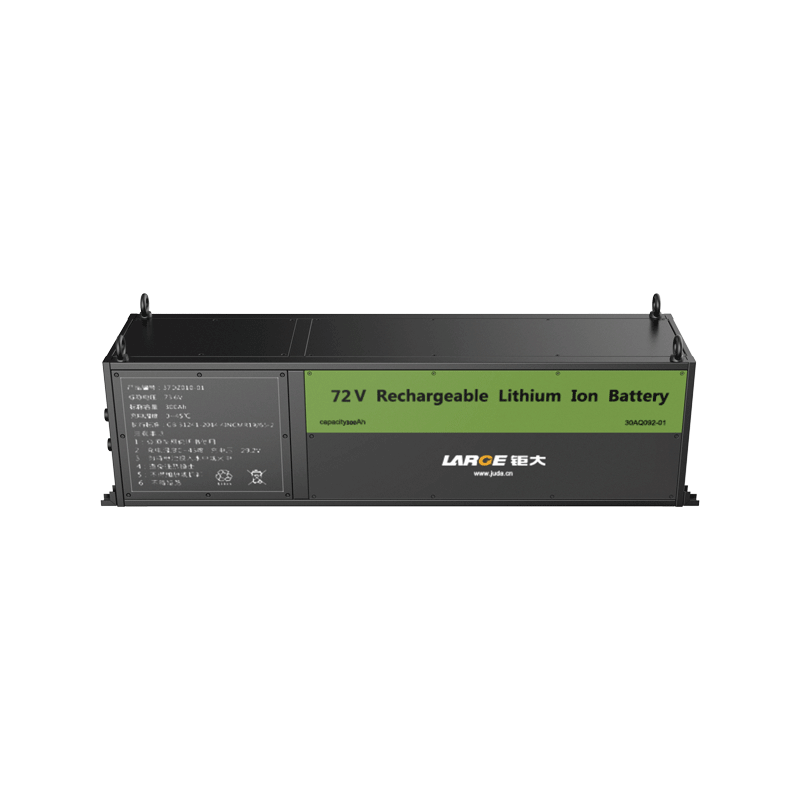

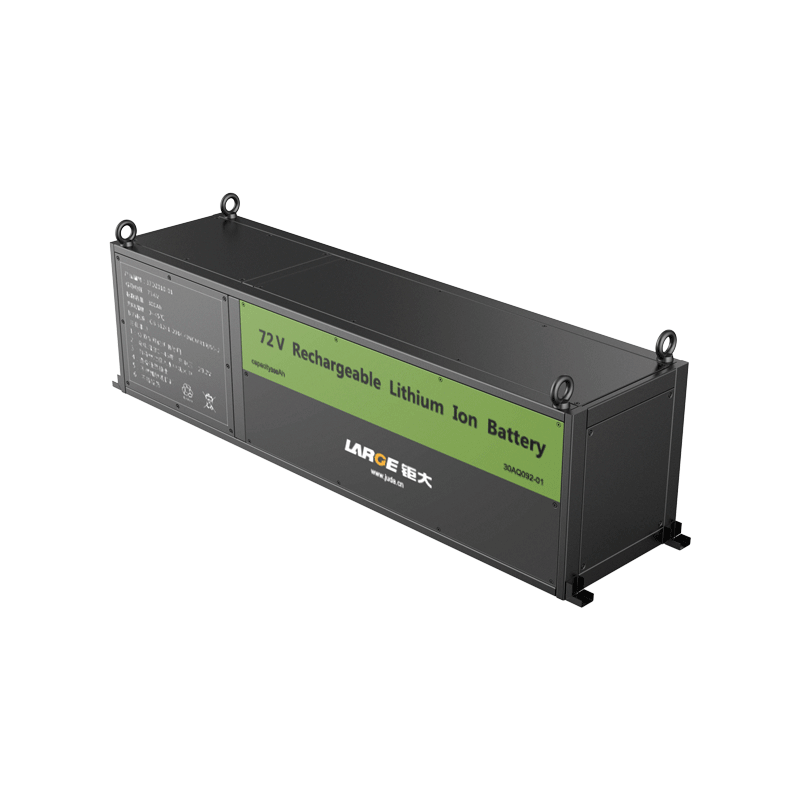

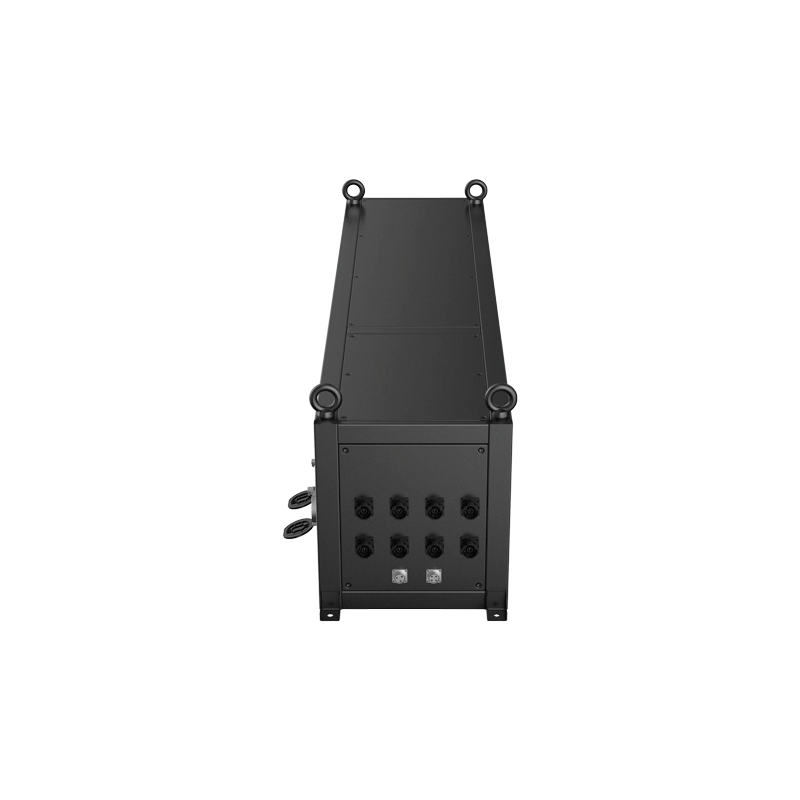

72V 300Ah Lithium Titanate Battery for Sightseeing Train with Can Communication Management

Customization | Free Battery Solution

Product Detail

Product number: 37DZ010-01

Cell model:BLDB2R4025C -2.3V/25Ah

Battery specification: 32S20P/72V/300Ah

Nominal voltage:73.6V

Nominal capacity:300Ah

Charging voltage: 89.6V

Charging current: ≤500A

Discharging current: 700A

Instant discharging current: 1000A

End-off voltage: 51.2V

Internal resistance: ≤100mΩ

Battery weight: 450Kg

Product dimension: 450*1700*600mm *2(Max)

Charging temperature:-20~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Temperature protection: 70℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: sightseeing train

Product features

1. Fast charge under 500A

2. Discharge at large current

3. Lithium titanate battery

4. CAN communication and relay control

5. The battery pack has good security and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
