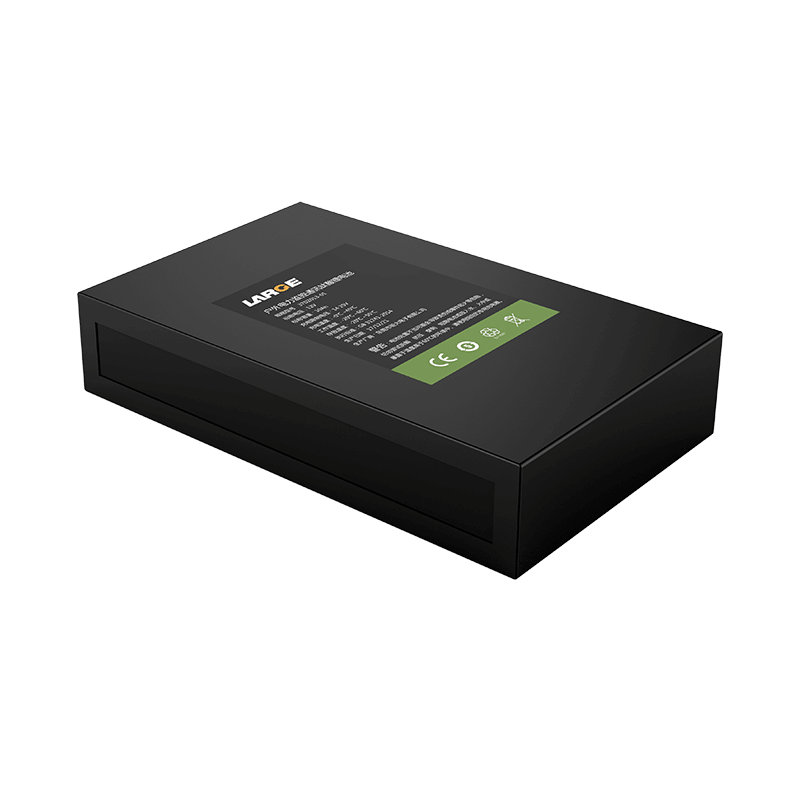

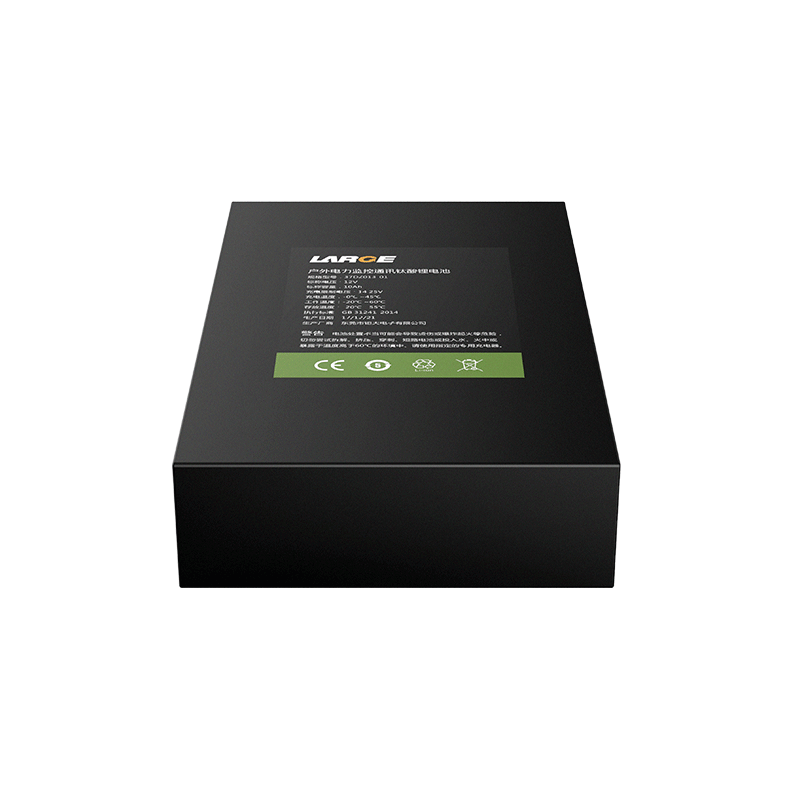

12V 10Ah Lithium Titanate Battery for Outdoor Power Monitoring Communication

Customization | Free Battery Solution

Product Detail

Product number: 37DZ013-01

Cell model:40120 2.4V/10Ah

Battery specification: 5S2P/12V/10Ah

Nominal voltage:12V

Nominal capacity:10Ah

Charging voltage: 14.25V

Charging current: ≤2A

Discharging current: 5A

Instant discharging current: 15A

End-off voltage: 7.5V

Internal resistance: ≤150mΩ

Battery weight: 1.4kg

Product dimension: 42×130×220mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~70 ℃

Storage temperature: -20~45 ℃

Battery case: PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: battery of outdoor power monitoring communication


Product features

1. Support charge at -20℃.

2. Wide temperature discharge at -20~70℃.

3. The battery pack has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
