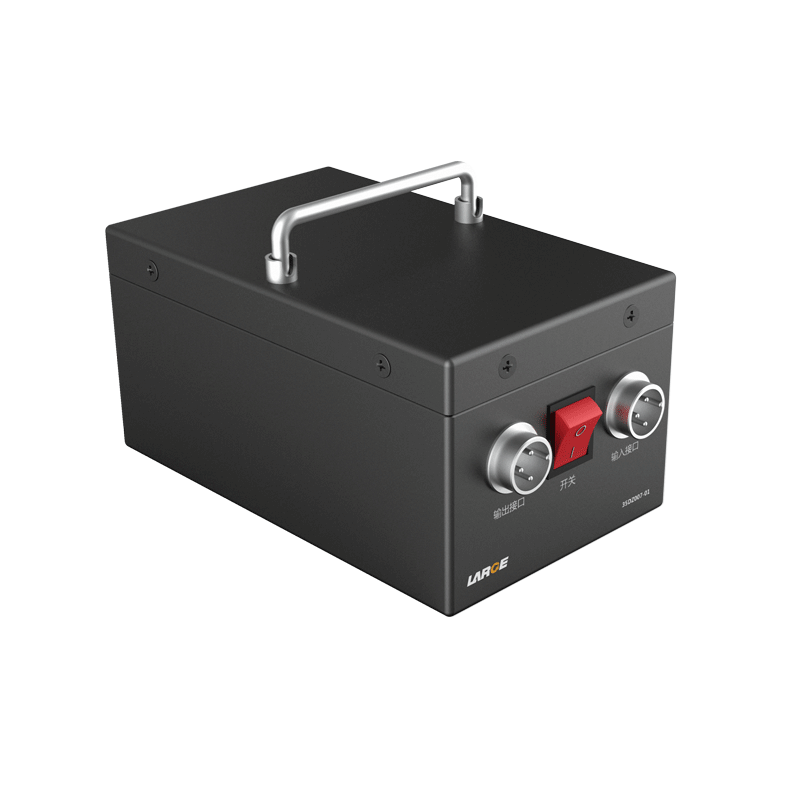

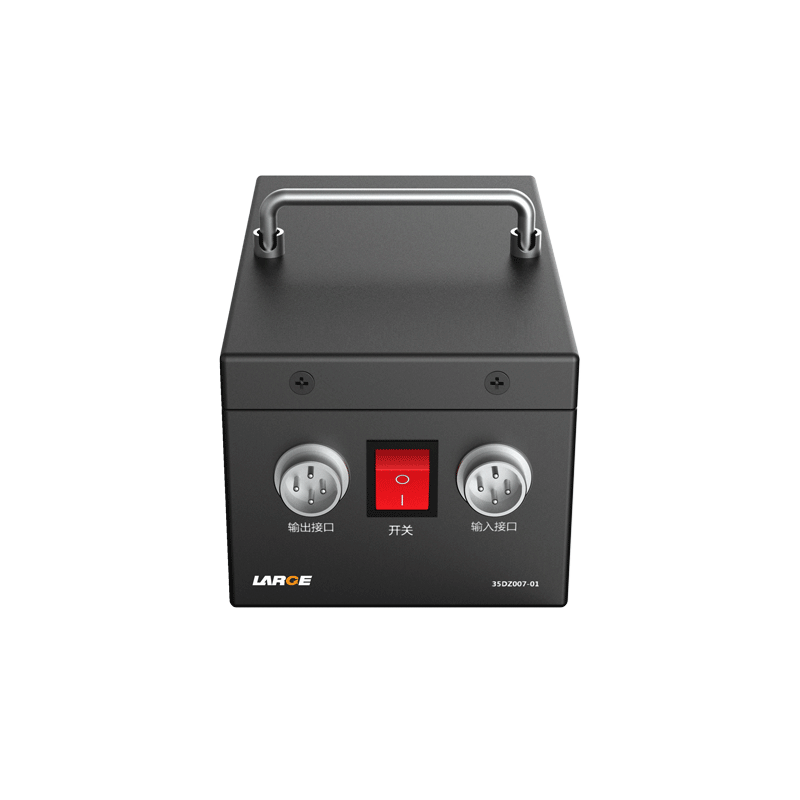

Custom Lithium ion Battery Pack
Product number: 35DZ007-01
Cell model：18650/3.6V/2.2Ah (low temperature)
Battery specification: 18650-7S5P/25.9V/10Ah
Nominal voltage：25.9V
Nominal capacity：10Ah
Charging voltage: 29.4V
Charging current: ≤5A
Discharging current: ≤10A
Instant discharging current: 35A
End-off voltage: 17.5V
Internal resistance: ≤180mΩ
Battery weight: 3000g
Product dimension: 190*120*90mm（Max）
Charging temperature：0～45℃
Discharging temperature: -40～55 ℃
Storage temperature: -40～45 ℃
Temperature protection: 65℃±5℃
Battery case: metal plate
Battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.
Application field: power battery of field vehicle
Product features
1. Small self-discharging current;
2. Discharge at low temperature;
3. Low voltage switch;
4. Have temperature protection;
5. The battery has good security and long cycle life;
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
