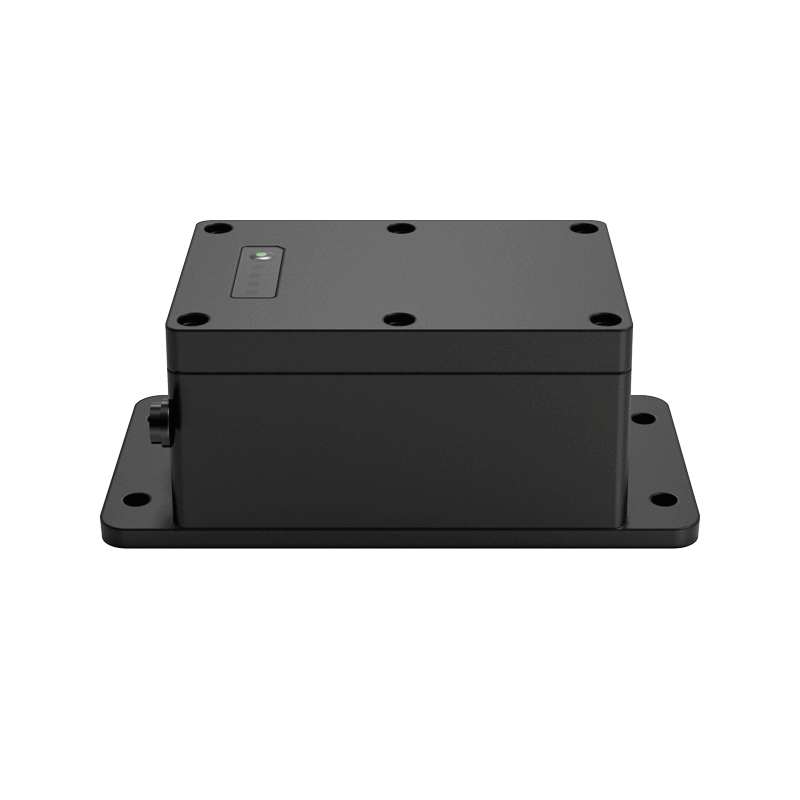

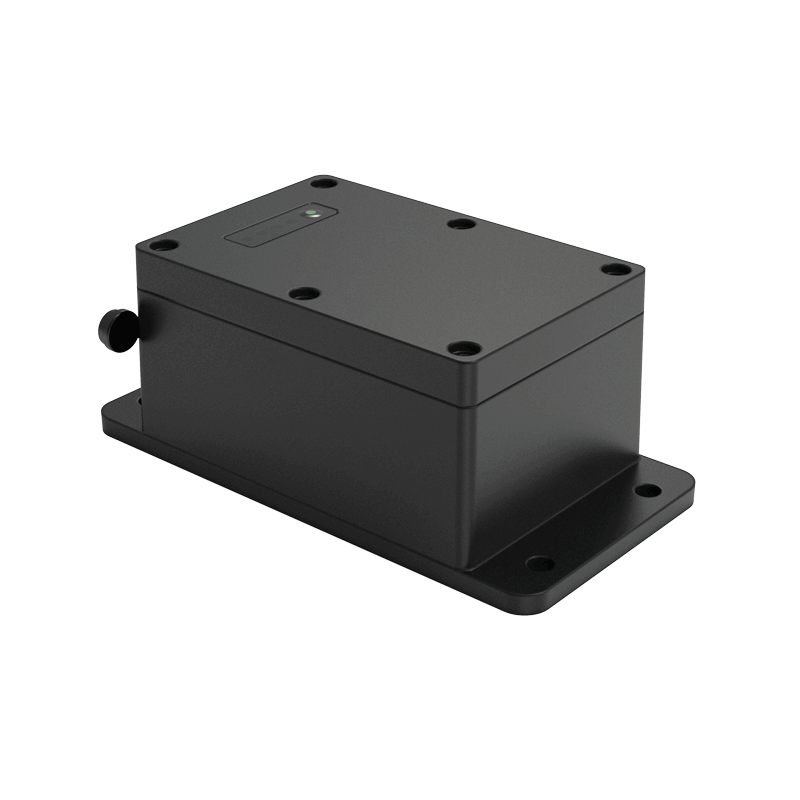

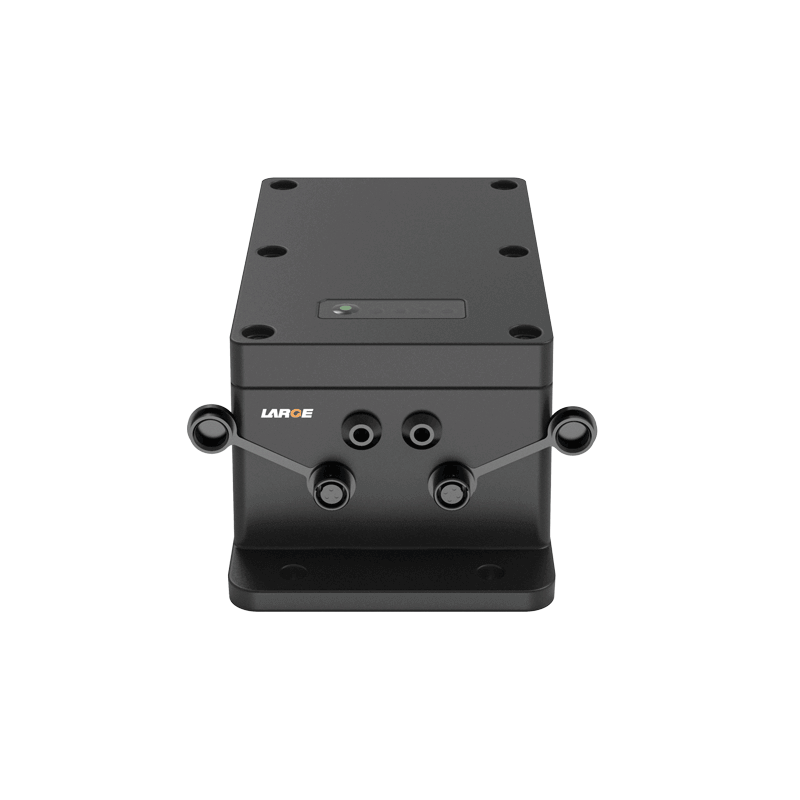

Custom Lithium ion Battery Pack
Product number: 08DQ0030-01
Cell model：INR18650-35E/3350mAh/3.60V
Battery specification: 18650-3S1P/10.8V/3350mAh
Nominal voltage：10.8V
Nominal capacity：3350mAh
Input voltage: 100-240Vac
Output voltage:8.1-16Vdc
Charging current: ≤1200mA
Discharging current: 0.5A
Instant discharging current: 1A
End-off voltage: 8.1V
Internal resistance: ≤250mΩ
Battery weight: about 550g
Product dimension: 162×82×63.5mm（L×W×H）
Charging temperature：0～45℃
Discharging temperature: -20～60℃
Storage temperature: -20～50 ℃
Battery case: industrial level
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, IIC communication, etc.
Application field: Communication,direct current UPS
Product features
1.Current/voltage: It has maximum sustainable discharge output 1A with solution integration management functions, which can realize charging and discharging at the same time. It is safe and reliable to realize seamless switching function.
2.Data communication management: It has imported software management chip, IIC communication function, accurate data transmission, precise temperature control, so as to eliminate safety hidden trouble.
3.Batteries features: Adopts imported 18650 ternary lithium batteries.
4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
