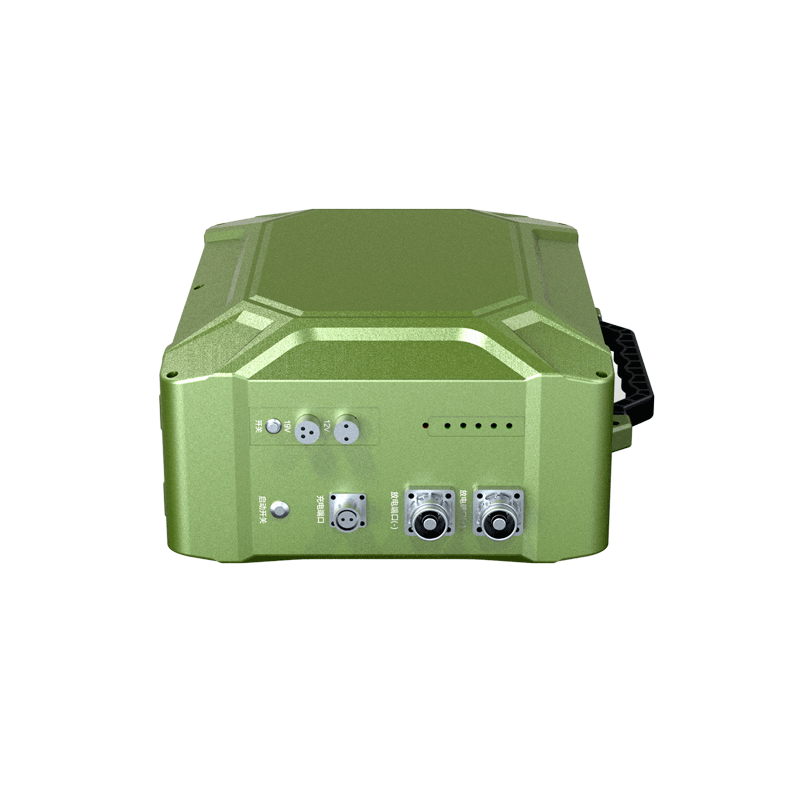

Custom Lithium ion Battery Pack
Product number: 35AQ484-01
Cell model：70104179-3.7V-9.6Ah
Battery specification: HPB-566-02(70104179-7S3P-28.0Ah-25.9V)
Nominal voltage：25.9V
Nominal capacity：28Ah
Charging voltage: 29.4V
Charging current: ≤25A
Discharging current: 30A
Instant discharging current: 3000A (starting current)
End-off voltage: 16.0V
Internal resistance: ≤50mΩ
Battery weight: 20.0kg
Product dimension: 320.0±0.2L*175.0±0.2W*123.0±0.2H(mm)
Charging temperature：0～45℃
Discharging temperature: -40～55 ℃
Storage temperature: -20～45 ℃
Battery case: MIL
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: outdoor special products
Product features
1. Current: maximum 40A discharge.
2. Low temperature, high current, continuous discharge
3. Cell characteristics: low temperature rate lithium iron phosphate battery pack
4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
