Custom Lithium ion Battery Pack
Product number: 34AQ067-01
Cell model：26650/3300mAh/3.2V
Battery specification: 26650/8S6P/19.8Ah/25.6V
Nominal voltage：25.6V
Nominal capacity：19.8Ah
Charging voltage: 29.2V
Charging current: ≤4A
Discharging current: 10A
Instant discharging current: 15A
End-off voltage: 20V
Internal resistance: ≤200mΩ
Battery weight: 5.6Kg
Product dimension: 198*157*162mm（±2mm）
Charging temperature：0～45℃
Discharging temperature: -20～60℃
Storage temperature: -20～35℃

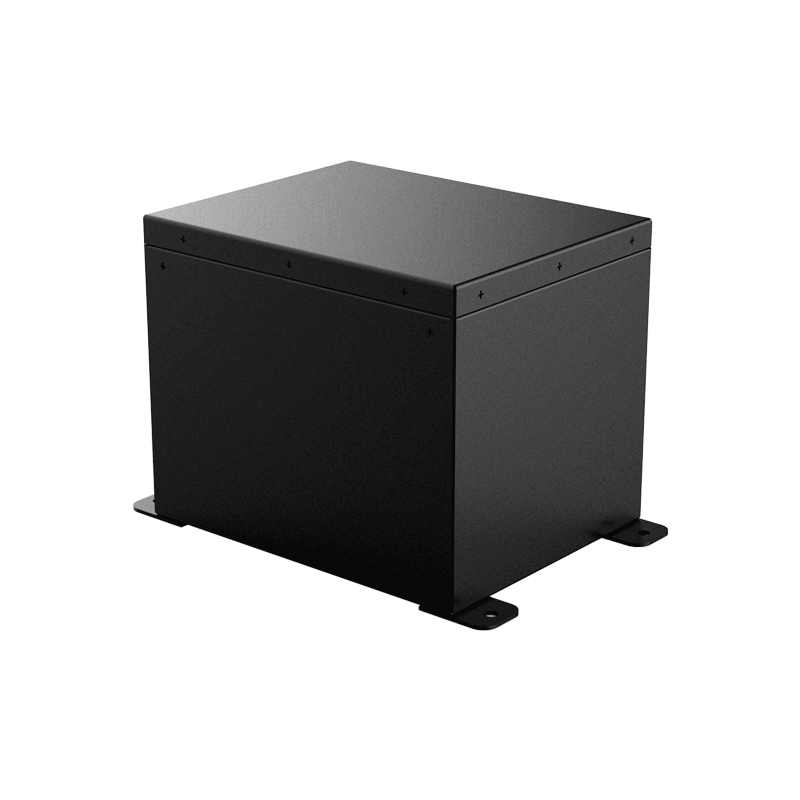

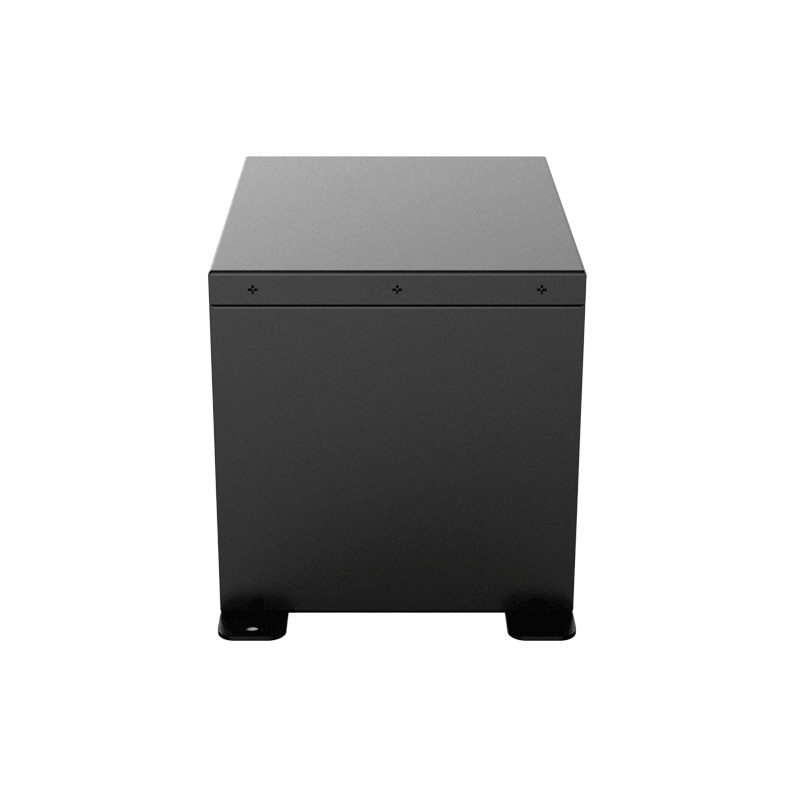

Battery case: metal plate, military industry
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, communication, etc.
Application field: backup power
Product features
1. Metal plate case increases reliability and immobility of battery.

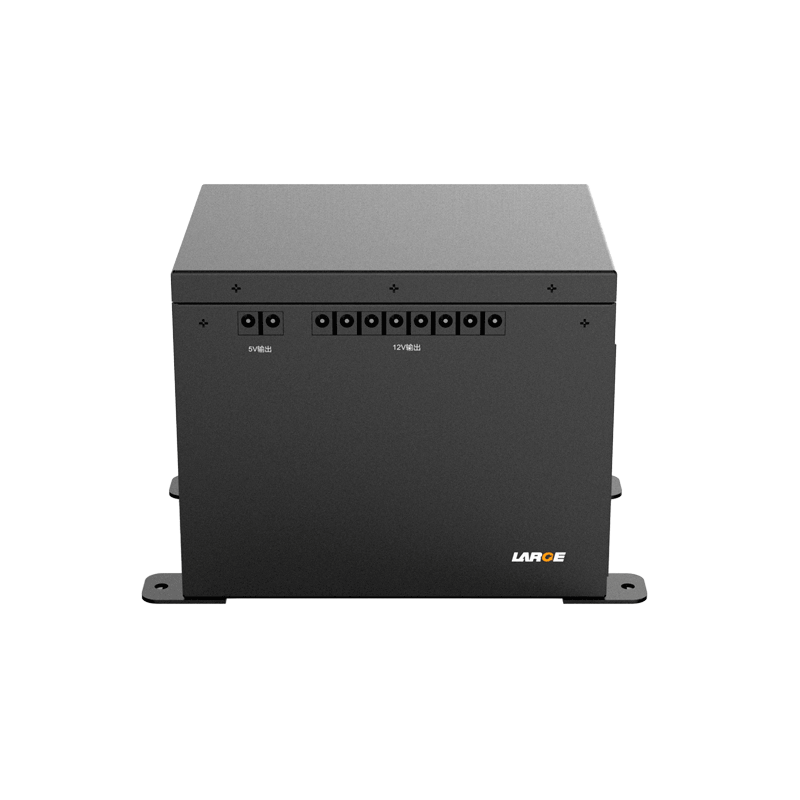

2. Output: The battery has 5V and 12V voltage regulator module, which can stabilize 5V and 12V DC output with LED display.
3. Data communication management: use imported software management chip, 485 communication function, accurate data transmission and precise temperature control, so as to eliminate security risks.
4. Battery characteristics: The battery has long life with 2000cycles, and can charge and discharge at large power.
5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
