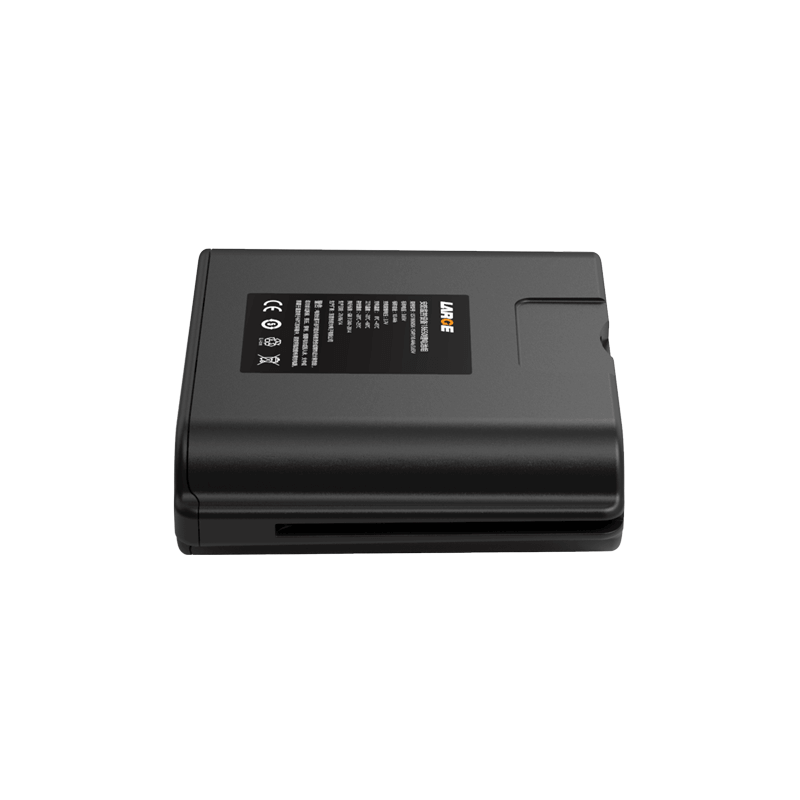

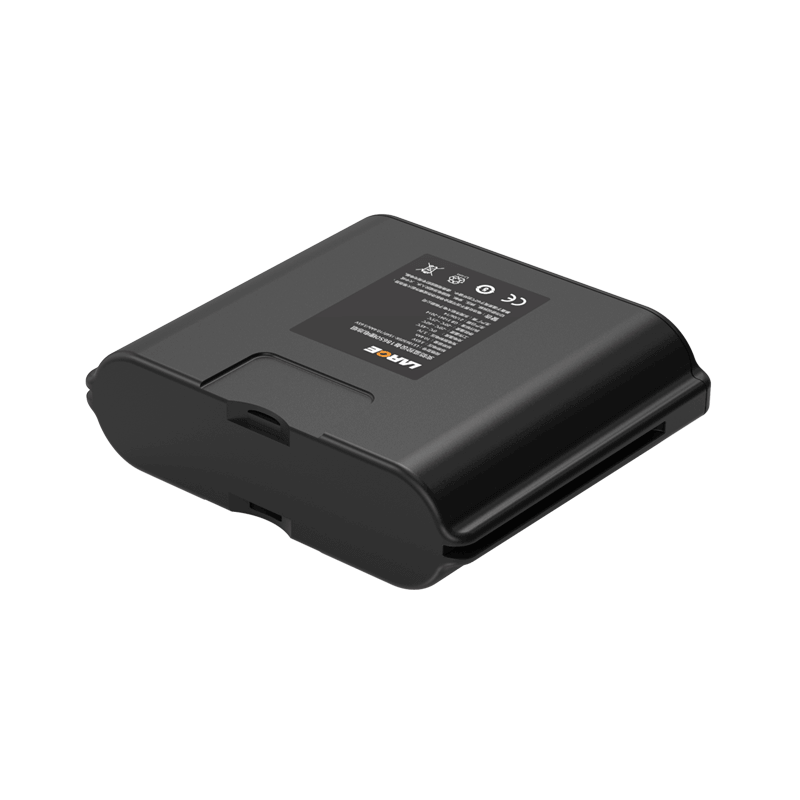

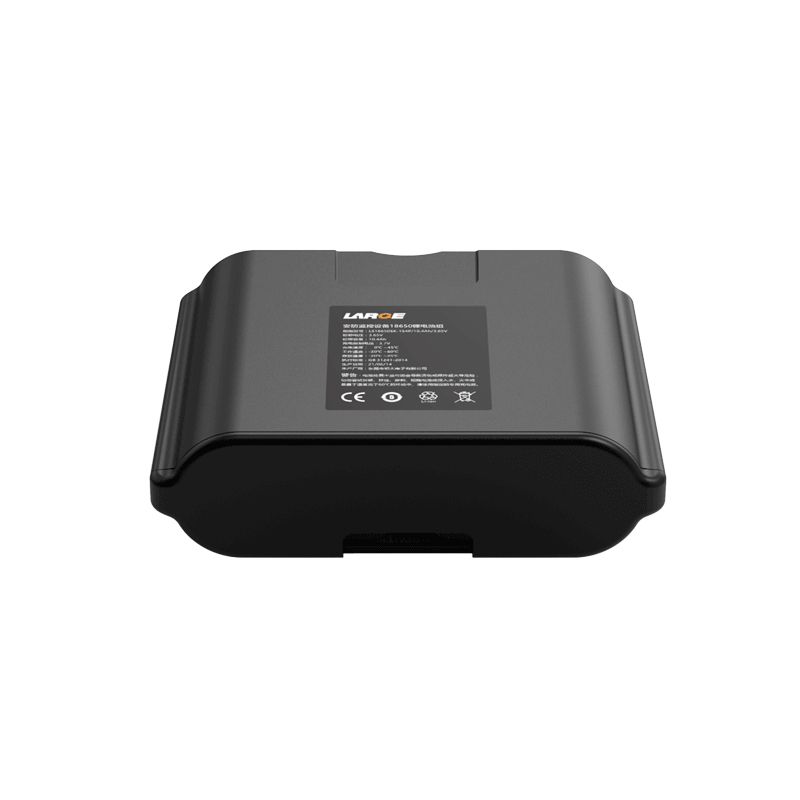

Custom Lithium ion Battery Pack
Project number: 01DQ0040-18
Cell model: LR18650SK/2600mAh/3.65V-LSV
Battery specification: LS18650SK-1S4P/ 10.4AH /3.65V
Nominal voltage: 3.7V
Nominal capacity: 10.4Ah
Charging voltage: 5V to 4.2V charging
Charging current: ≤ 2.5a
Discharge current: 3.0A
Instantaneous discharge current: 9A
Discharge cut-off voltage: 3.0V
Internal resistance: ≤250mΩ
Battery weight: 250g
Product dimension: 24.2*87.0*71.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: ABS+PC
Battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on
Application: Security monitoring
