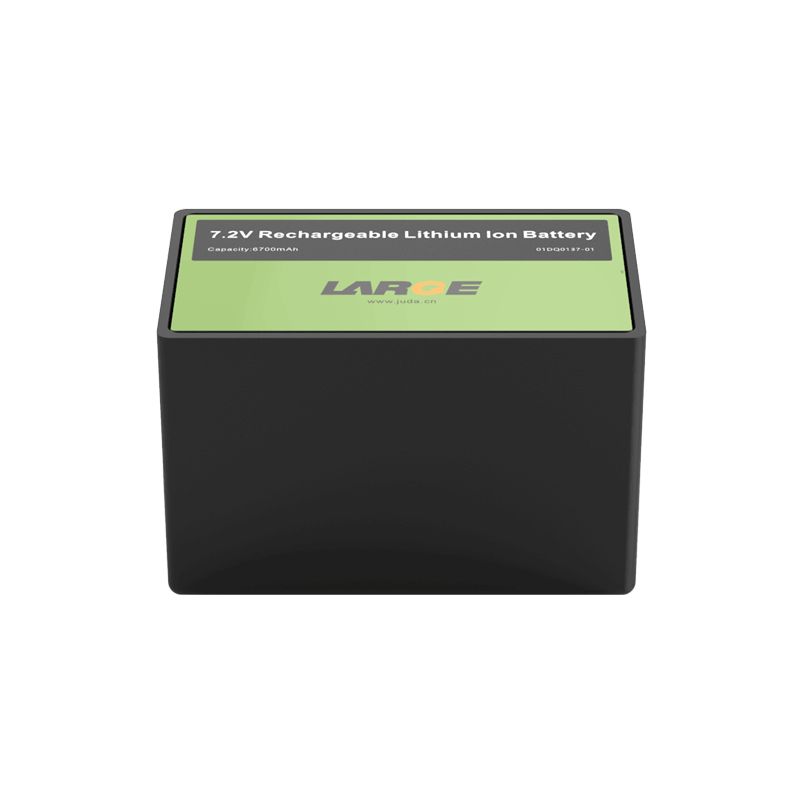

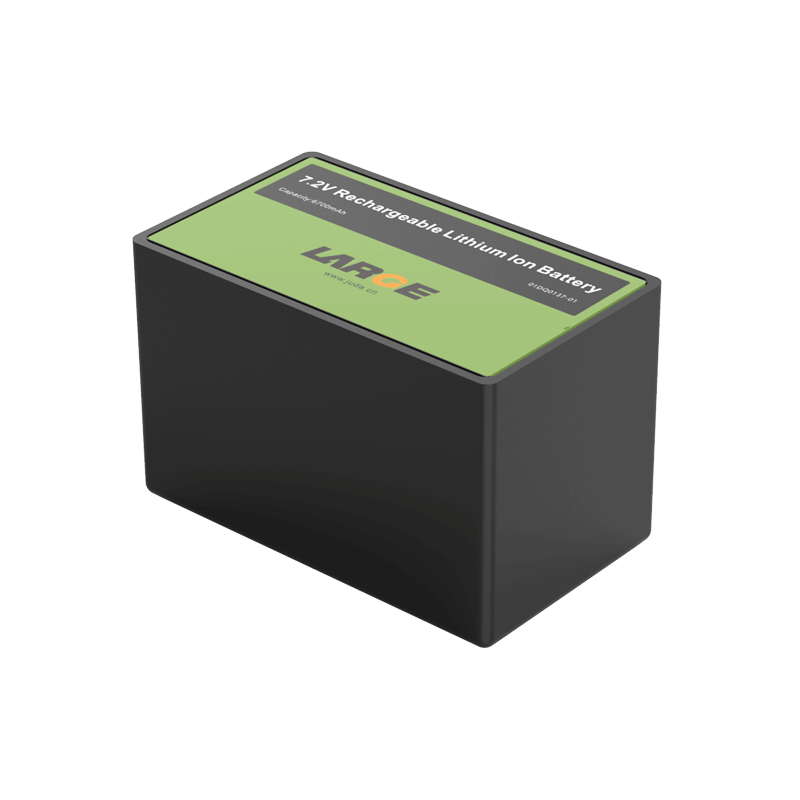

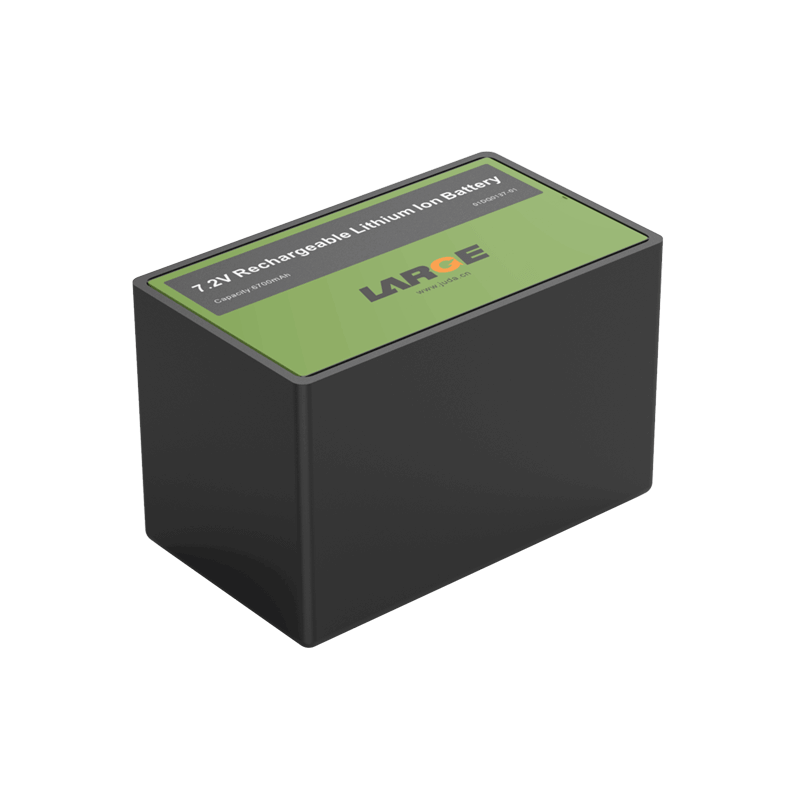

Custom Lithium ion Battery Pack
Project number: 01DQ0137-01
Cell model: 18650/3350mah /3.6V
Battery specification: LA18650EX-2S2P/6700mAh/7.2V
Nominal voltage: 7.2V
Nominal capacity: 6700mAh
Charging current: ≤ 2.3A
Discharge current: 2.3A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 6.0V
Product internal resistance: ≤200mΩ
Battery weight: 250G
Product size: 41.5*45.0*70.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ° C to 20 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: charging management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Gas testing equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
