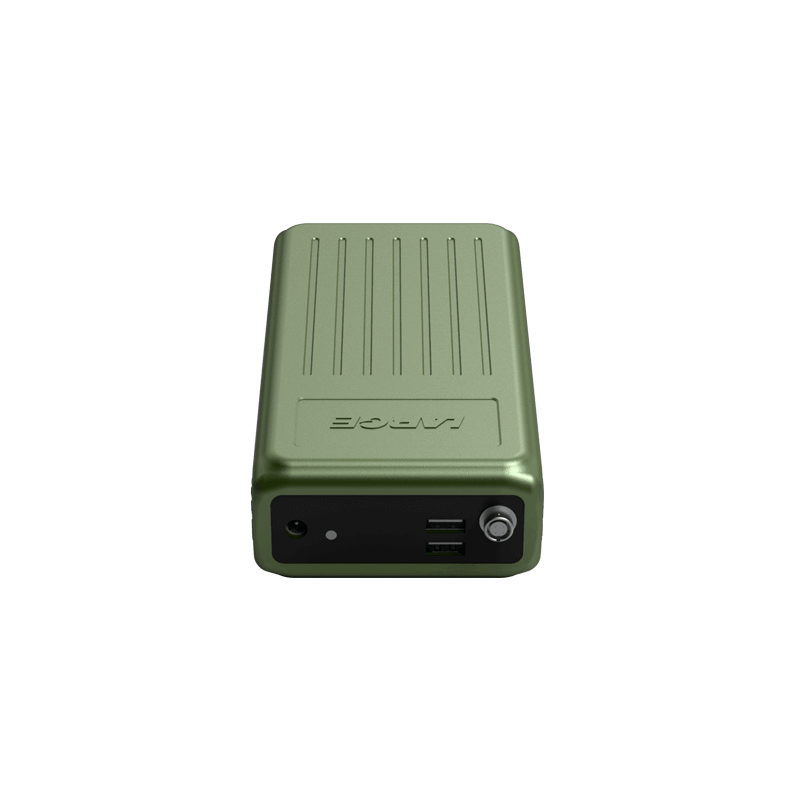

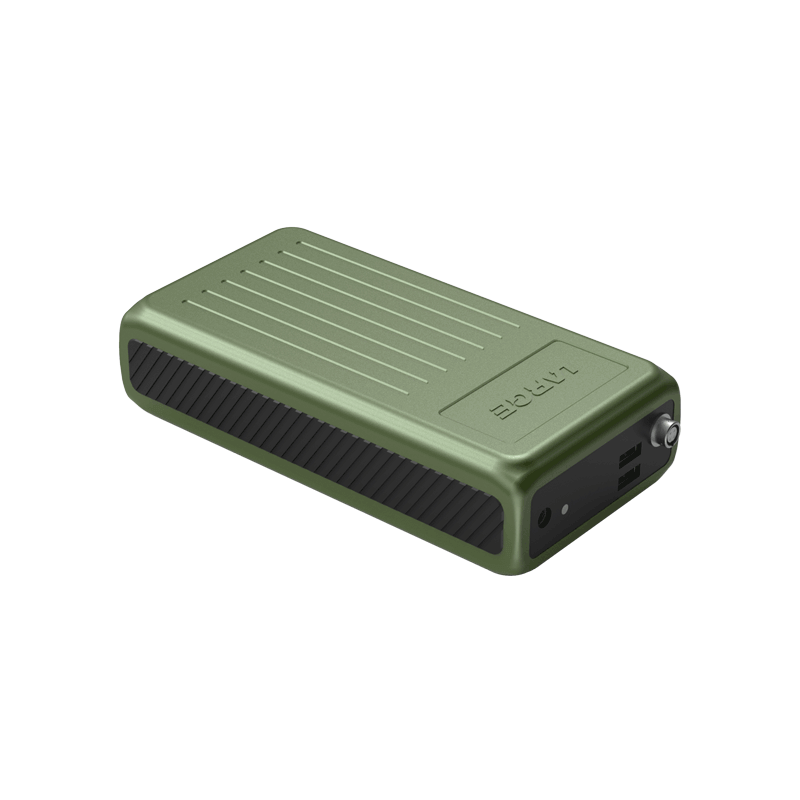

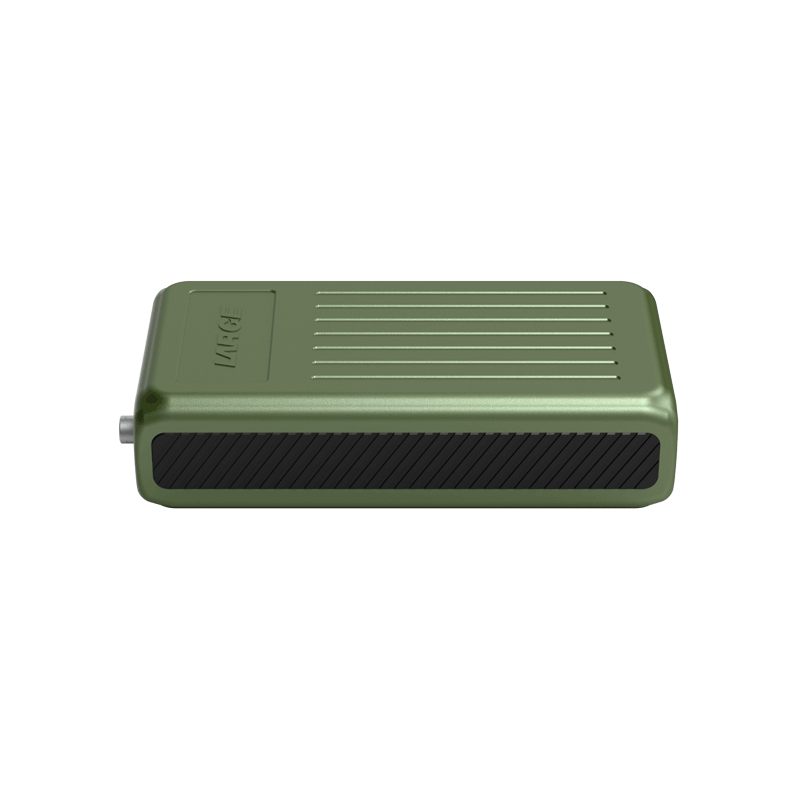

Custom Lithium ion Battery Pack
Project number: 05DQ0054-01
Cell model: INR18650-26A/2600mAh/3.6V
Battery specification: 18650-2S8P/ 20.8AH /7.26V
Nominal voltage: 7.2V
Nominal capacity: 20.8Ah
Charging voltage: 8.4V
Charging current: ≤3000A
Discharge current: 3.0A
Instantaneous discharge current: 3.0A
Discharge cut-off voltage: 5.0V
Internal resistance of finished product: ≤100mΩ
Battery weight: 1000G
Product dimension: 45*93.0*180mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: aluminum case
Intelligent lithium protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Emergency power supply, special equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
