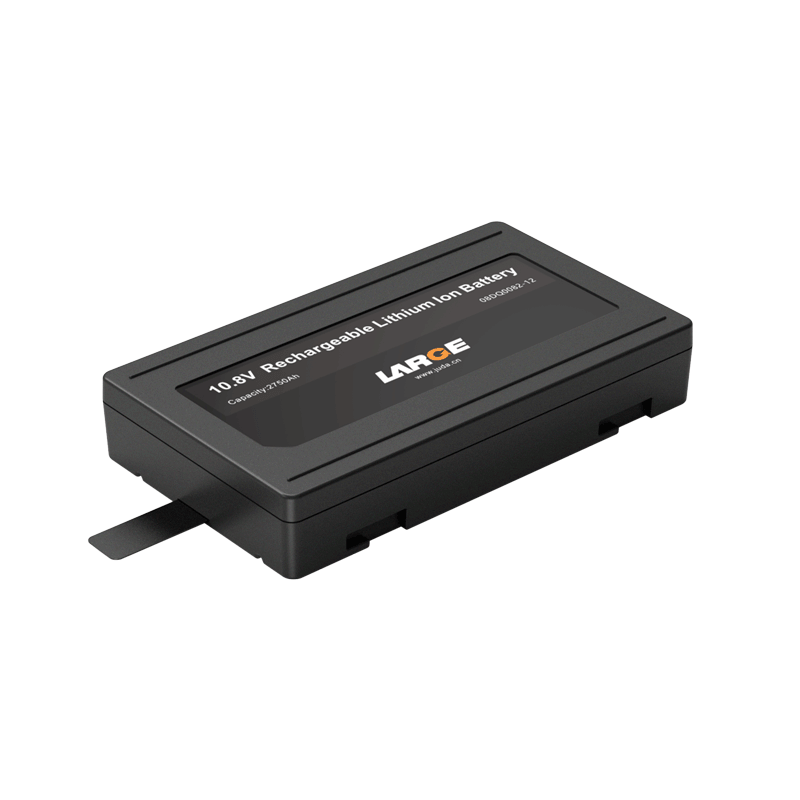

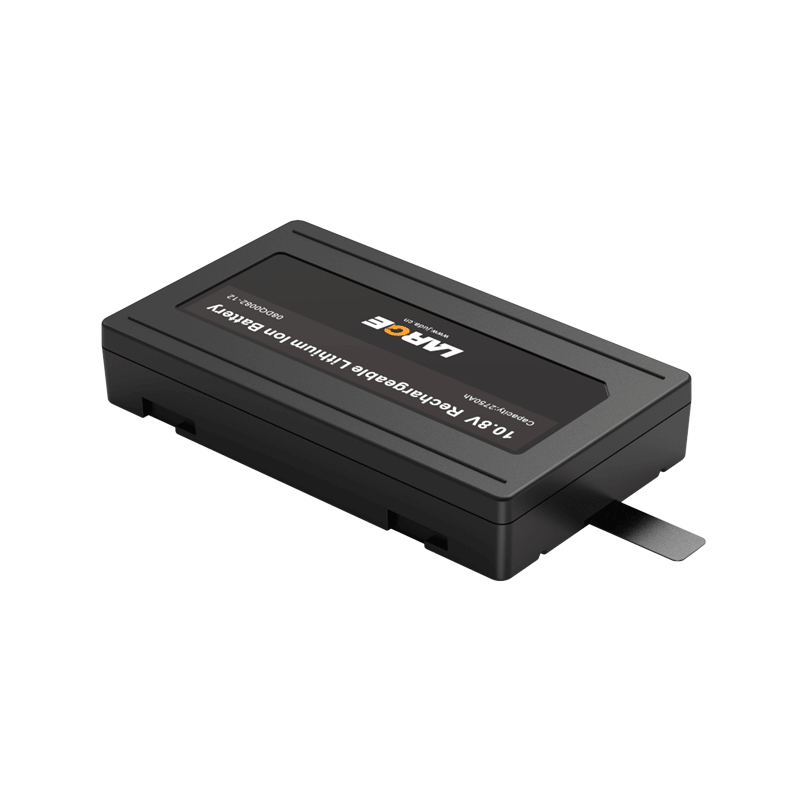

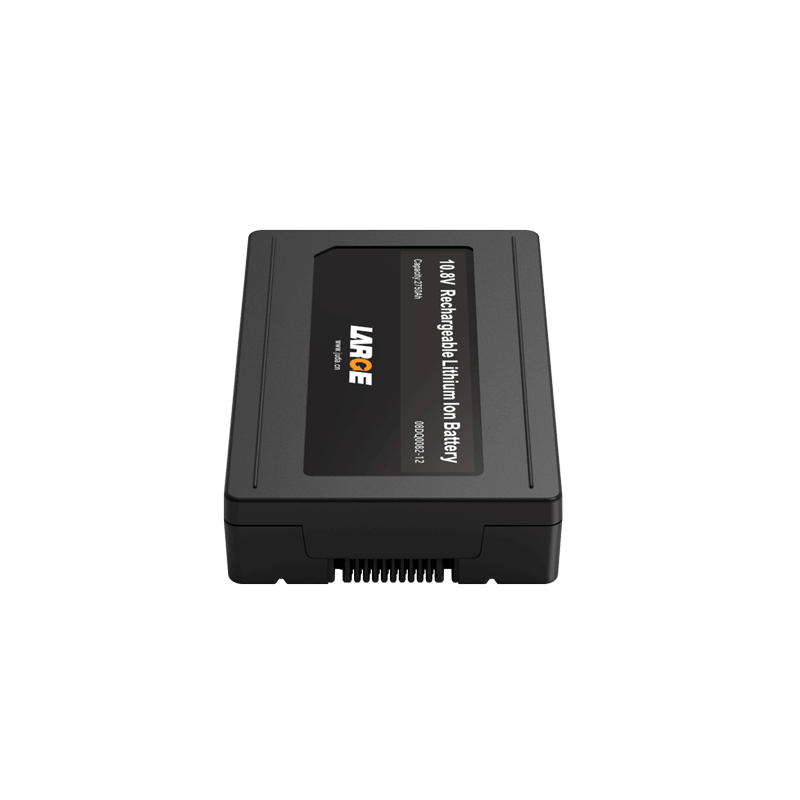

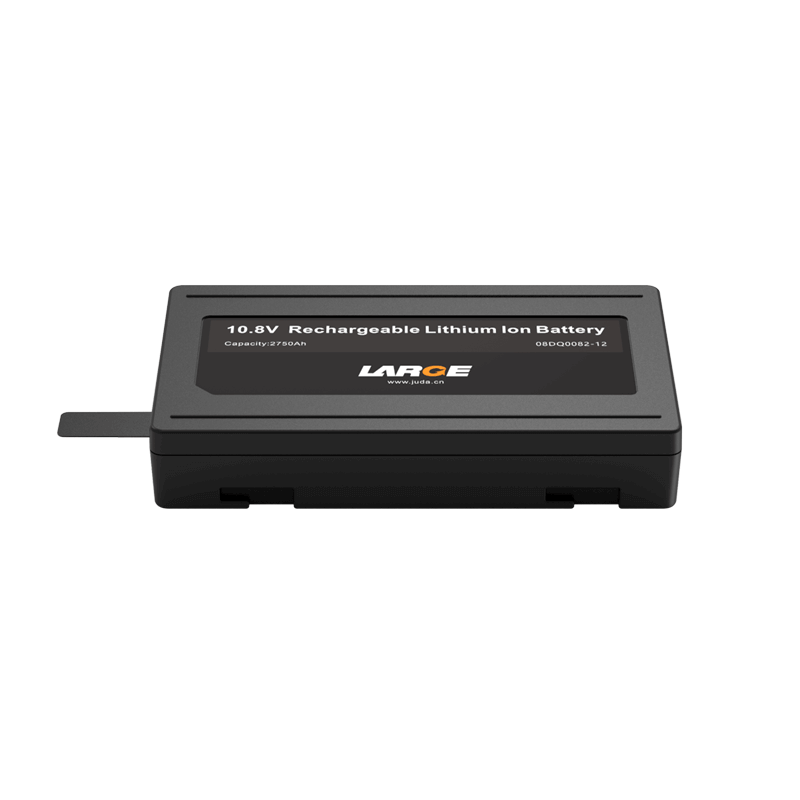

Custom Lithium ion Battery Pack
Project number: 08DQ0082-12
Cell model: INR18650-29E/2750mAh/3.65V-SDI
Battery specification: 18650-3S1P/2750mAh/10.95V
Nominal voltage: 10.8V
Nominal capacity: 2750mAh
Charging voltage: 12.6V
Charging current: ≤2.75A
Discharge current: 2.75A
Instantaneous discharge current: 8.25A
Discharge cut-off voltage: 8.52V
Internal resistance: ≤250mΩ
Battery weight: 310g
Product dimension: 23.0*75*130mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: ventilator, medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
