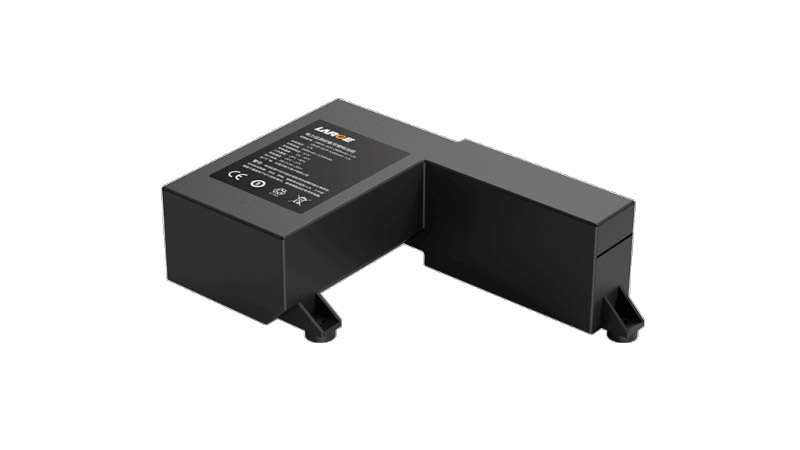

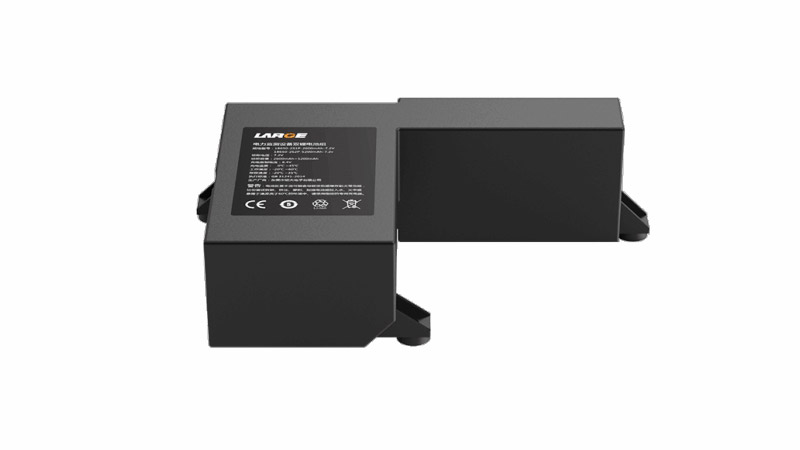

Dual lithium battery packs for power monitoring equipment
Product Number: 34AQ018-12
Cell model: 18650-2600mAh-3.6V
Battery specifications: 18650-2S1P-2600mAh-7.2V+18650-2S2P-5200mAh-7.2v
Product dimensions: 124×91.7×40.8mm
Nominal voltage: 7.2V
Nominal capacity: 2600mAh+5200mAh
Charging voltage: 8.4V
Charging current: ≤1.0A
Discharge current: ≤2.5A
Discharge cut-off voltage: 5.6V
Finished product internal resistance: ≤280mΩ
Battery weight: 350g
Charging temperature: 0-45℃
Discharge temperature: -20 to 60℃
Storage temperature: -20 to 35℃
Battery packaging: Engineering plastic ABS+PC
Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
Application fields: Power detection equipment, detection instrument and equipment fields
The ABS+PC casing enhances the reliability and firmness of the battery
Connector plug output end: JST plug output method is adopted, and the mating increases the reliability of electrical conduction.
Battery management: Equipped with imported protection chips: featuring high stability, high-precision monitoring, precise control, and ESD protection, it eliminates potential safety hazards to the greatest extent
The battery pack is safe, has good discharge performance and a long cycle life.
The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
