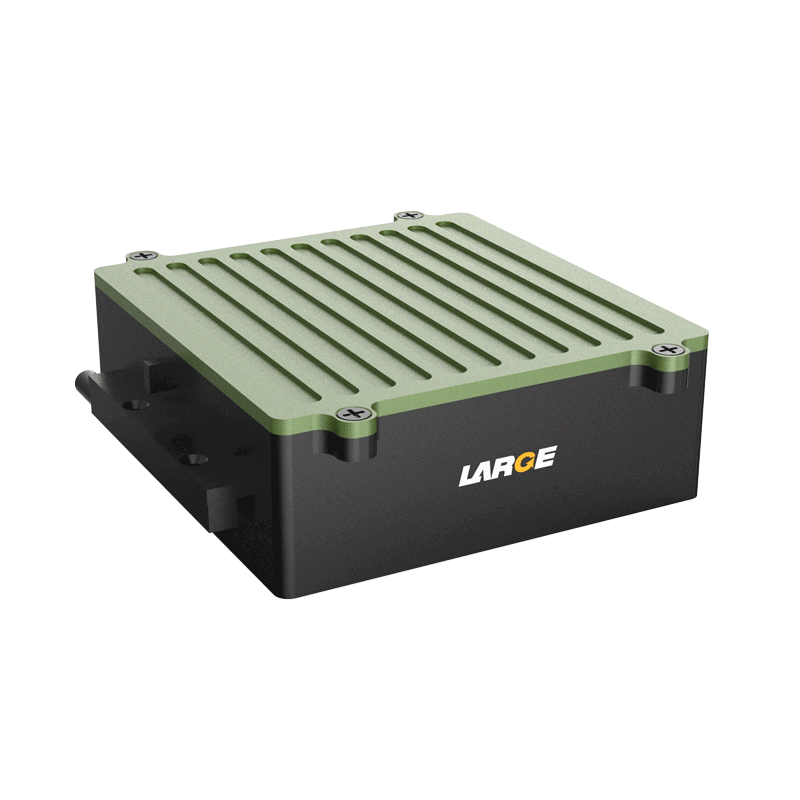

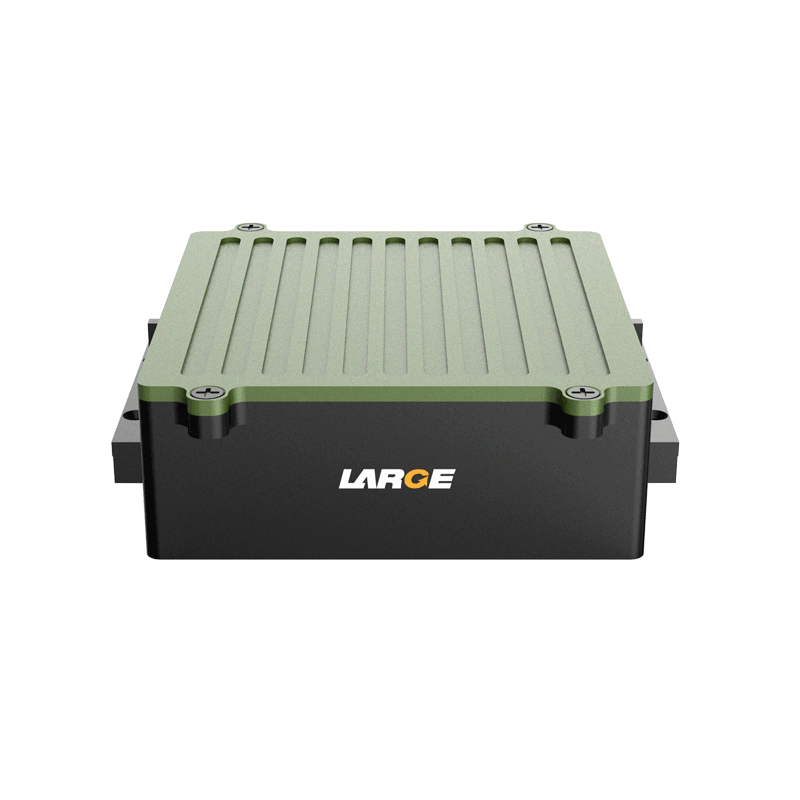

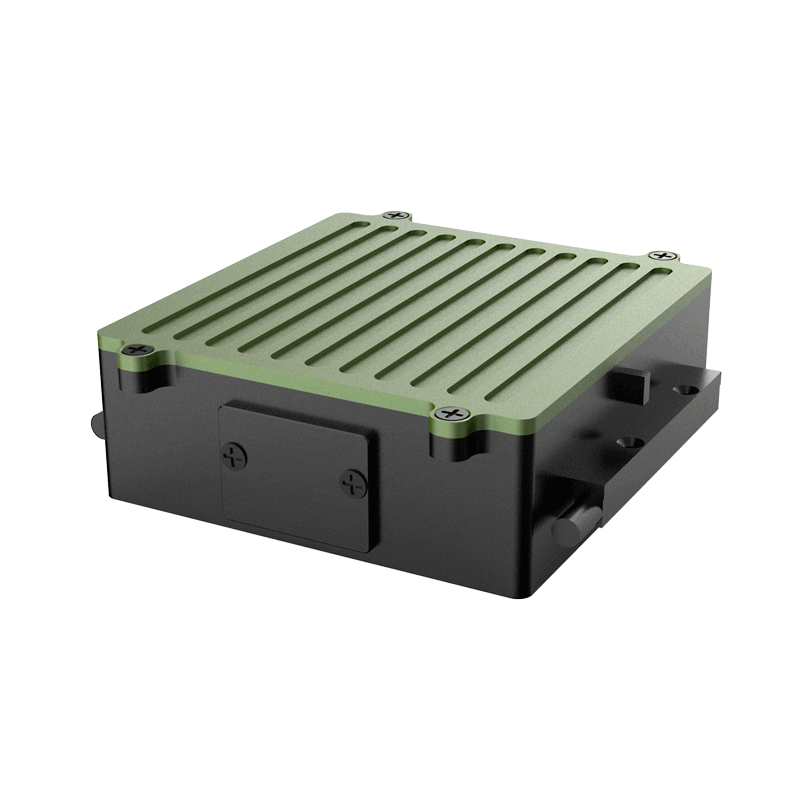

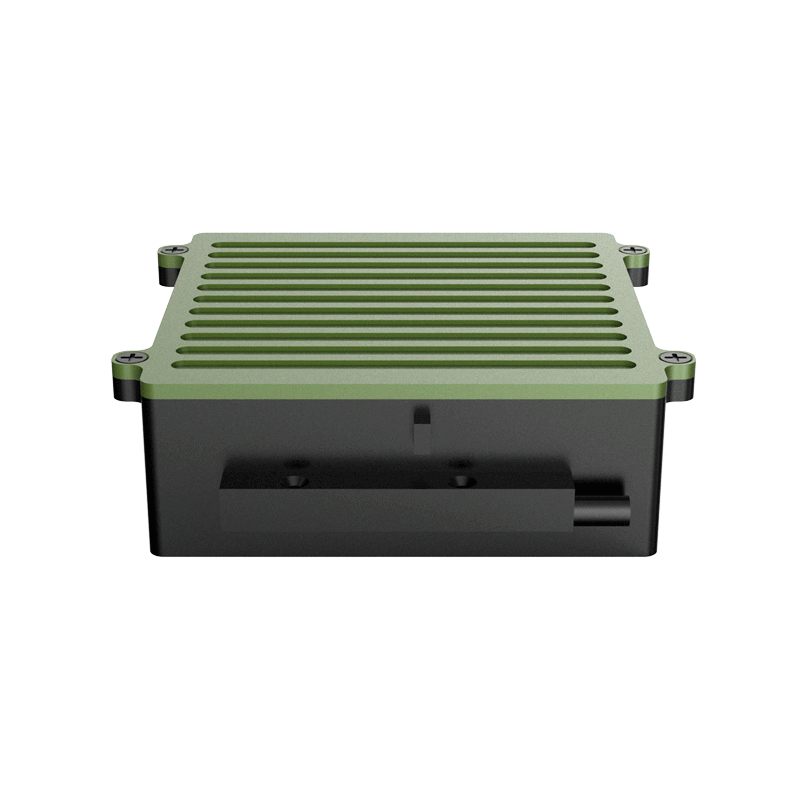

14.8V 1700mAh Low Temperature Lithium Polymer Battery
-40℃ Discharge, For Backup Instrument
- Product Number: 35AQ430-01
- Nominal voltage: 14.8V
- Nominal capacity: 1700mAh
- Battery size: 63*64.5*23.5(±0.2,mm)
- Charging temperature: 0-45℃
- Discharge temperature: -40 to 55℃
- Application fields: Backup batteries for instruments, special equipment
- Project Number: 35AQ430-01
- Battery cell model: LA505855CL/1700mAh/3.7V
- Battery specification: LA505855CL-4S1P/14.8V/1700mAh
- Nominal voltage: 14.8V
- Nominal capacity: 1700mAh
- Charging voltage: 16.8V
- Charging current: ≤1.6A
- Discharge current: 1.6A
- Instantaneous discharge current: 1.6A
- Discharge cut-off voltage: 10V
- Finished product internal resistance: ≤250mΩ
- Battery weight: 200g
- Product size: 63*64.5*23.5(±0.2,mm)
- Charging temperature: 0-45℃
- Discharge temperature: -40 to 55℃
- Storage temperature: -20 to 25℃
- Battery packaging: Aluminum alloy 5A06 H112, with black anodic oxidation treatment on both the inner and outer surfaces
- Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, SMBus communication, etc
- Application fields: Backup batteries for instruments, special equipment
- Low self-consumption of power
- Intelligent electricity meter, SMBus communication
- The battery pack is safe and has a long cycle life.
- The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
- The product performs well in discharging electricity under low-temperature conditions.
- The product design refers to RTCA DO-311 2008.
