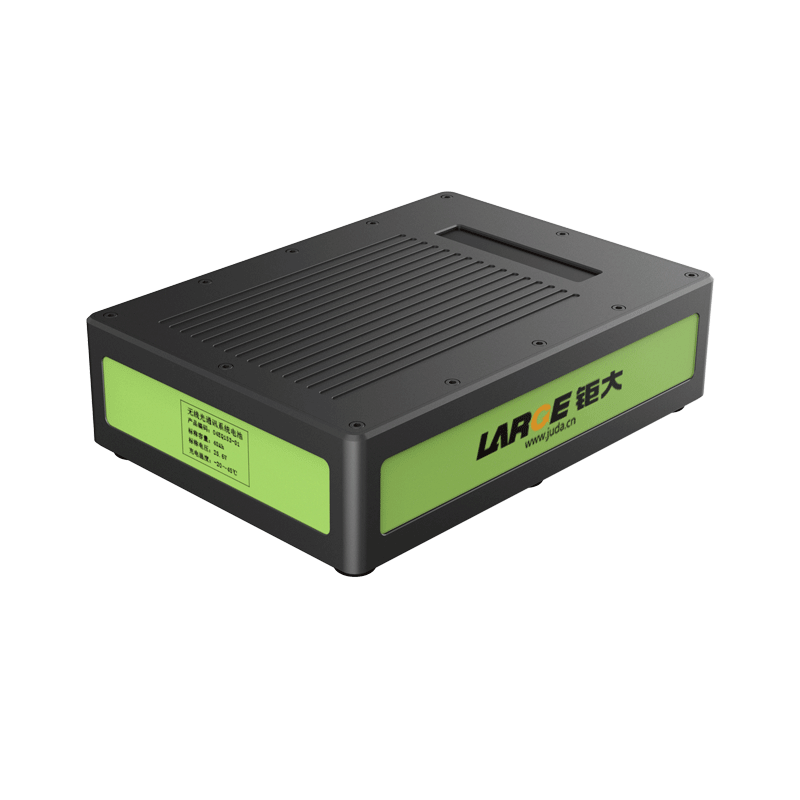

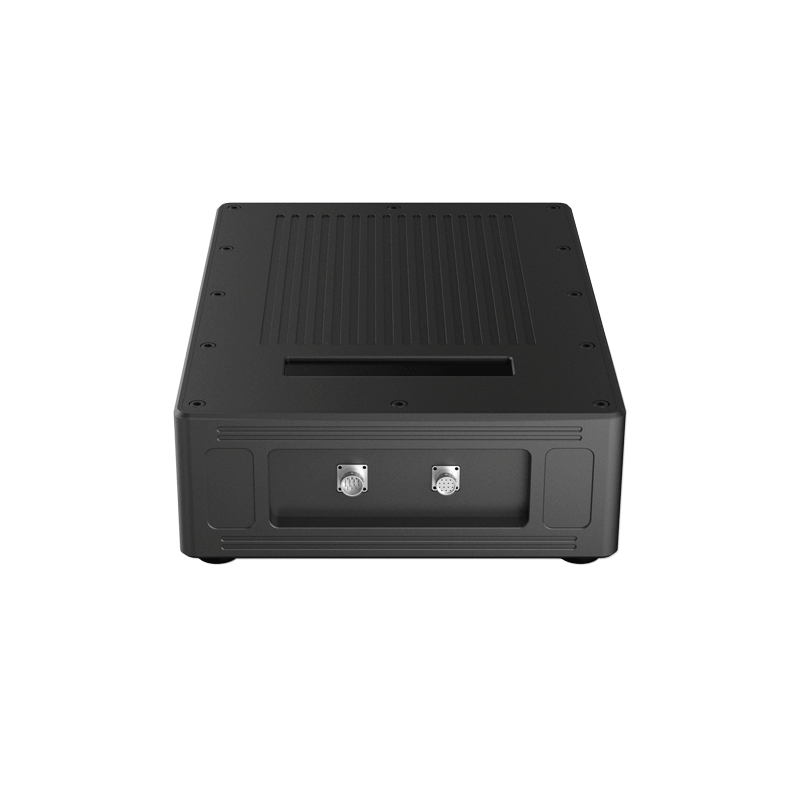

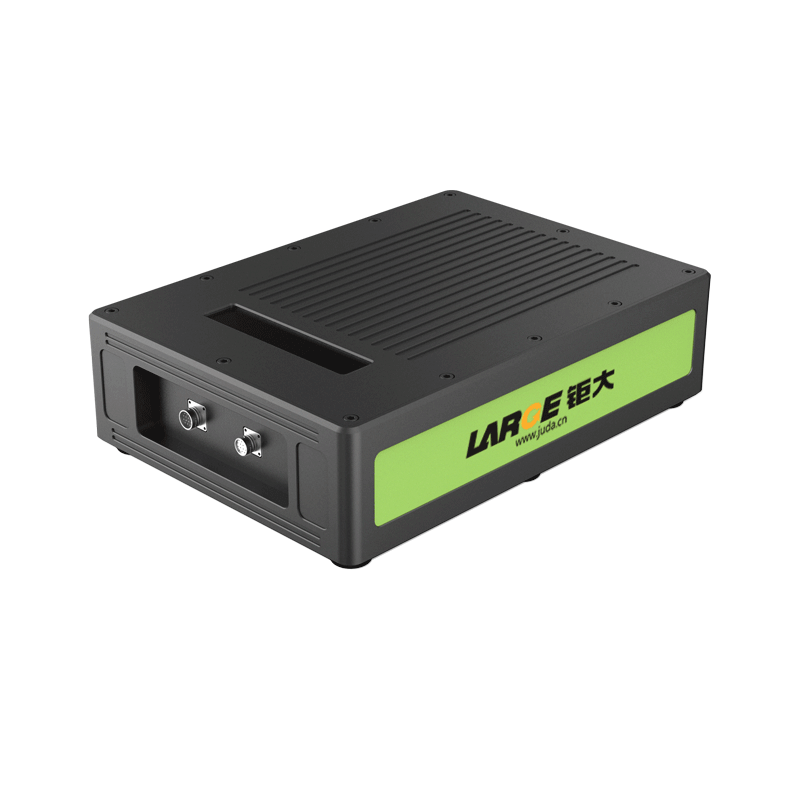

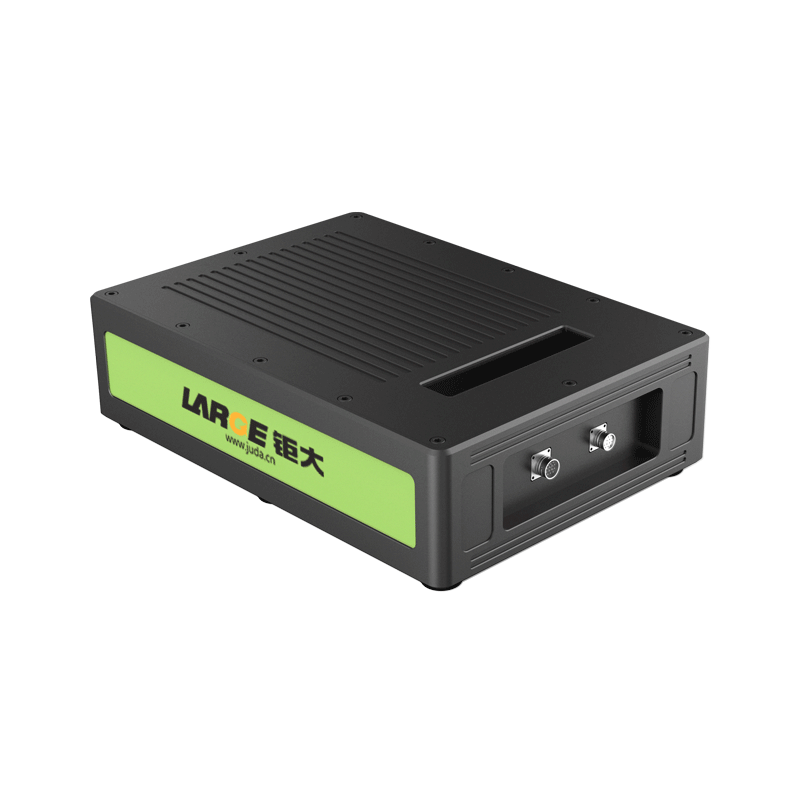

25.6V 40000mAh Low Temperature LiFePO4 Battery
For Wireless Optical Communication System, with RS485 Communication
- Product Number: 04EQ153-01
- Nominal voltage: 25.6V
- Nominal capacity: 40,000 mah
- Battery size: 350×270×120 (Max)
- Charging temperature: -20 to 45℃
- Discharge temperature: -40 to 60℃
- Application fields: Wireless optical communication, special communication
- Product Number: 04EQ153-01
- Battery cell model: L148F20C/3.2V/20Ah
- Battery specification: L148F20C/8S2P/25.6V/40Ah
- Nominal voltage: 25.6V
- Nominal capacity: 40Ah
- Charging voltage: 29.2V
- Charging current: ≤20A
- Discharge current: 8A
- Instantaneous discharge current: 40A
- Discharge cut-off voltage: 20V
- Finished product internal resistance: ≤200mΩ
- Battery weight: 12Kg
- Product size: 350×270×120 (Max)
- Charging temperature: -20 to 45℃
- Discharge temperature: -40 to 60℃
- Storage temperature: -20 to 40℃
- Battery casing: Aluminum alloy
- Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, balancing, etc
- Application fields: Wireless optical communication, special communication
- Dust-proof and shock-resistant: Through an aluminum alloy shell and an internal shock-resistant structure, it achieves dust-proof and shock-resistant performance.
- Waterproof connector: Waterproof connectors are adopted, which are safe and reliable.
- The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
- It can operate at ultra-low temperatures and discharge in an environment as low as minus 40 degrees.
- It is equipped with a display screen to show real-time information such as current, voltage and power consumption.
