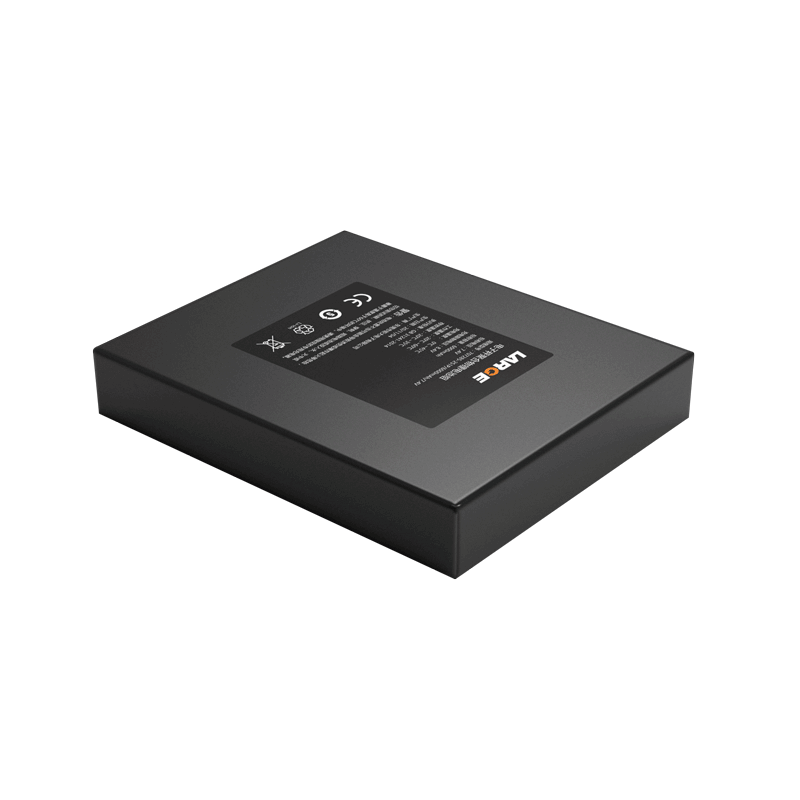

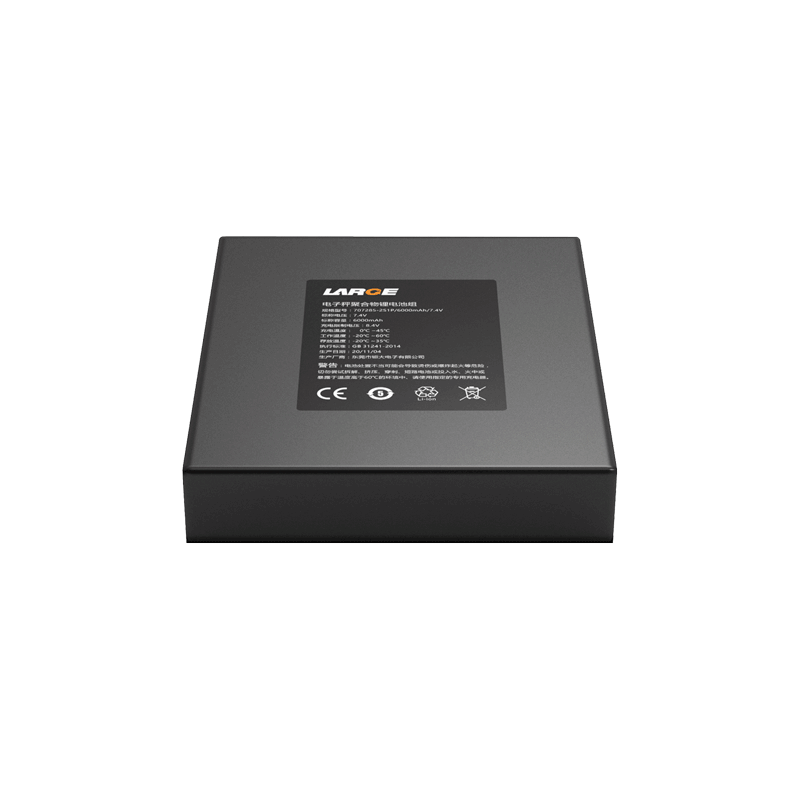

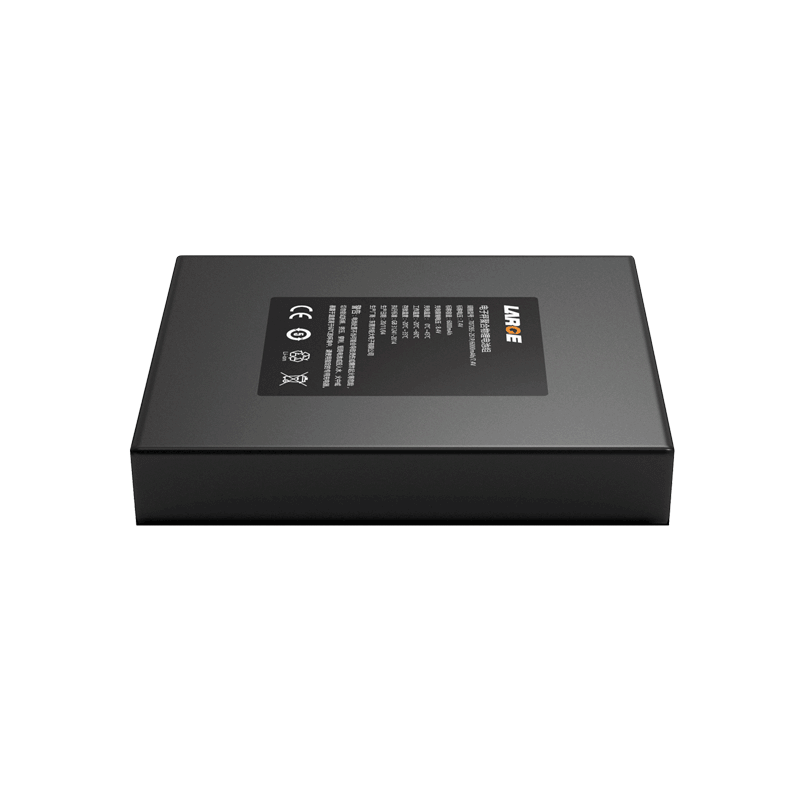

7.4V 6000mAh polymer lithium battery pack for electronic scale

Product Number: 03DQ0098-02

Battery cell model: 707285-6000mAh-3.7V

Battery specification: 707285-2S1P/6000mAh/7.4V

Product dimensions: 88.5×72.5×14.7mm (Max)

Nominal voltage: 7.4V

Nominal capacity: 6000mAh

Charging voltage: 8.4V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 6.0V

Finished product internal resistance: ≤200mΩ

Battery weight: 195g

Charging temperature: 0-45℃

Discharge temperature: -20 to 60℃

Storage temperature: -20 to 35℃

Battery packaging: Blue PVC heat shrink film packaging

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc

Application fields: Electronic scale equipment, portable device field
