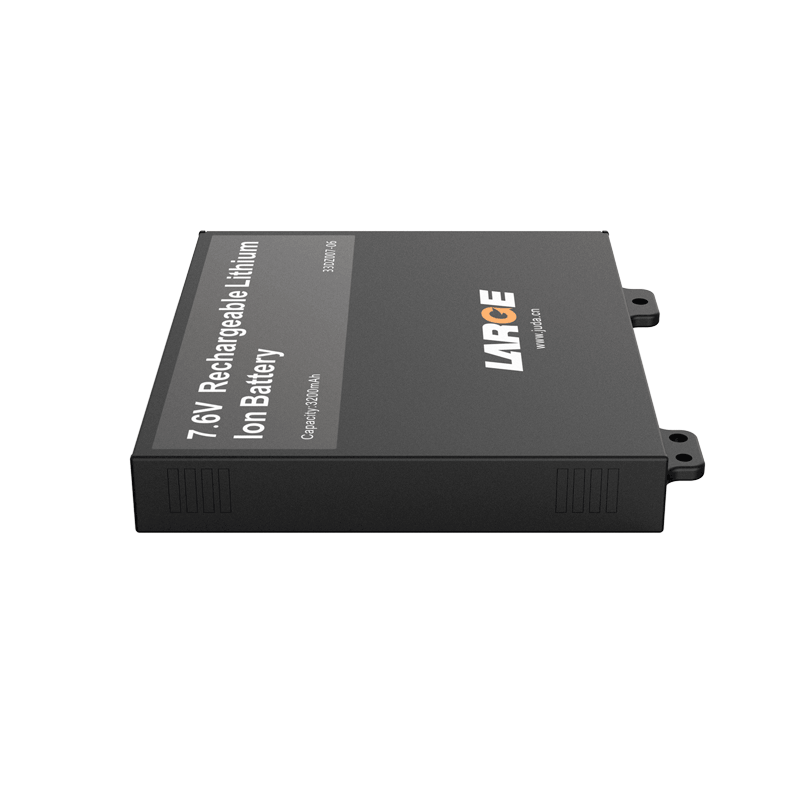

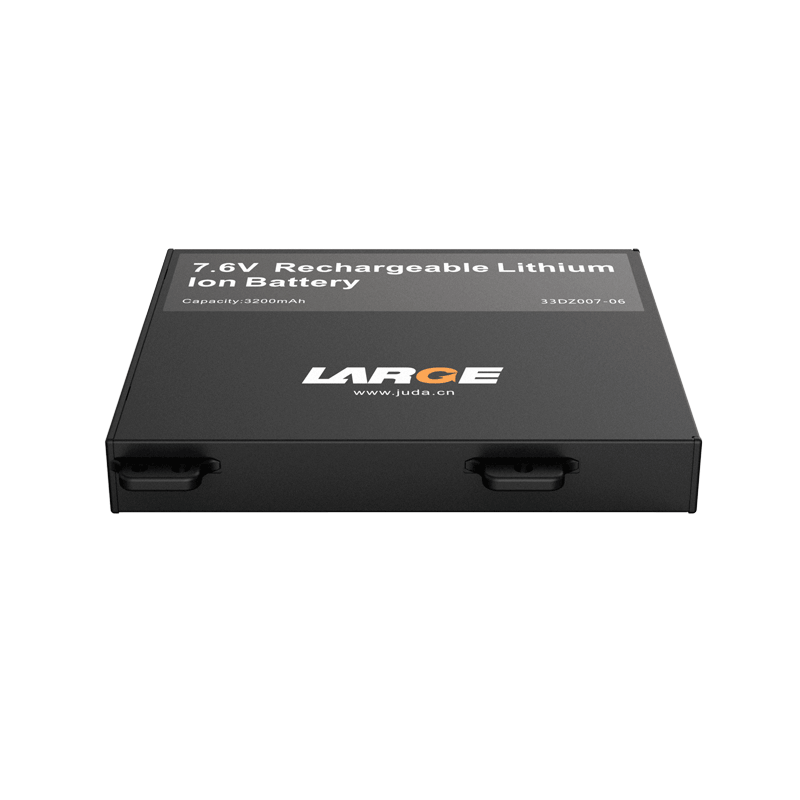

7.6V 3.2Ah LA486068 handheld flat polymer lithium battery pack

Product Number: 33DZ007-06

Battery cell model: LA486068/3200mAh/3.80V

Battery specification: LA486068-1S1P/7.6V/3200mAh

Nominal voltage: 7.6V

Nominal capacity: 3.2Ah

Charging voltage: 8.7V

Charging current: ≤1.6A

Discharge current: 3A

Instantaneous discharge current: 3.2A

Discharge cut-off voltage: 6V

Finished product internal resistance: ≤150mΩ

Battery weight: 300g

Product size: 73*68.5*10.5? mm (L*W*H

Charging temperature: 0-45℃

Discharge temperature: -10 to 55℃

Storage temperature: -20 to 45℃

Battery housing: Industrial grade

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, equalization, with IIC communication, etc

Application field: Handheld tablet category

Product features

Current: Maximum sustainable discharge of 3.2A.

Data communication management: Utilizing imported software management chips and IIC communication functions, it ensures precise data transmission and accurate temperature control, eliminating potential safety hazards to the greatest extent.

Cell characteristics: It adopts self-developed ultra-high capacity polymer cells.

The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
