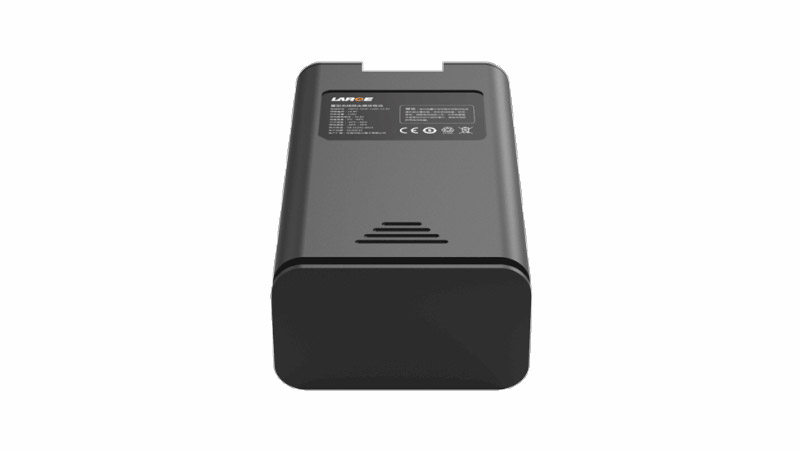

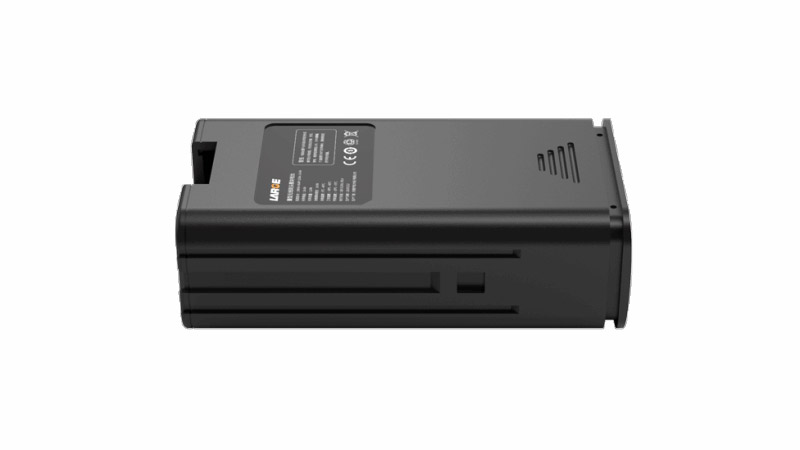

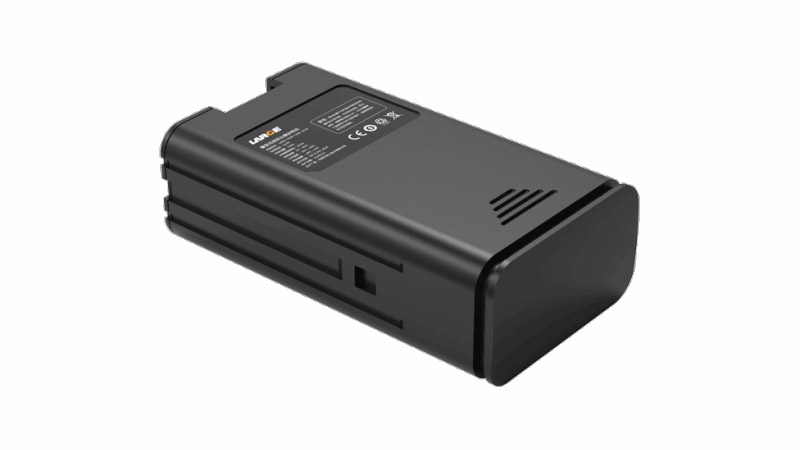

Lithium battery for infrared thermal imager

Product Number: 36AQ517-05

Cell model: 18650-3350mAh-3.6V

Battery specifications: 18650/1S2P/6600mAh/3.6V

Product dimensions: 81.25*44*25mm

Nominal voltage: 3.6V

Nominal capacity: 6600mAh

Finished product internal resistance: ≤180mΩ

Charging voltage: 4.2V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 3.0V

Battery weight: 120g

Charging temperature: 0-45℃

Discharge temperature: -20 to 60℃

Storage temperature: -20 to 35℃

Battery packaging: Engineering plastic ABS+PC

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc
